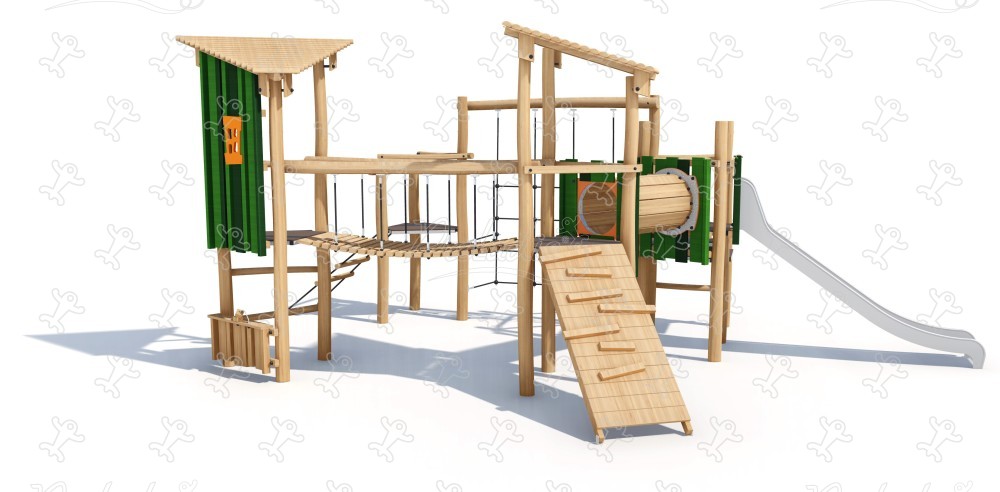

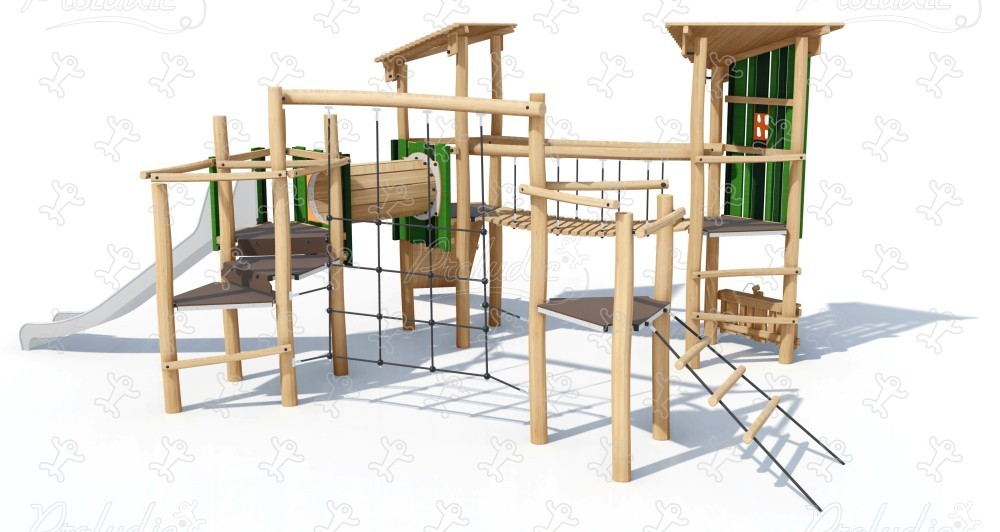

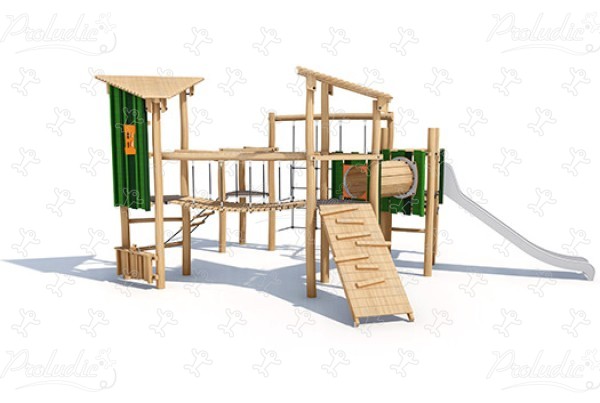

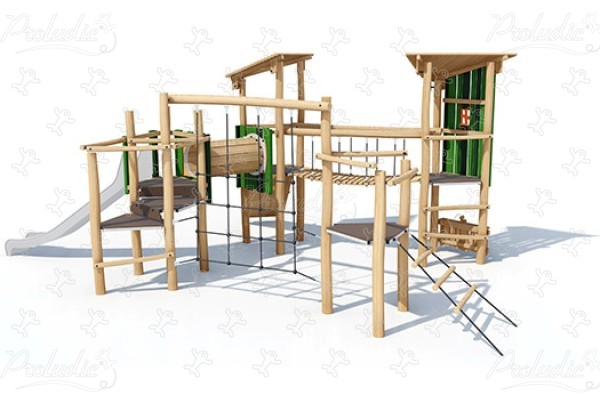

We have created the reference J4947-V in our "Multi play structures" range. This play equipment is accessible from 3 years. It can accommodate up to 34 users.

The size of the module is: 7.29 m length, 8.00 m width, 3.33 m. high. The free fall height (FFH) is 1.70 m.

Other finishes available

29 play functions

role play
Role play x5
Role plays promote the child's intellectual and social skills.
sliding
Sliding x1
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x7
By playing together, children learn how to interact with other personalities and behaviors.
handling
Handling x1
A great exercise for developing motor skills and abilities in young children while having fun.
crawling
Crawling x1
Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.
hiding
Hiding x1
Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.
balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
taking shelter
Taking shelter x2
A refuge where the children can take shelter ensures that children have their own space.
climbing
Climbing x5
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
getting across
Getting across x3
 Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.
tactile stimulation
Tactile stimulation x1
Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.
visual stimulation
Visual stimulation x1
It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.
Show more

Specifications

Age range: 3+
Number of users: 34 users
FFH : 1.70 m
Size: 7.29 x 8.00 x 3.33 m

Equipment installation

Number of installers: 2
Installation time: 20:00:00
Concrete volume: 0.20 m3
Surface: 72.00 m2
Total weight: 1229.08 kg
Weight of the heaviest element: 57.68 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

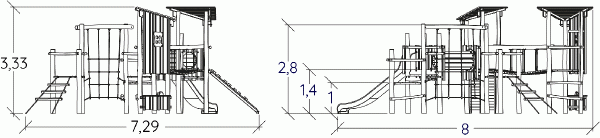

Side view
Side view

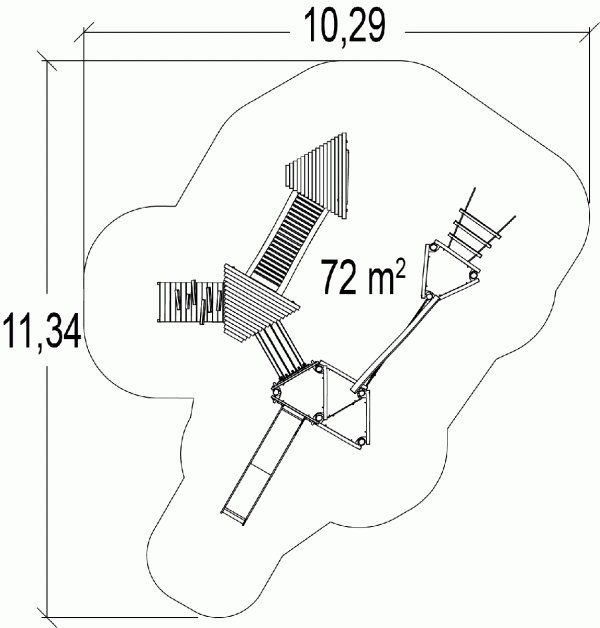

View from above
View from above

Materials

The different posts

The different posts (60 to 80mm / 100 to 120mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally... rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

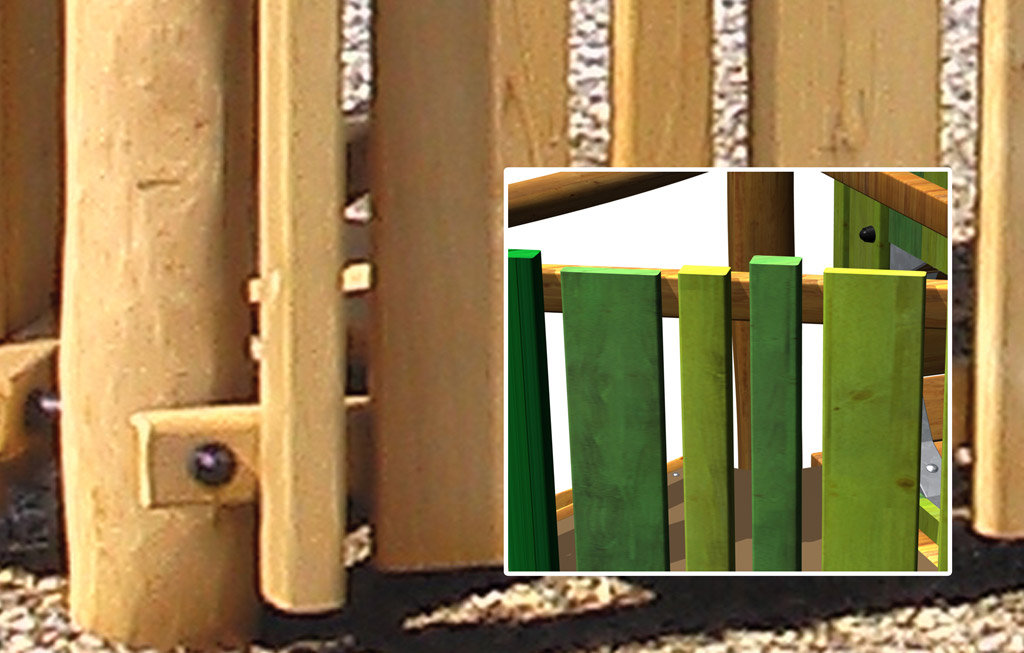

The panels, the climbing wall, the gangway, the shelf and the tunnel

The panels, the climbing wall, the gangway, the shelf and the tunnel are made from larch (plank sizes 140 x 27mm / 45 x 68mm). Larch is naturally resistant and long lasting. The panels are coloured (shades of green)... using a staining process. Read more

The roofs

The roofs are made from larch logs (80 x 40 mm).

The platforms

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more

The slides

The slides are made of stainless steel.

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The chains

The chains are made of stainless steel.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
