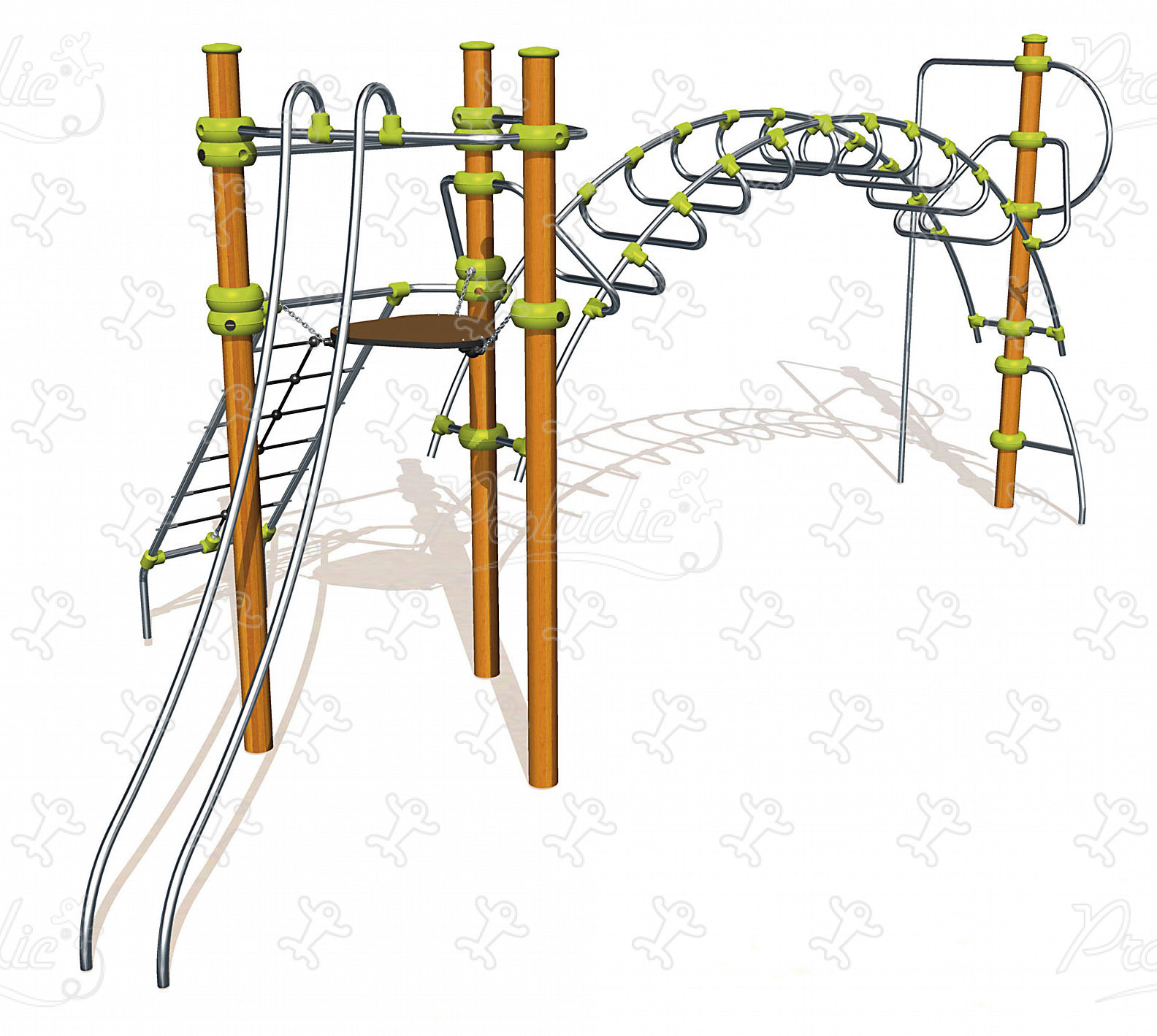

We have created the reference J2535 in our "Ixo" range. This module is accessible from 8 years. It can accommodate up to 14 users.
The size of the module is: 7.43 m wide, 2.99 m. deep, 3.00 m. high. The free fall height (FFH) is 2.40 m.
9 play functions
Sliding
x2
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
Climbing
x3
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
Meeting
x1
By playing together, children learn how to interact with other personalities and behaviors.
Balancing
x1
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
Hanging
x1
This fun activity allows you to explore a new way of playing, of managing space and the void below.
Getting across
x1
Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.
Specifications
| Age range: | 8+ |
| Number of users: | 14 users |
| FFH : | 2.40 m |
| Size: | 7.43 x 2.99 x 3.00 m |
Equipment installation
| Number of installers: | 2 |
| Installation time: | 16:00:00 |
| Concrete volume: | 0.40 m3 |
| Surface: | 58.00 m2 |
| Total weight: | 291.72 kg |
| Weight of the heaviest element: | 54.21 kg |
Certification
The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification
- JXXXX TÜV certification
- JXXXX* Proludic Certification
Other finishes
Materials
The 125mm round posts are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The caps are made of injection moulded polyamide. Read more
Injection moulded polyamide fixings connect the posts with the platforms and the various play features.
The tubes are made of of 40mm, 60mm and 101.6mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipement both strong and vandal resistant. Read more
The platform is made from a 12.5mm thick textured and non-slip compact material (HPL).
The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
