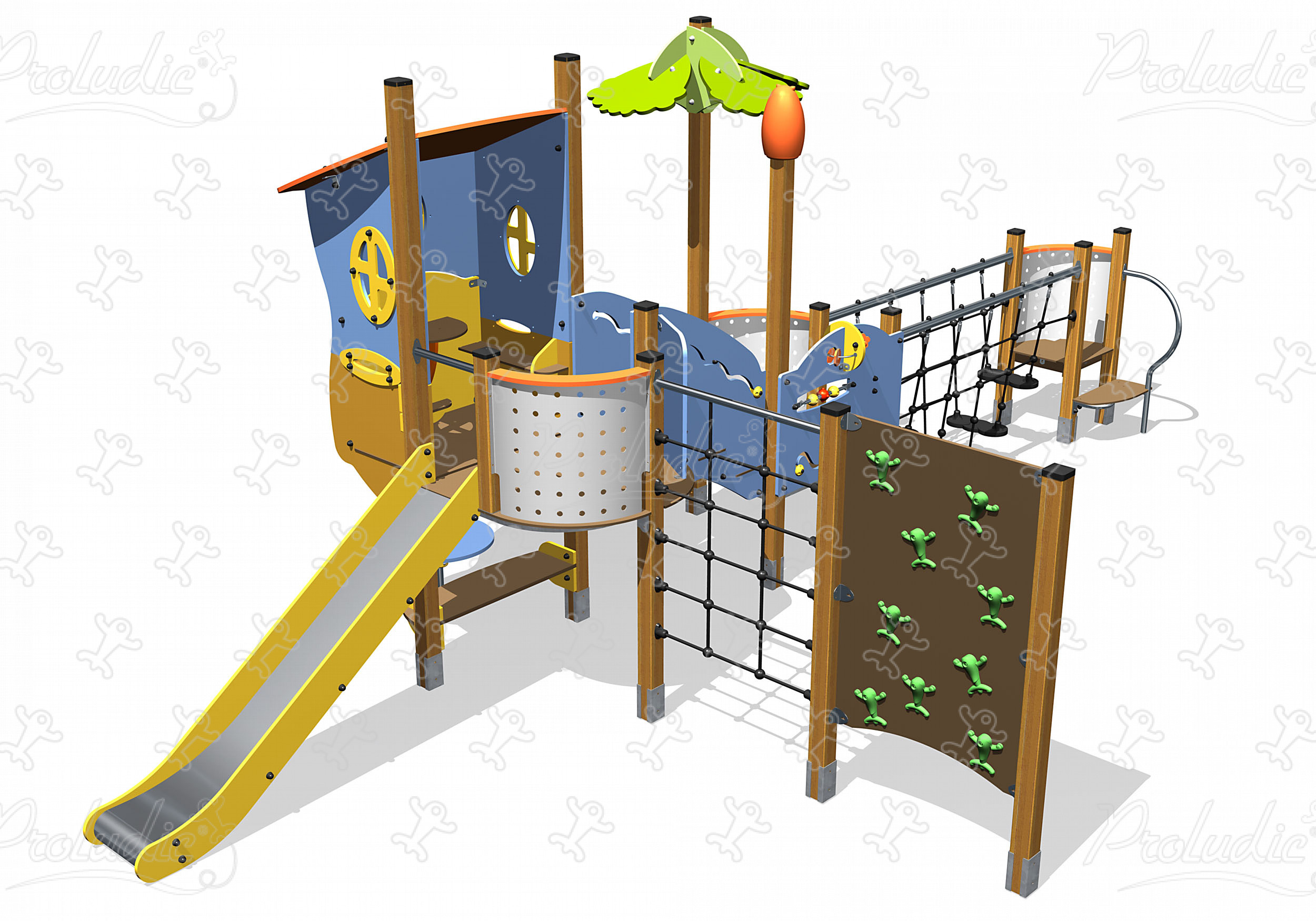

Multiplay equipment with playhouse, slide, rope bridge, and climbing activities - J3359

We have created the reference J3359 in our "Vivarea" range. This play equipment is accessible from 2 years. It can accommodate up to 30 users.

The size of the module is: 8.25 m length, 4.63 m width, 3.20 m. high. The free fall height (FFH) is 1.70 m.

25 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x3

By playing together, children learn how to interact with other personalities and behaviors.

Resting x2

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Tactile stimulation x2

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x2

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x2

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Hiding x5

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Specifications

Age range:	2+
Number of users:	30 users
FFH :	1.70 m
Size:	8.25 x 4.63 x 3.20 m

Equipment installation

Number of installers:	2
Installation time:	20:00:00
Concrete volume:	0.40 m3
Surface:	54.50 m2
Total weight:	692.15 kg
Weight of the heaviest element:	28.76 kg

Environmental Indicators

Repairability

9.43 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

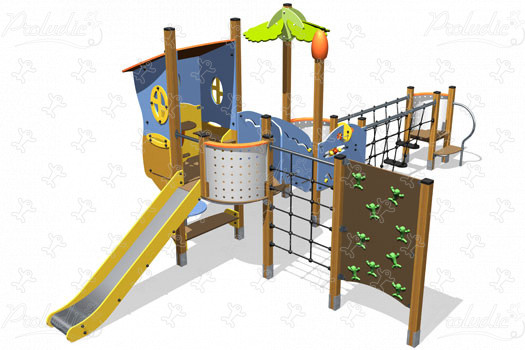

J3359 playgrounds multiplay equipment vivarea image 3d

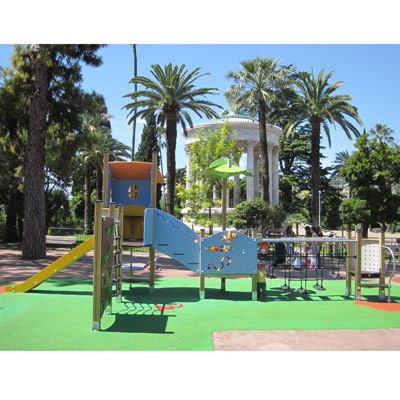

J3359 playgrounds multiplay equipment vivarea image photo

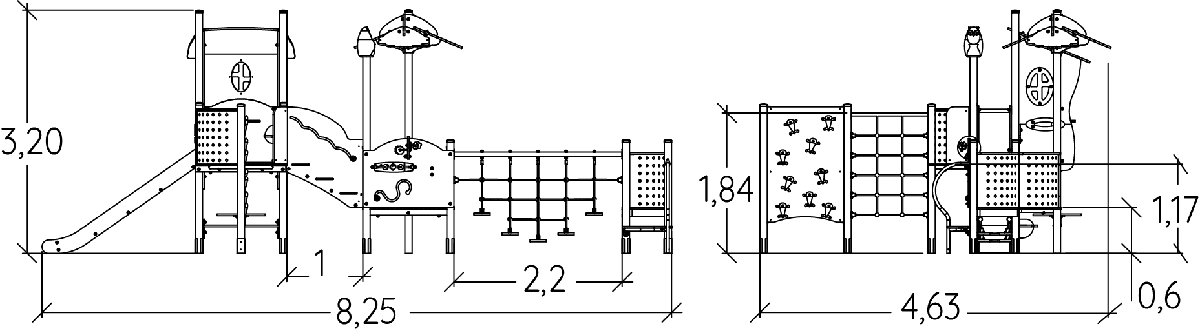

J3359 playgrounds multiplay equipment vivarea image side view

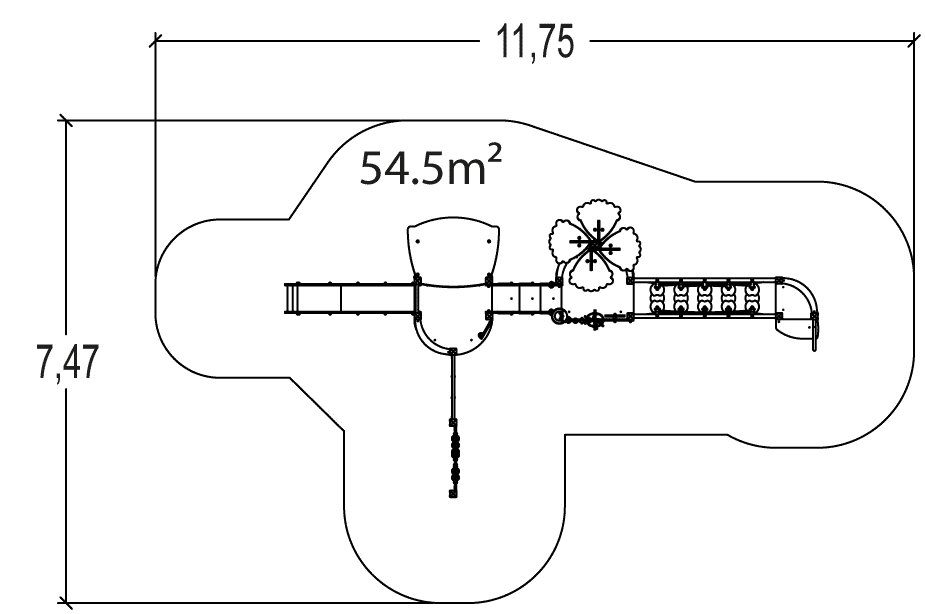

J3359 playgrounds multiplay equipment vivarea image view from above
