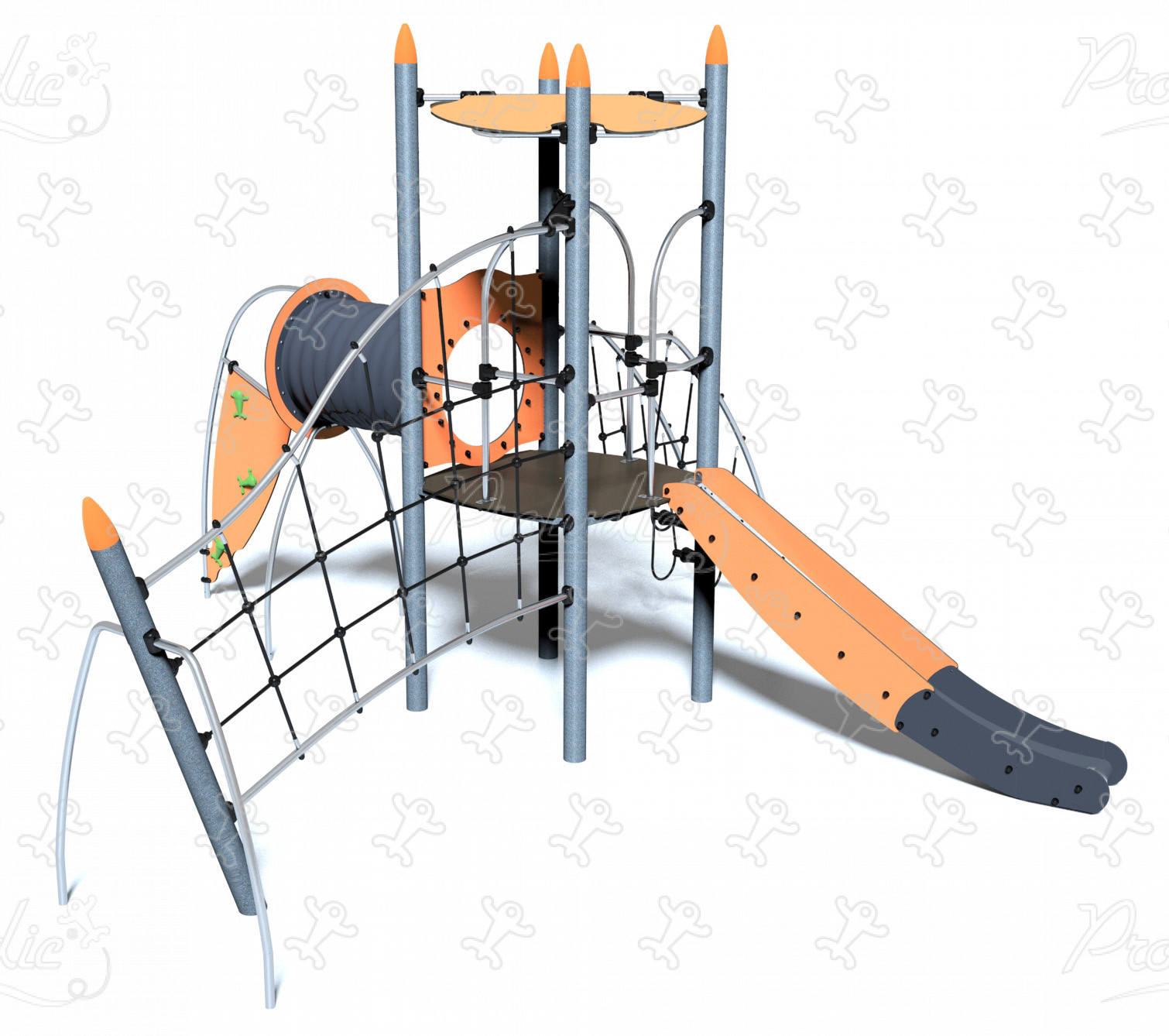

J45006 - Playgrounds - Multi-play equipment

We have created the reference J45006 in our "Biibox" range. This play equipment is accessible from 5 years. It can accommodate up to 15 users.

The size of the module is: 6.40 m length, 6.02 m width, 4.00 m. high. The free fall height (FFH) is 2.90 m.

9 play functions

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Specifications

Age range:	5+
Number of users:	15 users
FFH :	2.90 m
Size:	6.40 x 6.02 x 4.00 m

Equipment installation

Number of installers:	2
Installation time:	11:30:00
Concrete volume:	0.50 m3
Surface:	62.50 m2
Total weight:	461.30 kg
Weight of the heaviest element:	31.71 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

Materials

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The caps are made of rotary moulded polyethylene.

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by lacquered galvanised steel supports,... located on the underside of the platforms. Read more

The play walls and roofs are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
