Timber climbing playground equipment with rope wall - J1604

We have created the reference J1604 in our "Climbing equipment" range. This play equipment is accessible from 5 years. It can accommodate up to 11 users.

Timber basic climbing frame for children aged 5 years and over.

Other finishes available

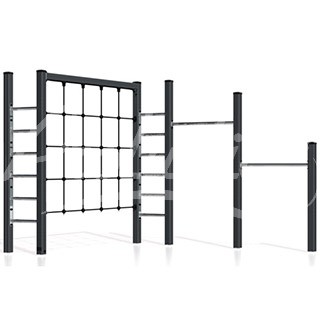

J1604-M

2 play functions

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	5+
Number of users:	11 users
FFH :	2.40 m
Size:	3.52 x 2.40 x 2.40 m

Equipment installation

Number of installers:	2
Installation time:	03:00:00
Concrete volume:	0.20 m3
Surface:	35.00 m2
Total weight:	144.34 kg
Weight of the heaviest element:	27.38 kg

Environmental Indicators

Repairability

9.51 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

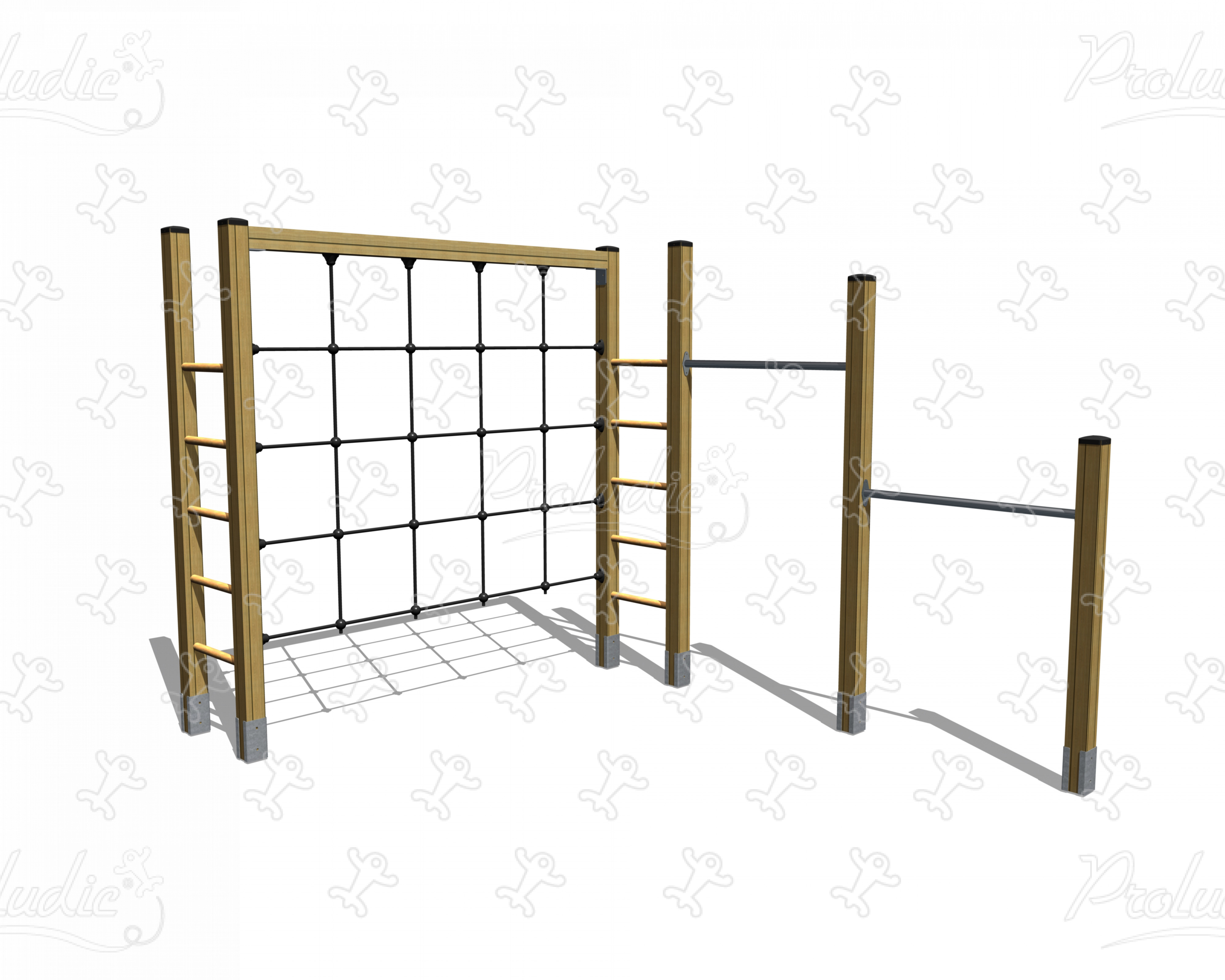

J1604 playgrounds climbing & balancing play equipment climbing equipment image 3d

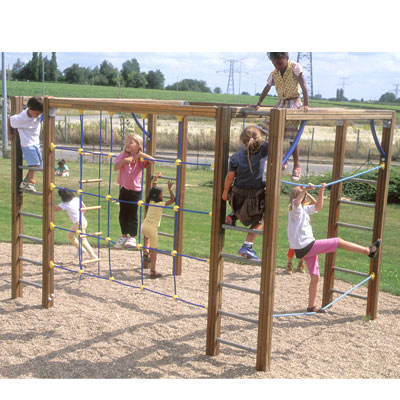

J1604 playgrounds climbing & balancing play equipment climbing equipment image photo

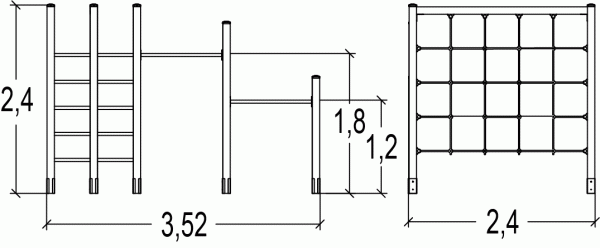

J1604 playgrounds climbing & balancing play equipment climbing equipment image side view

J1604 playgrounds climbing & balancing play equipment climbing equipment image view from above

Materials

The vertical 95mm square post are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
