Wooden underwater multi-activity play structure with slide - Submarine - J49139®

We have created the reference J49139® in our "Boats and seascapes" range. This play equipment is accessible from 2 years. It can accommodate up to 56 users.

The size of the module is: 11.15 m length, 6.84 m width, 3.87 m. high. The free fall height (FFH) is 1.70 m.

Custom Product

Simplified documentation, lead times upon request, on-site certification. Additional shipping costs may apply.

24 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Handling x4

A great exercise for developing motor skills and abilities in young children while having fun.

Hiding x2

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Taking shelter x2

A refuge where the children can take shelter ensures that children have their own space.

Sound stimulation x2

Popular and often shared by numerous children, fun sound activities bring even more life to play areas!

Tactile stimulation x4

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x4

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	2+
Number of users:	56 users
FFH :	1.70 m
Size:	11.15 x 6.84 x 3.87 m

Equipment installation

Number of installers:	3
Installation time:	24:00:00
Concrete volume:	2.30 m3
Surface:	88.00 m2
Total weight:	2680.23 kg
Weight of the heaviest element:	1795.63 kg

Environmental Indicators

Repairability

9.43 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

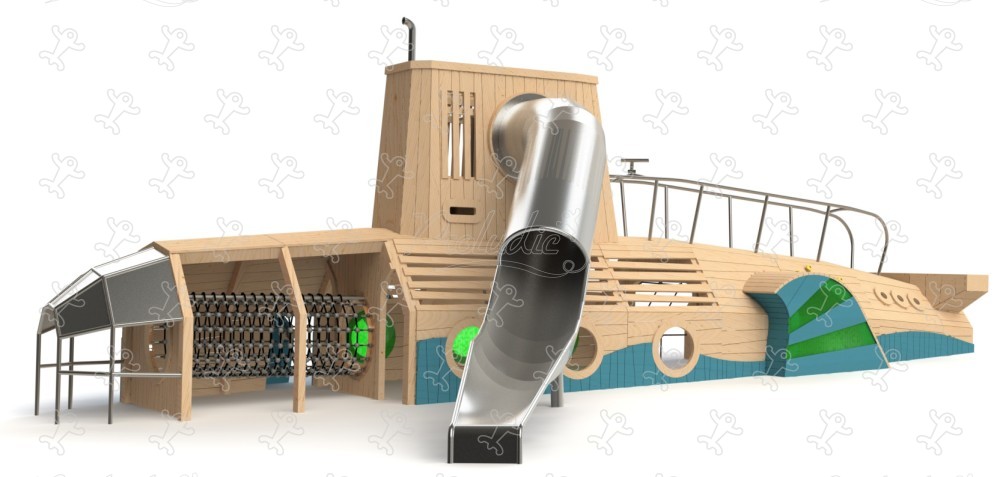

Submarine J49139® playgrounds sustainable natural wood equipment boats and seascapes image 3d

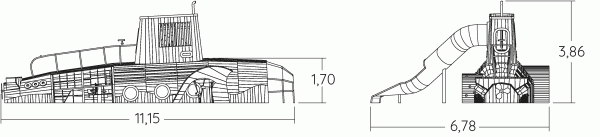

Submarine J49139® playgrounds sustainable natural wood equipment boats and seascapes image side view

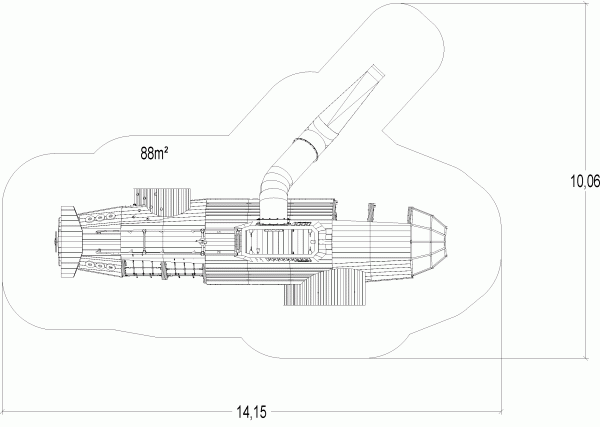

Submarine J49139® playgrounds sustainable natural wood equipment boats and seascapes image view from above

Materials

The boards are made from natural robinia wood or Douglas fir (plank sizes: 22, 27 and 45mm). Robinia wood and Douglas fir are naturally rot proof and do not... require any additional chemical protection; they are equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. The coloured panels are using a staining process. Read more

The different posts (average diameter: 60 to 80mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally... rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter rope is made of galvanised steel cable covered with polyester.

The cables are linked together and held in place by injected polyamide spheres.

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

The tubular slide is made of stainless steel.

The portholes are made from 8mm thick methacrylate (PMMA).

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
