Slides - Tubular Embankment Slide - J1130

We have created the reference J1130 in our "Slides" range. This play equipment is accessible from 2 years. It can accommodate up to 4 users.

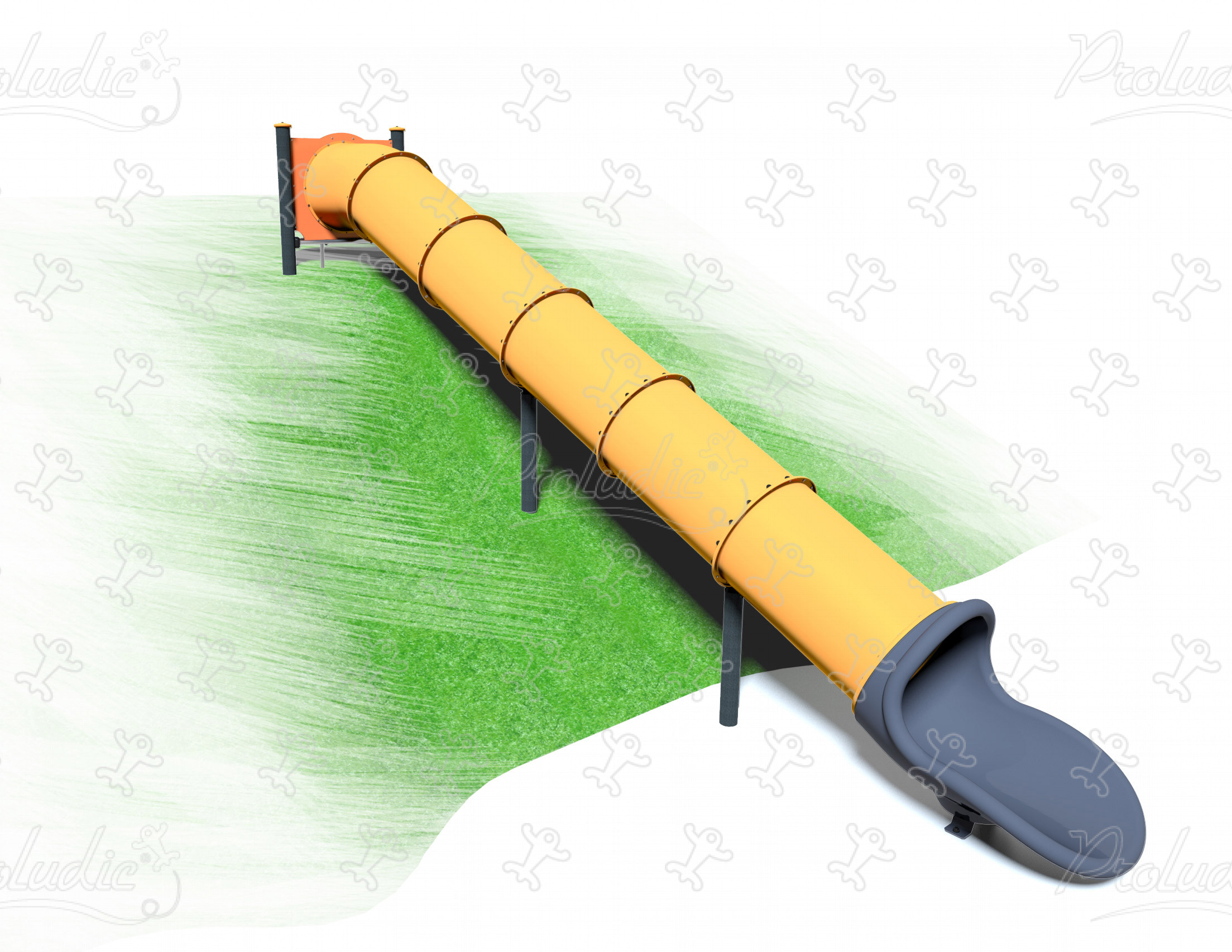

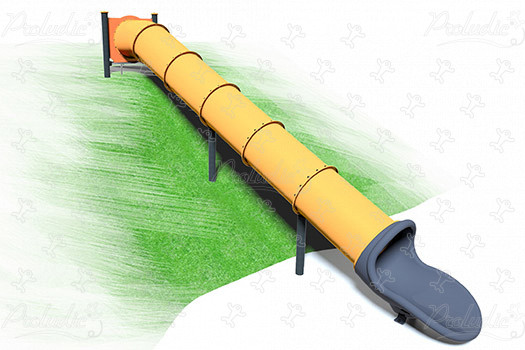

Tubular plastic embankment slide. 2.8 m high and 8 m wide.

3 play functions

sliding
Sliding x1
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x1
By playing together, children learn how to interact with other personalities and behaviors.
hiding
Hiding x1
Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Specifications

Age range: 2+
Number of users: 4 users
FFH : 1.00 m
Size: 8.03 x 1.36 x 3.94 m

Equipment installation

Number of installers: 2
Installation time: 05:00:00
Concrete volume: 0.20 m3
Surface: 26.00 m2
Total weight: 252.65 kg
Weight of the heaviest element: 41.00 kg

Environmental Indicators

Repairability

Repairability

9.29 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view
View from above
View from above

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The platform

The platform is 21mm plywood panels made up of layers of birch. The surface is coated with a film of non-slip phenolic resin.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

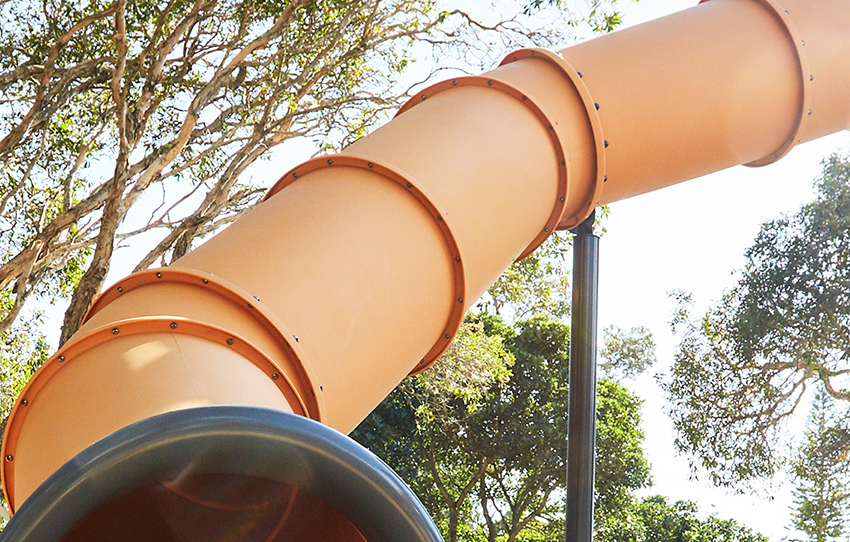

The slide

The slide is made of rotomoulded polyethylene.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
