Aquatica - J1951

We have created the reference J1951 in our "Aquatica" range. This play equipment is accessible from 3 years. It can accommodate up to 17 users.

The size of the module is: 6.90 m length, 2.16 m width, 3.00 m. high. The free fall height (FFH) is 1.37 m.

20 play functions

role play
Role play x2
Role plays promote the child's intellectual and social skills.
sliding
Sliding x1
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x2
By playing together, children learn how to interact with other personalities and behaviors.
resting
Resting x1
By resting, the child can recover from their exertions and improve their concentration before starting to play again.
handling
Handling x3
A great exercise for developing motor skills and abilities in young children while having fun.
hiding
Hiding x2
Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.
tactile stimulation
Tactile stimulation x3
Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.
visual stimulation
Visual stimulation x2
It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.
climbing
Climbing x2
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
getting across
Getting across x1
 Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.
taking shelter
Taking shelter x1
A refuge where the children can take shelter ensures that children have their own space.
Show more

Specifications

Age range: 3+
Number of users: 17 users
FFH : 1.37 m
Size: 6.90 x 2.16 x 3.00 m

Equipment installation

Number of installers: 2
Installation time: 32:00:00
Concrete volume: 0.50 m3
Surface: 45.00 m2
Total weight: 763.88 kg
Weight of the heaviest element: 33.60 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

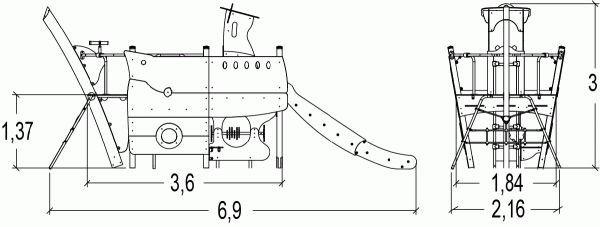

Side view
Side view

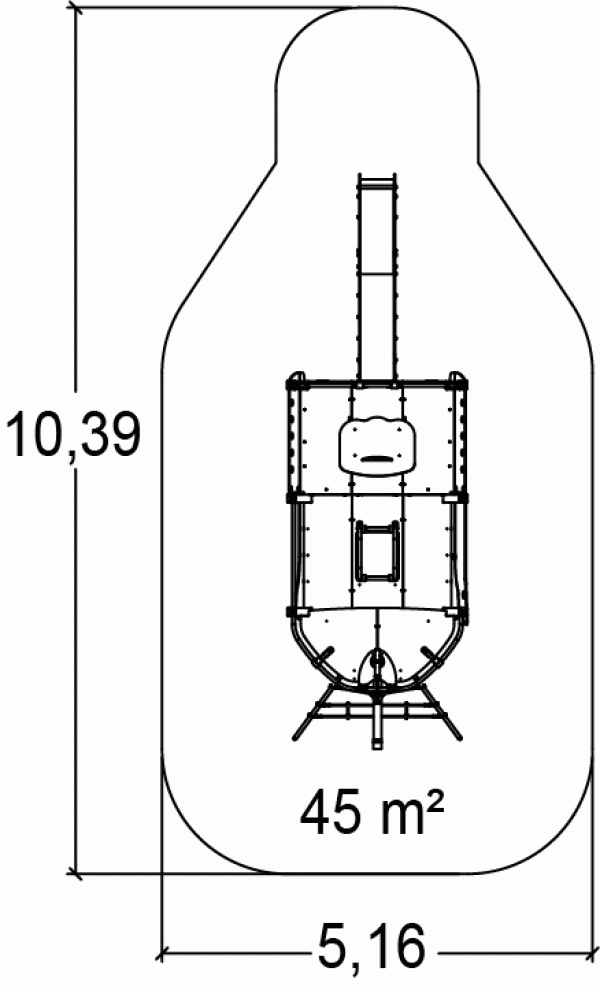

View from above
View from above

Materials

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The vertical 95mm square post

The vertical 95mm square post are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The posts are protected by injected polyamide caps. Read more

The shaped beam

The shaped beam (95mm thick, 200mm wide and 3.2m high) is made of oven-cured laminated wood with a surface coating; It gives the structure considerable strength.

The platforms

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The sliding surface

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
