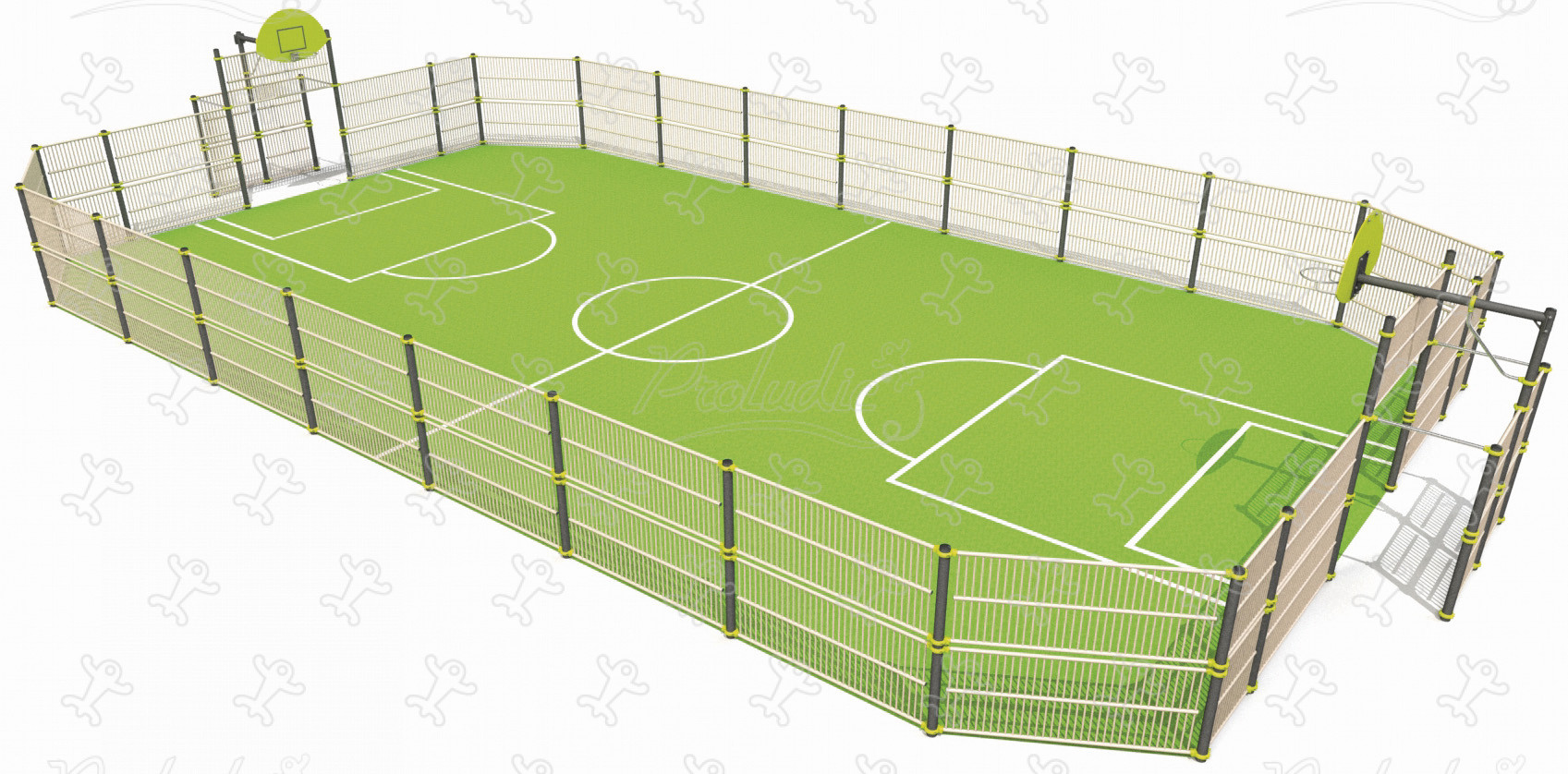

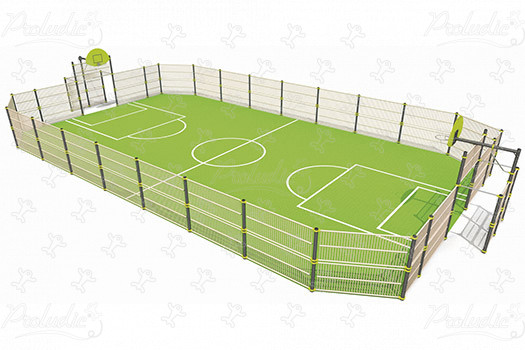

We have created the reference J22210® in our "Multi-Use Games Areas" range. This activity equipment is accessible from 6 years. It can accommodate up to 20 users.

The size of the module is: 24.50 m length, 12.70 m width, 3.90 m. high.

3 sports activities

Basketball
Basketball x1
Football
Football x1
Handball
Handball x1

Specifications

Age range: 6+
Number of users: 20 users
Size: 24.50 x 12.70 x 3.90 m

Equipment installation

Number of installers: 3
Installation time: 32:00:00
Concrete volume: 3.40 m3
Total weight: 1874.47 kg
Weight of the heaviest element: 27.36 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view
View from above
View from above

Materials

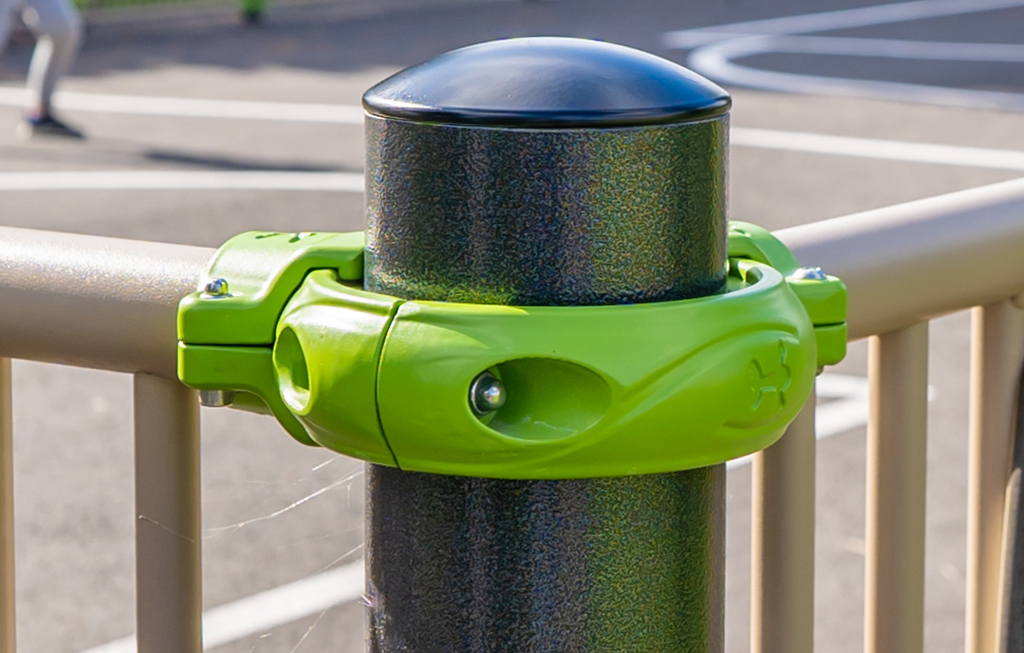

The 102mm diameter posts

The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... painted aluminium. The fixing collars are made of painted aluminium. Read more

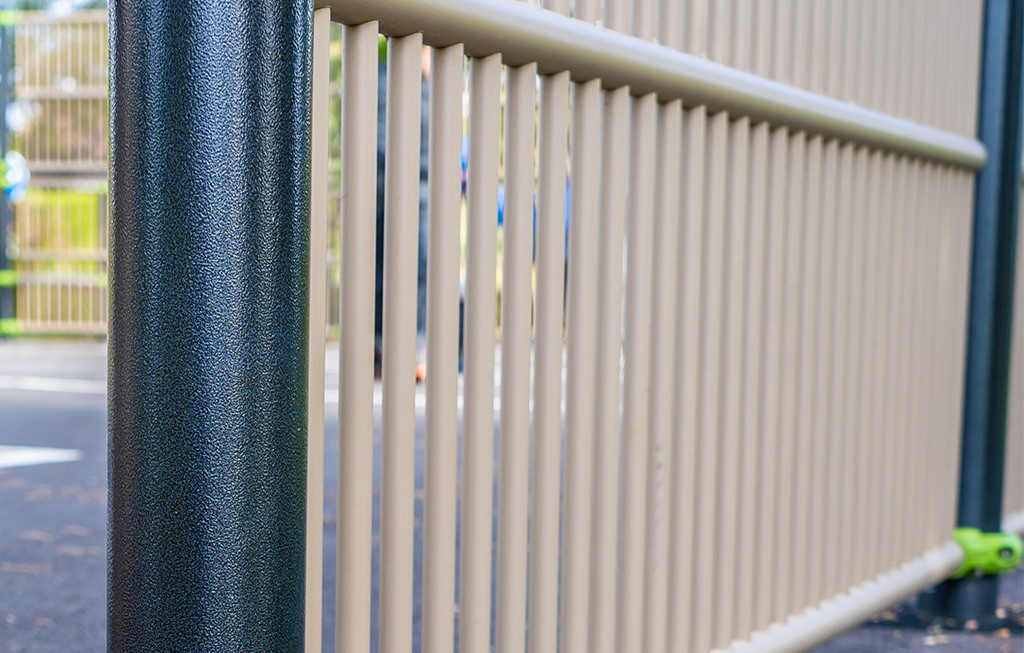

The mesh fencing

The mesh fencing is made of painted aluminum. The goal area mesh fencing is made of painted galvanised steel.

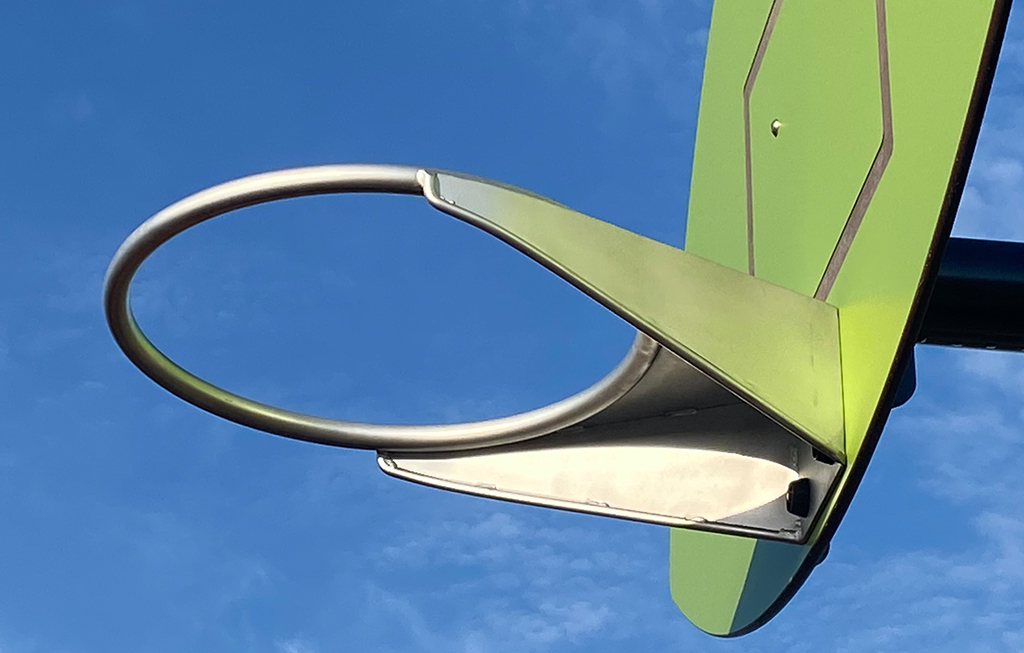

The basketball ring

The basketball ring is made of galvanised steel.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
