We have created the reference J22214® in our "Multi-Use Games Areas" range. This activity equipment is accessible from 6 years.

The size of the module is: 30.20 m length, 15.20 m width, 3.90 m. high.

3 sports activities

Basketball
Basketball x1
Football
Football x1
Handball
Handball x1

Specifications

Age range: 6+
Size: 30.20 x 15.20 x 3.90 m

Equipment installation

Number of installers: 3
Installation time: 52:00:00
Concrete volume: 4.20 m3
Total weight: 3195.10 kg
Weight of the heaviest element: 27.36 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view

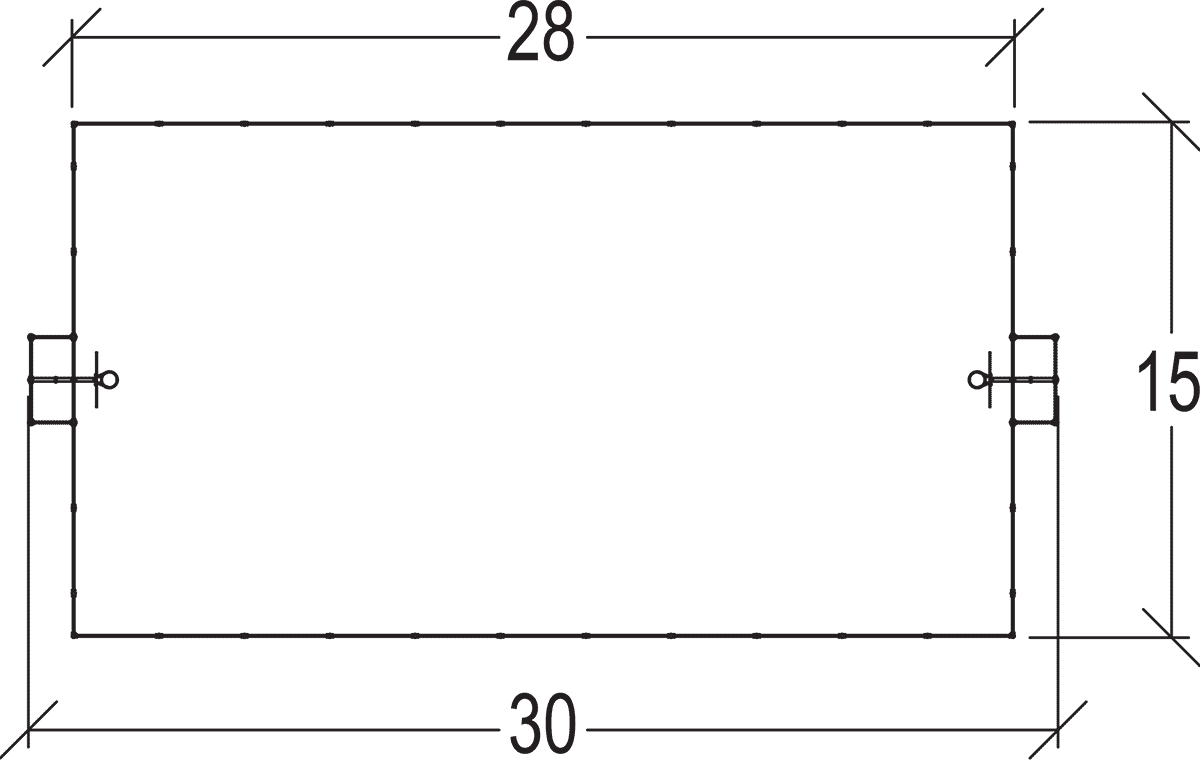

View from above
View from above

Materials

The 102mm diameter posts

The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... painted aluminium. The fixing collars are made of painted aluminium. Read more

The panels

The panels are made of painted galvanised steel.

The basketball ring

The basketball ring is made of galvanised steel.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
