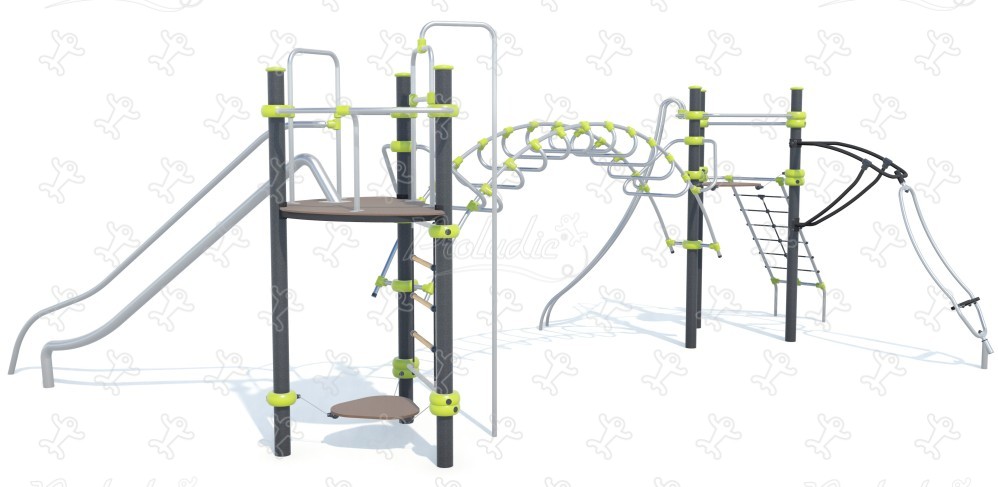

We have created the reference J2573-M in our "Ixo" range. This module is accessible from 6 years. It can accommodate up to 22 users.
The size of the module is: 8.69 m wide, 7.45 m. deep, 3.40 m. high. The free fall height (FFH) is 2.40 m.
15 play functions
Meeting
x2
By playing together, children learn how to interact with other personalities and behaviors.
Balancing
x3
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
Climbing
x3
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
Getting across
x1
Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.
Hanging
x2
This fun activity allows you to explore a new way of playing, of managing space and the void below.
Rotating
x1
Turning allows the child to experience thrills, to experience speed and to feel the exhilaration of their head and body turning uncontrollably.
Sliding
x3
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
Specifications
| Age range: | 6+ |
| Number of users: | 22 users |
| FFH : | 2.40 m |
| Size: | 8.69 x 7.45 x 3.40 m |
Equipment installation
| Number of installers: | 2 |
| Installation time: | 20:00:00 |
| Concrete volume: | 0.60 m3 |

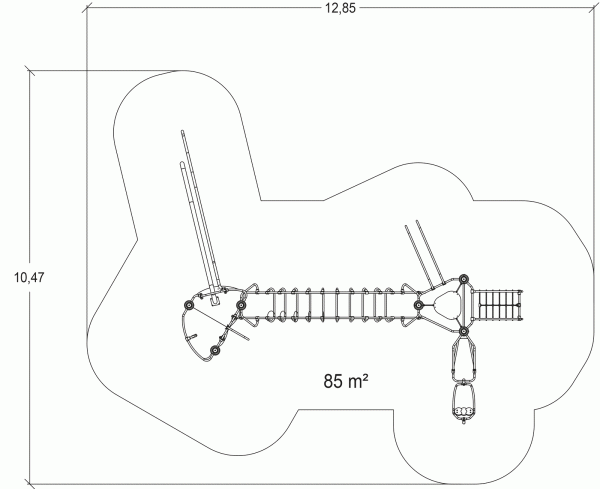

| Surface: | 85.00 m2 |
| Total weight: | 443.97 kg |
| Weight of the heaviest element: | 65.00 kg |
Certification
The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification
- JXXXX TÜV certification
- JXXXX* Proludic Certification
Other finishes
Materials
The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more
Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.
The tubes are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.
Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipement both strong and vandal resistant. Read more
The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by lacquered galvanised steel supports,... located on the underside of the platforms. Read more
The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
The ladder rungs are made of acacia wood which is naturally rot-resistant and smooth to the touch. They are mounted on a 16mm diameter polyester cable.
The seat is made of shock absorbing moulded honeycomb rubber.
The unstable platform is made from a 12.5mm thick textured and non-slip compact material (HPL).
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
