Ixo - J2574-M

We have created the reference J2574-M in our "Ixo" range. This play equipment is accessible from 8 years. It can accommodate up to 31 users.

The size of the module is: 10.84 m length, 6.84 m width, 3.40 m. high. The free fall height (FFH) is 3.00 m.

18 play functions

sliding
Sliding x2
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x3
By playing together, children learn how to interact with other personalities and behaviors.
hanging
Hanging x1
This fun activity allows you to explore a new way of playing, of managing space and the void below.
balancing
Balancing x3
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
rotating
Rotating x1
Turning allows the child to experience thrills, to experience speed and to feel the exhilaration of their head and body turning uncontrollably.
climbing
Climbing x4
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
getting across
Getting across x2
 Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.
resting
Resting x2
By resting, the child can recover from their exertions and improve their concentration before starting to play again.
Show more

Specifications

Age range: 8+
Number of users: 31 users
FFH : 3.00 m
Size: 10.84 x 6.84 x 3.40 m

Equipment installation

Number of installers: 2
Installation time: 26:00:00
Concrete volume: 0.70 m3
Surface: 105.50 m2
Total weight: 528.77 kg
Weight of the heaviest element: 65.00 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

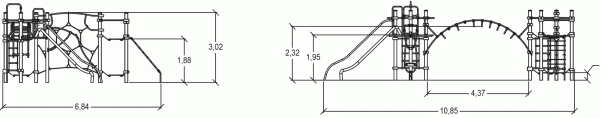

Side view
Side view

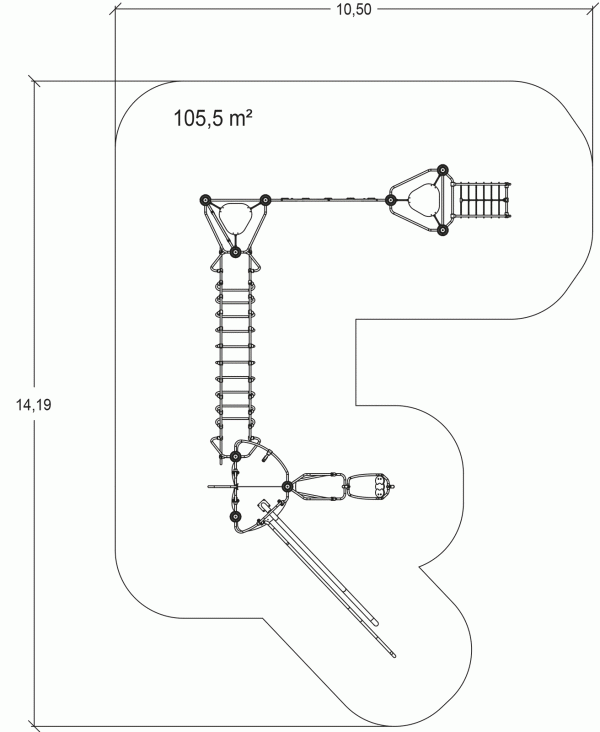

View from above
View from above

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.

The tubes

The tubes are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The platforms

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by lacquered galvanised steel supports,... located on the underside of the platforms. Read more

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The net fittings

The net fittings are made of polyamide and are used to link three cords together.

The ladder rungs

The ladder rungs are made of acacia wood which is naturally rot-resistant and smooth to the touch. They are mounted on a 16mm diameter polyester cable.

The seat

The seat is made of shock absorbing moulded honeycomb rubber.

The unstable platform

The unstable platform is made from a 12.5mm thick textured and non-slip compact material (HPL).

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
