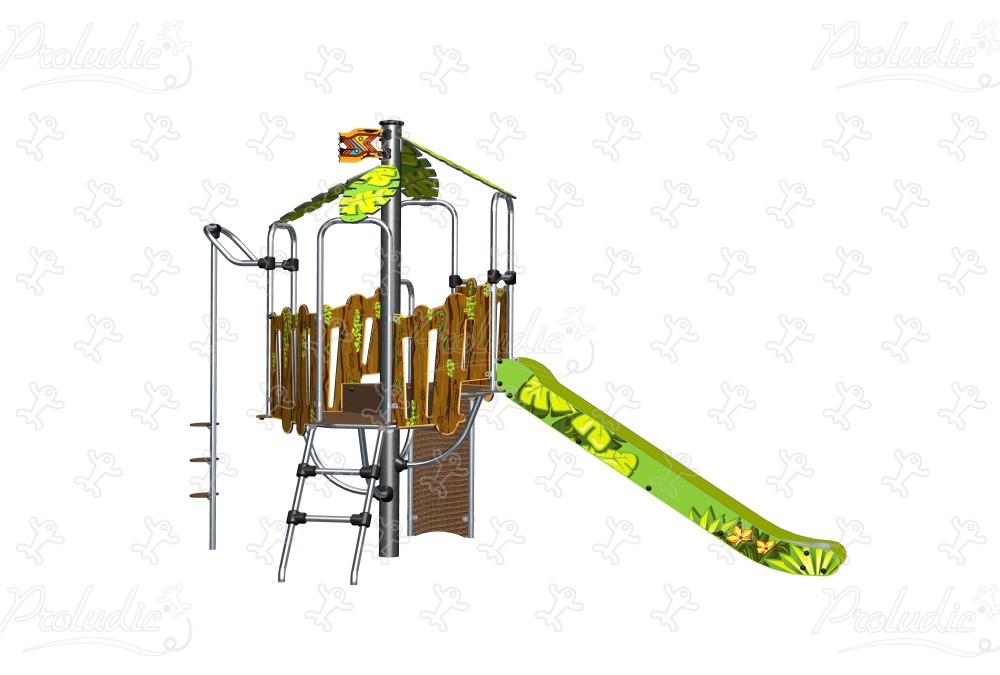

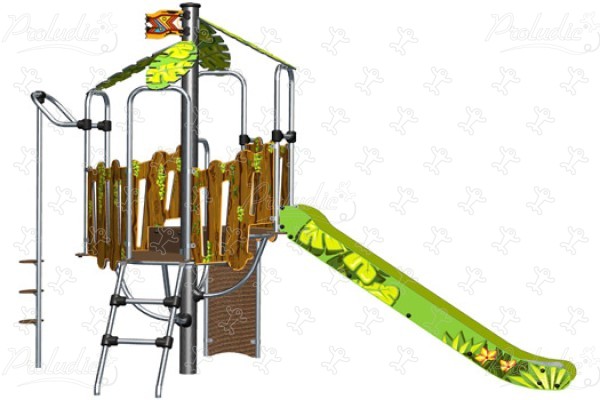

Amazone finish - J2633-M-GA

We have created the reference J2633-M-GA in our "Amazone finish" range. This play equipment is accessible from 3 years. It can accommodate up to 11 users.

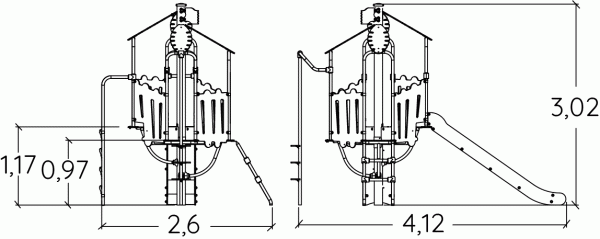

The size of the module is: 4.12 m length, 2.60 m width, 3.02 m. high. The free fall height (FFH) is 1.30 m.

Other finishes available

J2633-M-GE

J2633-M

6 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Specifications

Age range:	3+
Number of users:	11 users
FFH :	1.30 m
Size:	4.12 x 2.60 x 3.02 m

Equipment installation

Number of installers:	2
Installation time:	10:00:00
Concrete volume:	0.30 m3

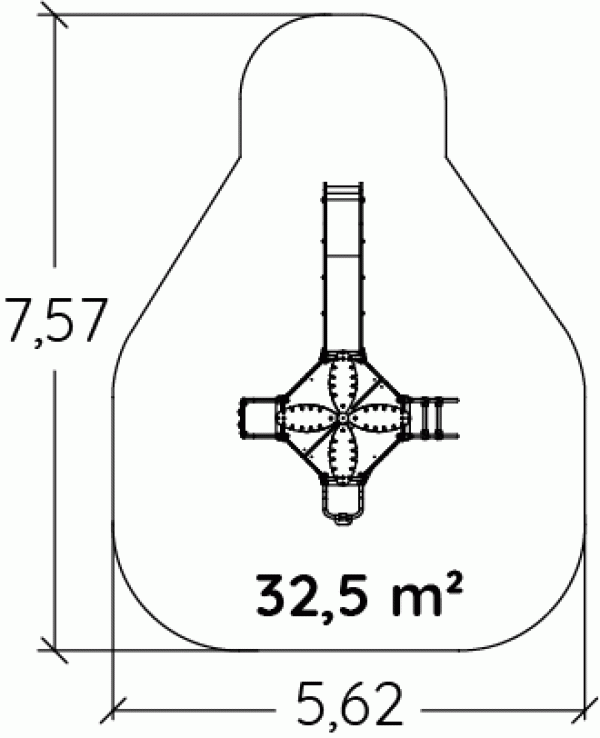

Surface:	32.50 m2
Total weight:	236.97 kg
Weight of the heaviest element:	17.28 kg

Environmental Indicators

Repairability

9.43 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The cap is... made of injection moulded polyamide. Read more

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
