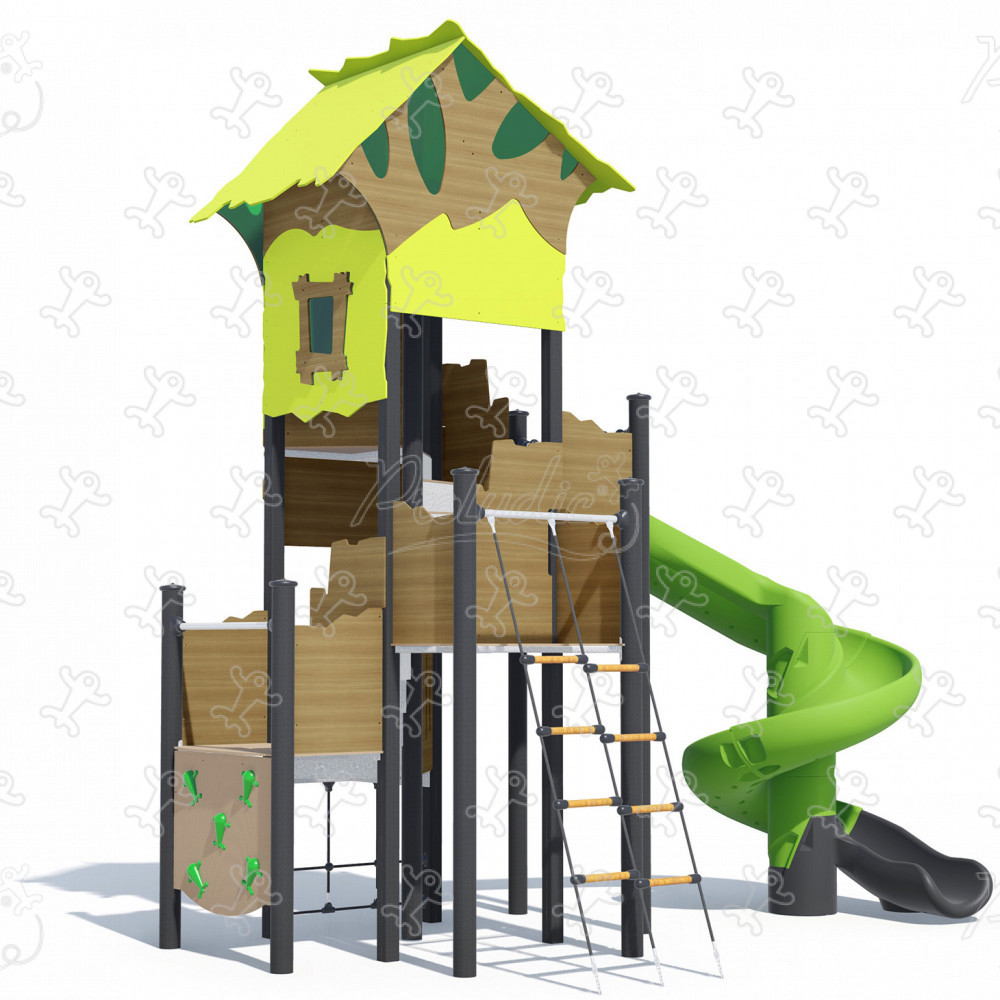

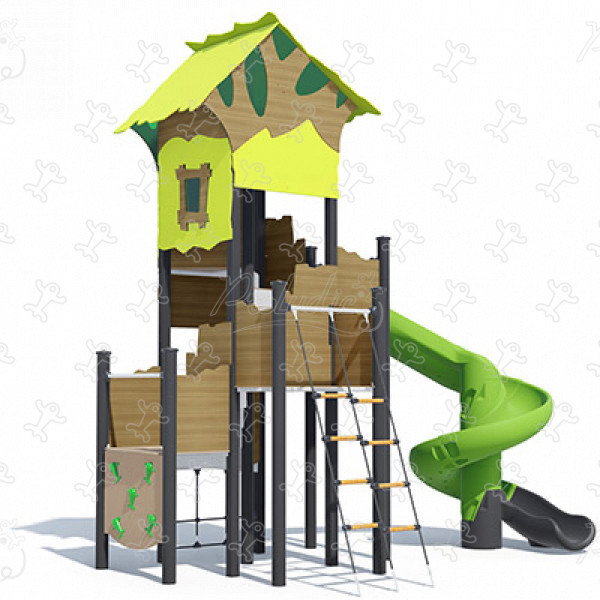

The mini-Tree Tower

We have created the reference J2683® in our "Adventure" range. This module is accessible from 3 years. It can accommodate up to 30 users.

The size of the module is: 5.01 m wide, 3.07 m. deep, 5.39 m. high. The free fall height (FFH) is 2.37 m.

34 play functions

climbing
Climbing x1
Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.
sliding
Sliding x1
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
climbing
Climbing x5
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
meeting
Meeting x6
By playing together, children learn how to interact with other personalities and behaviors.
role play
Role play x4
Role plays promote the child's intellectual and social skills.
handling
Handling x4
A great exercise for developing motor skills and abilities in young children while having fun.
visual stimulation
Visual stimulation x4
It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.
taking shelter
Taking shelter x4
A refuge where the children can take shelter ensures that children have their own space.
hiding
Hiding x4
Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.
balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
Show more

Specifications

Age range: 3+
Number of users: 30 users
FFH : 2.37 m
Size: 5.01 x 3.07 x 5.39 m

Equipment installation

Number of installers: 3
Installation time: 40:00:00
Concrete volume: 1.80 m3
Surface: 46.50 m2
Total weight: 1280.89 kg
Weight of the heaviest element: 50.00 kg

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification

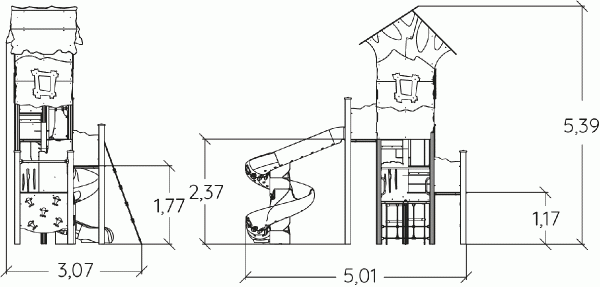

Side view
Side view

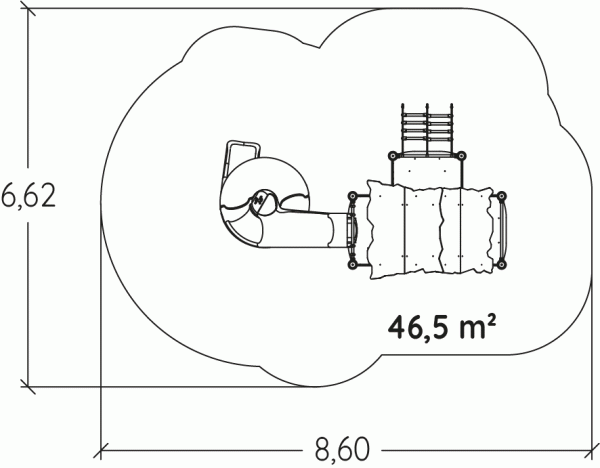

View from above
View from above

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms and the climbing walls

The platforms and the climbing walls are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

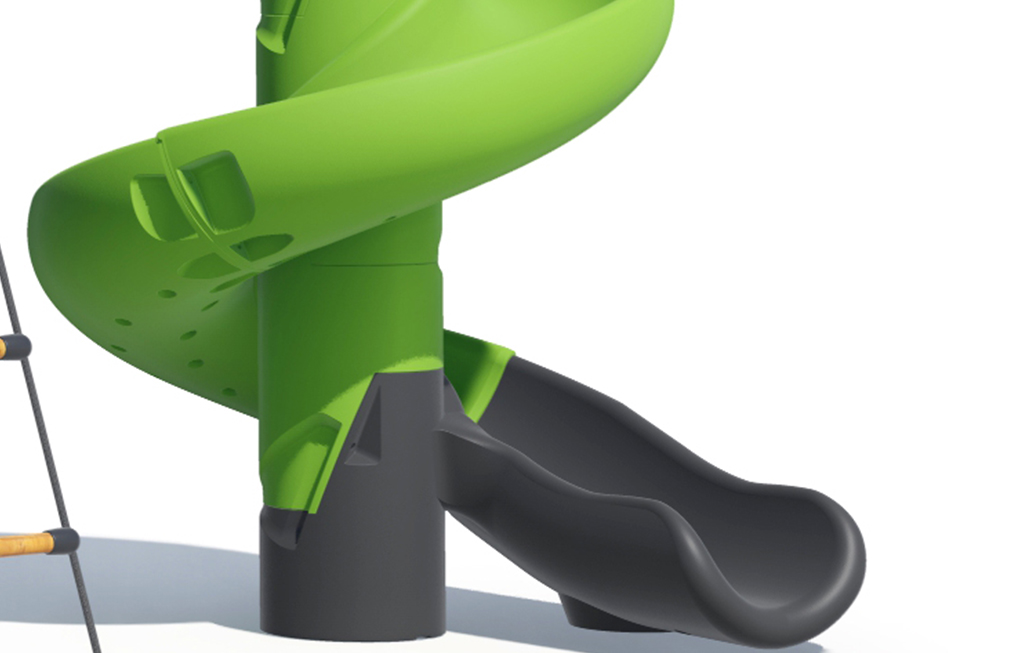

The slide

The slide is made of rotomoulded polyethylene.

The ladder rungs

The ladder rungs are made of acacia wood which is naturally rot-resistant and smooth to the touch. They are mounted on a 16mm diameter polyester cable.

The climbing holds

The climbing holds are made of polyamide for its strength and rigidity.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
