J2688 - Playgrounds - Themed equipment

We have created the reference J2688® in our "Adventure" range. This module is accessible from 3 years. It can accommodate up to 48 users.

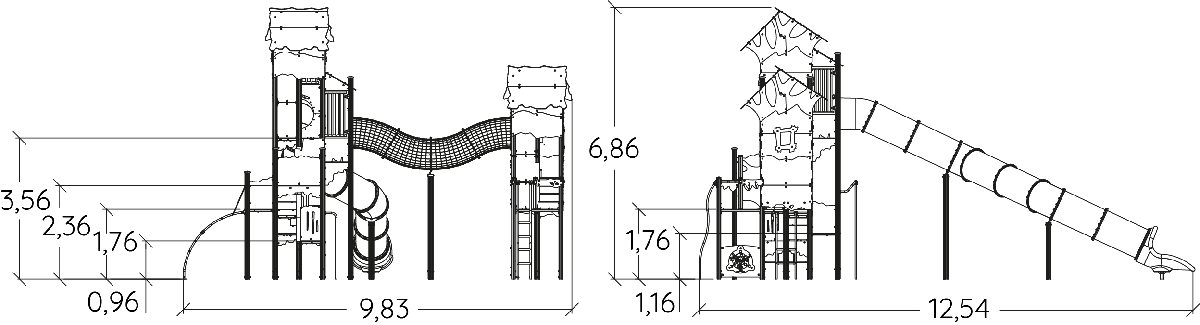

The size of the module is: 12.54 m wide, 9.83 m. deep, 6.86 m. high. The free fall height (FFH) is 2.37 m.

21 play functions

Sliding x2

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Visual stimulation x2

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Thinking x1

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

Tactile stimulation x1

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Role play x3

Role plays promote the child's intellectual and social skills.

Meeting x2

By playing together, children learn how to interact with other personalities and behaviors.

Hiding x2

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Climbing x4

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Taking shelter x2

A refuge where the children can take shelter ensures that children have their own space.

Specifications

Age range:	3+
Number of users:	48 users
FFH :	2.37 m
Size:	12.54 x 9.83 x 6.86 m

Equipment installation

Number of installers:	2
Installation time:	55:00:00
Concrete volume:	3.50 m3

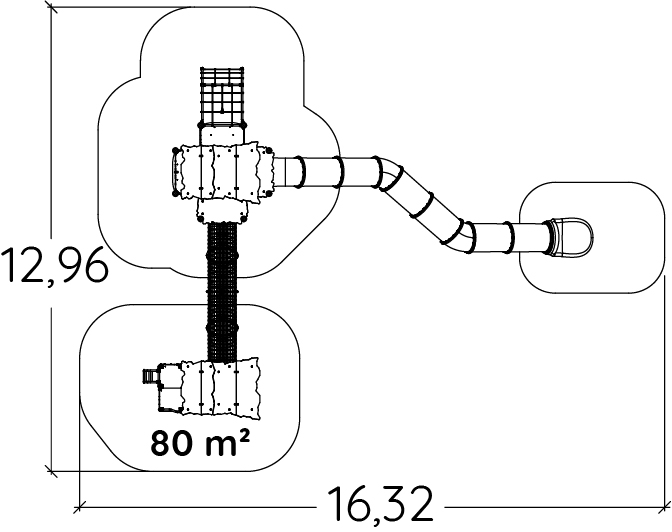

Surface:	80.00 m2
Total weight:	2869.63 kg
Weight of the heaviest element:	42.03 kg

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification

Materials

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipement both strong and vandal resistant. Read more
