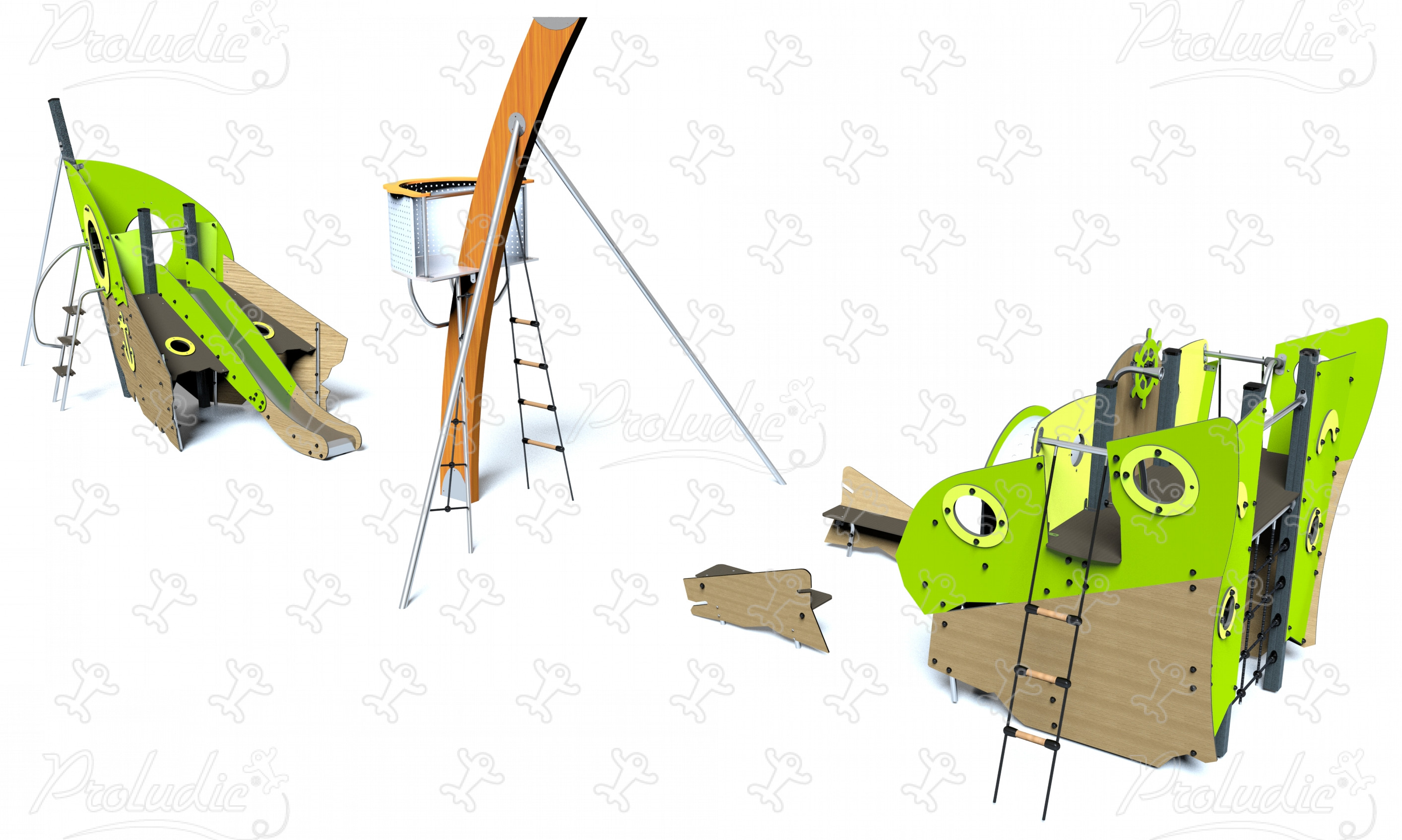

We have created the reference J2750-M in our "Aquatica" range. This play equipment is accessible from 4 years. It can accommodate up to 40 users.

The size of the module is: 17.81 m length, 4.19 m width, 4.27 m. high. The free fall height (FFH) is 2.20 m.

18 play functions

climbing
Climbing x2
Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.
role play
Role play x1
Role plays promote the child's intellectual and social skills.
sliding
Sliding x1
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x1
By playing together, children learn how to interact with other personalities and behaviors.
resting
Resting x2
By resting, the child can recover from their exertions and improve their concentration before starting to play again.
handling
Handling x1
A great exercise for developing motor skills and abilities in young children while having fun.
hanging
Hanging x1
This fun activity allows you to explore a new way of playing, of managing space and the void below.
hiding
Hiding x2
Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.
balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
taking shelter
Taking shelter x2
A refuge where the children can take shelter ensures that children have their own space.
climbing
Climbing x4
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
Show more

Specifications

Age range: 4+
Number of users: 40 users
FFH : 2.20 m
Size: 17.81 x 4.19 x 4.27 m

Equipment installation

Number of installers: 2
Installation time: 36:50:00
Concrete volume: 1.20 m3
Surface: 120.50 m2
Total weight: 1245.75 kg
Weight of the heaviest element: 97.90 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

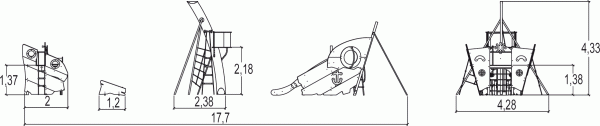

Side view
Side view

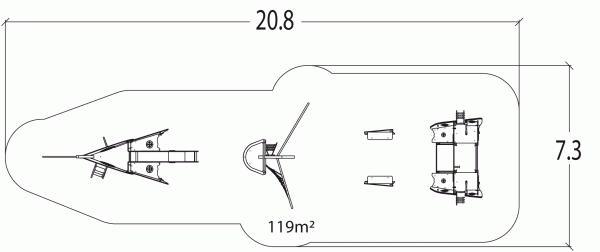

View from above
View from above

Materials

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The shaped beam

The shaped beam (95mm thick, 200mm wide and 3.2m high) is made of oven-cured laminated wood with a surface coating; It gives the structure considerable strength.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The sliding surface

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
