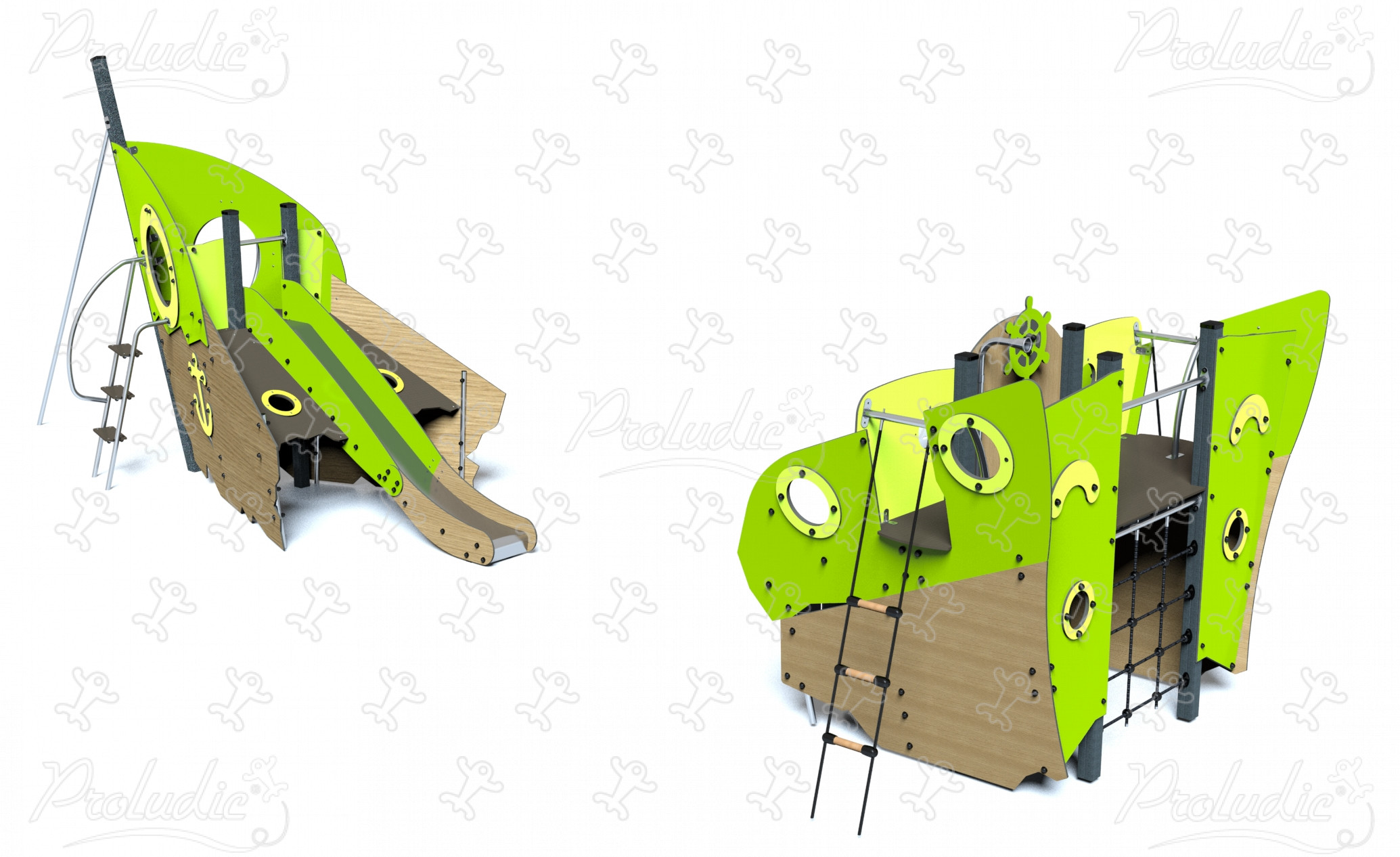

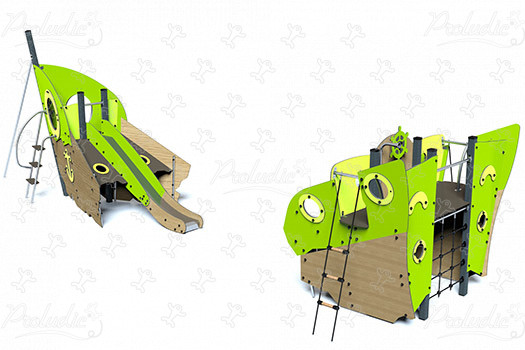

We have created the reference J2755-M in our "Aquatica" range. This play equipment is accessible from 4 years. It can accommodate up to 30 users.

The size of the module is: 11.00 m length, 3.72 m width, 3.37 m. high. The free fall height (FFH) is 1.37 m.

8 play functions

sliding
Sliding x1
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
role play
Role play x1
Role plays promote the child's intellectual and social skills.
meeting
Meeting x1
By playing together, children learn how to interact with other personalities and behaviors.
resting
Resting x1
By resting, the child can recover from their exertions and improve their concentration before starting to play again.
hanging
Hanging x1
This fun activity allows you to explore a new way of playing, of managing space and the void below.
hiding
Hiding x1
Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.
climbing
Climbing x1
Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.
balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
Show more

Specifications

Age range: 4+
Number of users: 30 users
FFH : 1.37 m
Size: 11.00 x 3.72 x 3.37 m

Equipment installation

Number of installers: 2
Installation time: 32:00:00
Concrete volume: 0.70 m3
Surface: 71.50 m2
Total weight: 968.41 kg
Weight of the heaviest element: 27.65 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

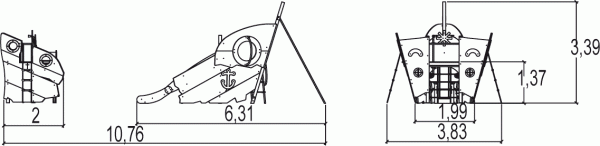

Side view
Side view

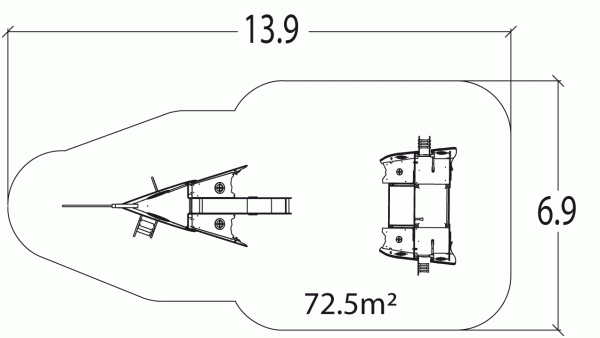

View from above
View from above

Materials

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The sliding surface

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

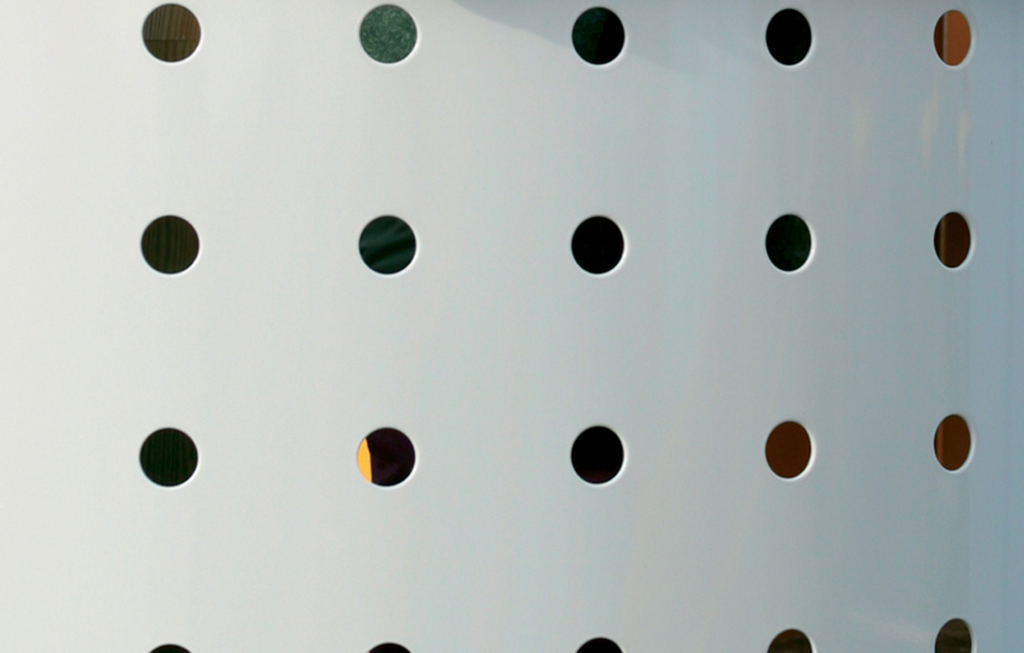

The balcony

The balcony is made of 3mm perforated aluminium sheet, coated with polyester epoxy lacquer.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
