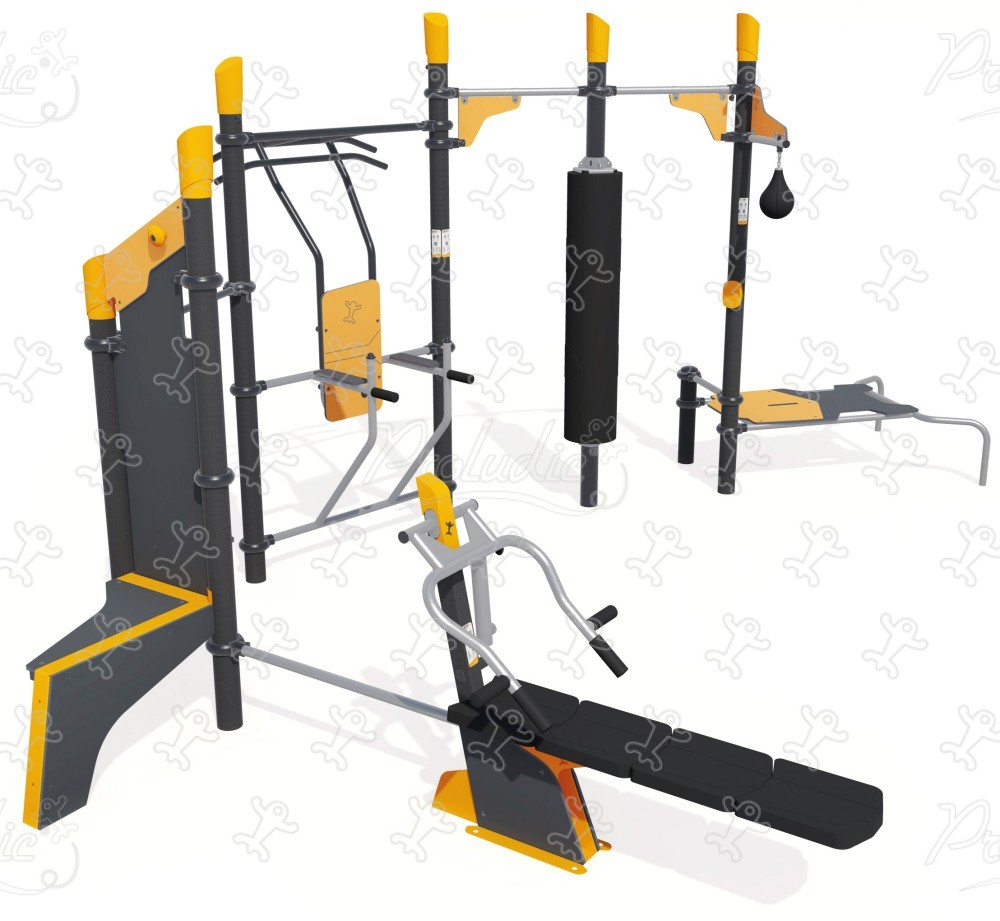

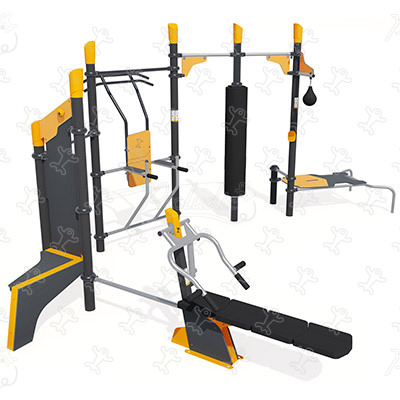

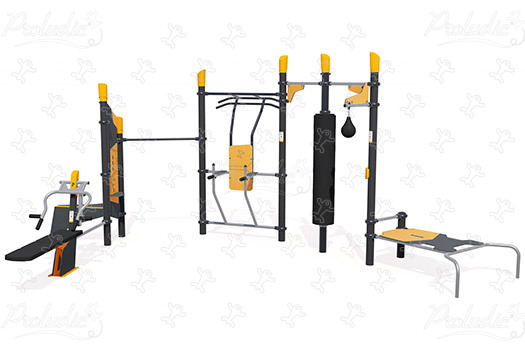

Strength fun-sport station

We have created the reference J37107® in our "ACTI’Fit" range. This activity equipment is accessible from 10 years. It can accommodate up to 10 users.

The size of the module is: 6.52 m length, 4.02 m width, 2.75 m. high. The free fall height (FFH) is 1.52 m.

12 sports activities

Hanging x2
Pull-ups x2
Dips x1
Push-ups x1
Abs x2
Boxing x2
Resistance x1
Lift x1
Show more


Age range: 10+
Number of users: 10 users
FFH : 1.52 m
Size: 6.52 x 4.02 x 2.75 m

Equipment installation

Number of installers: 2
Installation time: 25:00:00
Concrete volume: 1.40 m3
Surface: 46.50 m2
Total weight: 454.12 kg
Weight of the heaviest element: 24.32 kg

Environmental Indicators



8.65 /10


The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

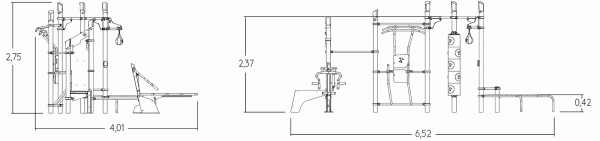

Side view
Side view

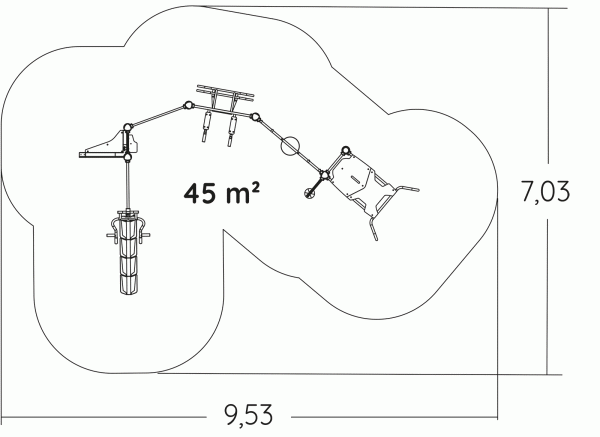

View from above
View from above


The 102mm diameter posts

The 102mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance.

The caps

The caps are made of painted aluminium (A) or rotary moulded polyethylene (B).

The tubes

The tubes are made of 40mm and 33mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The tubes used for the Parallel bars and Suspension bars

The tubes used for the Parallel bars and Suspension bars are made of electro-galvanized steel (diameter 34 mm) and stainless steel (diameter 40 mm), coated with epoxy paint. Electrogalvanization ensures... corrosion resistance and provides a high quality finish. Stainless steel guarantees the longevity and robustness of the equipment over time. The epoxy paint ensures better grip. Read more

The fixing collars

The fixing collars are made of painted aluminium.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The Central Column seating

The Central Column seating is supported by a painted galvanized steel frame structure.

The 70 x 70mm post

The 70 x 70mm post is made of painted galvanised steel, ensuring robustness and durability.

The cap

The cap is made of painted metallic steel.

The polyurethane foam seat

The polyurethane foam seat ensures lasting comfort. Polyurethane foam is a resistant and shape memory material that helps to prevent overheating.

The hydraulic

The hydraulic oil piston is made up of elements manufactured from chrome, aluminium and stainless steel. Users can adjust the resistance from just a few kilogrammes... up to as much as 60kg on certain machines. Read more

The handles

The handles are made of polyvinyl chloride.

The Punching bag,

The Punching bag, which is made of polyurethane foam, is covered in a waterproof cotton canvas material. It is held up with small link stainless steel chains.

The Punching ball,

The Punching ball, which is filled with EPDM aggregates, is covered in a waterproof cotton canvas material.

The smartphone holder

The smartphone holder is made of polyamide for its strength and rigidity.

The Coat Hook

The Coat Hook is made of polypropylene.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
