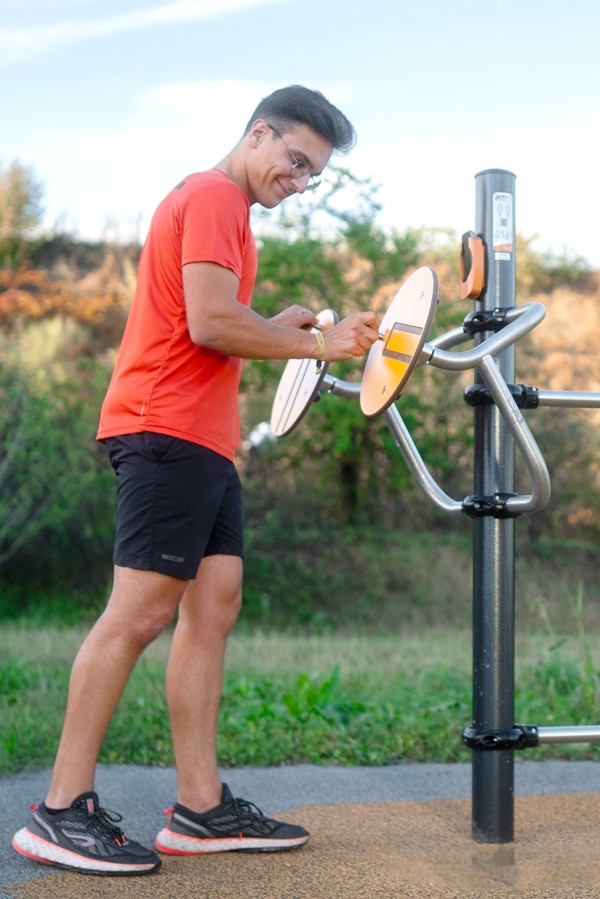

ACTI’Fit - Tai-Chi wheels - J37206®

We have created the reference J37206® in our "ACTI’Fit" range. This activity equipment is accessible from 10 years. It can accommodate up to 1 user.

The size of the module is: 1.02 m length, 0.54 m width, 1.62 m. high.

2 sports activities

spinning
Spinning x2

6 ludo-sport motivations

Application Acti'Fun
Application Acti'Fun
Multimedia
Multimedia
Sensations
Sensations
Progressive design
Progressive design
Sharing
Sharing
Challenge
Challenge
Show more

Specifications

Age range: 10+
Number of users: 1 user
Size: 1.02 x 0.54 x 1.62 m

Equipment installation

Number of installers: 2
Installation time: 01:00:00
Concrete volume: 0.10 m3
Surface: 12.50 m2
Total weight: 33.04 kg
Weight of the heaviest element: 16.22 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - ACTI’Fit - Tai-Chi wheels - J37206®
Video - ACTI’Fit - Tai-Chi wheels - J37206®

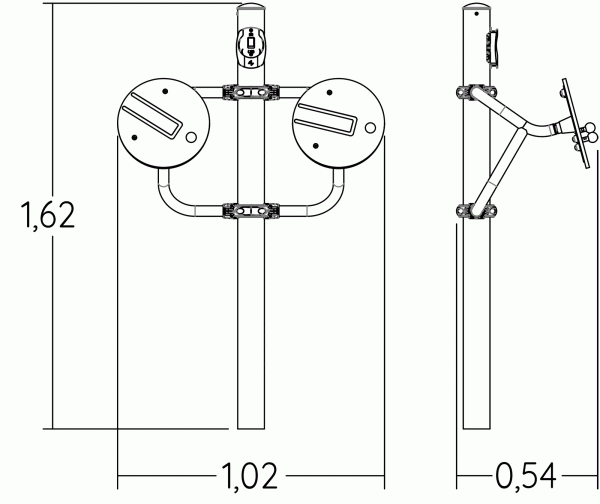

Side view
Side view

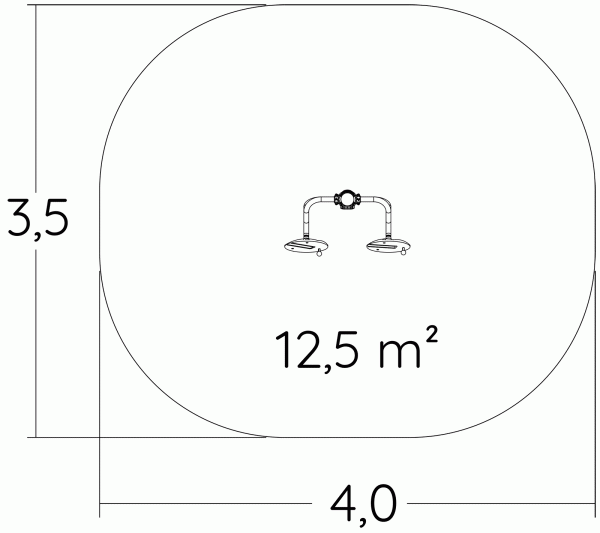

View from above
View from above

Materials

The 125mm diameter post

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The cap is... made of painted aluminium. Read more

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixing collars

The fixing collars are made of painted aluminium.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

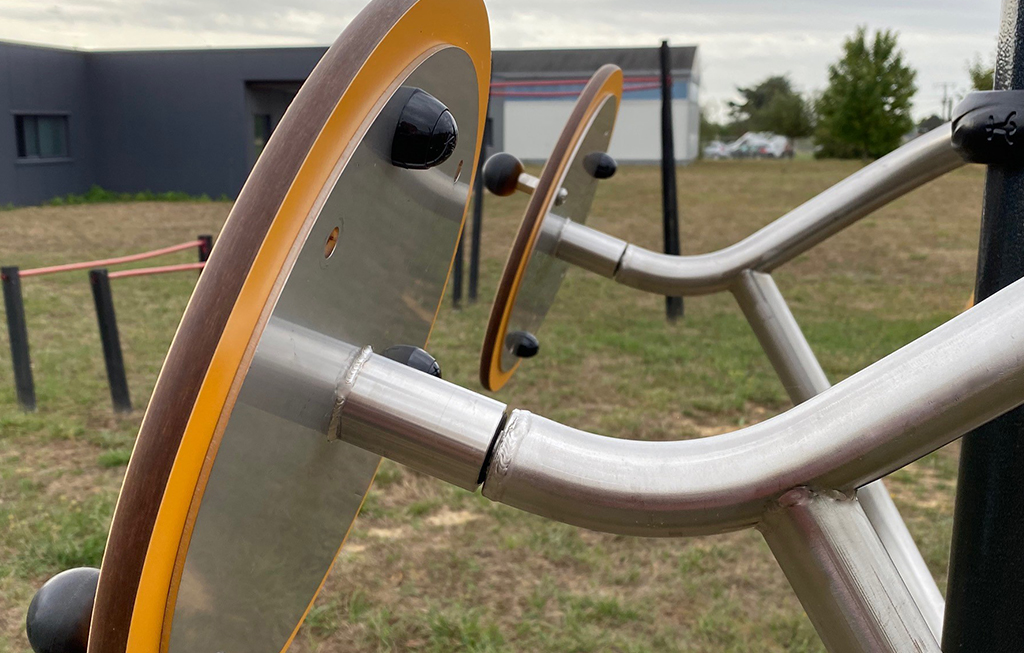

The stainless steel rotation system

The stainless steel rotation system is equipped with bearings.

The smartphone holder

The smartphone holder is made of polyamide for its strength and rigidity.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
