J38122-C - Playgrounds - Multi-play equipment

We have created the reference J38122-C in our "Diabolo" range. This play equipment is accessible from 2 years. It can accommodate up to 25 users.

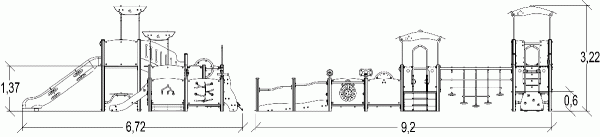

The size of the module is: 9.20 m length, 6.72 m width, 3.22 m. high. The free fall height (FFH) is 1.37 m.

Other finishes available

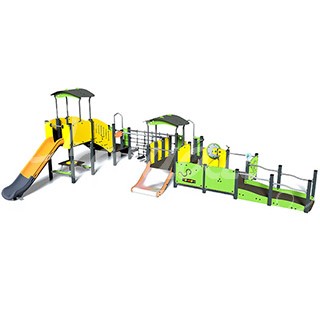

J38122

57 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Role play x10

Role plays promote the child's intellectual and social skills.

Sliding x2

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x10

By playing together, children learn how to interact with other personalities and behaviors.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x10

A great exercise for developing motor skills and abilities in young children while having fun.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Taking shelter x2

A refuge where the children can take shelter ensures that children have their own space.

Thinking x5

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

Tactile stimulation x5

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x4

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x4

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x2

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	2+
Number of users:	25 users
FFH :	1.37 m
Size:	9.20 x 6.72 x 3.22 m

Equipment installation

Number of installers:	3
Installation time:	55:00:00
Concrete volume:	0.96 m3

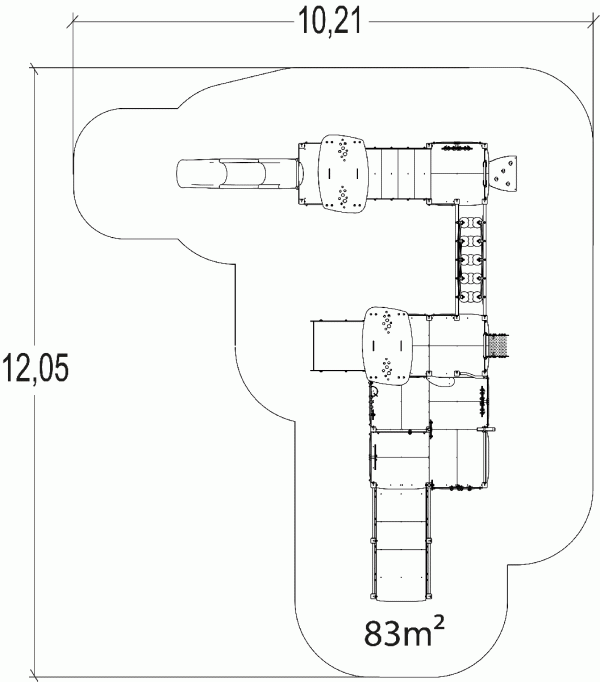

Surface:	83.00 m2
Total weight:	1349.45 kg
Weight of the heaviest element:	29.08 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The roof is made of 10mm thick polyethylene plates.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The sliding surfaces are made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The Kayak slide is made of rotomoulded polyethylene.

The steps of the catwalk are made with a non-slip rubber overmould.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
