Diabolo - J38126-C

We have created the reference J38126-C in our "Diabolo" range. This play equipment is accessible from 2 years. It can accommodate up to 15 users.

The size of the module is: 5.49 m length, 2.56 m width, 1.69 m. high. The free fall height (FFH) is 1.00 m.

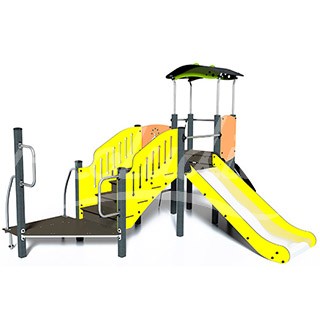

Other finishes available

J38126

24 play functions

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

By playing together, children learn how to interact with other personalities and behaviors.

Handling x6

A great exercise for developing motor skills and abilities in young children while having fun.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Thinking x2

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

Tactile stimulation x5

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x3

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x2

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Role play x1

Role plays promote the child's intellectual and social skills.

Specifications

Age range:	2+
Number of users:	15 users
FFH :	1.00 m
Size:	5.49 x 2.56 x 1.69 m

Equipment installation

Number of installers:	2
Installation time:	12:00:00
Concrete volume:	0.50 m3
Surface:	34.50 m2
Total weight:	323.50 kg
Weight of the heaviest element:	17.17 kg

Environmental Indicators

Repairability

9.43 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

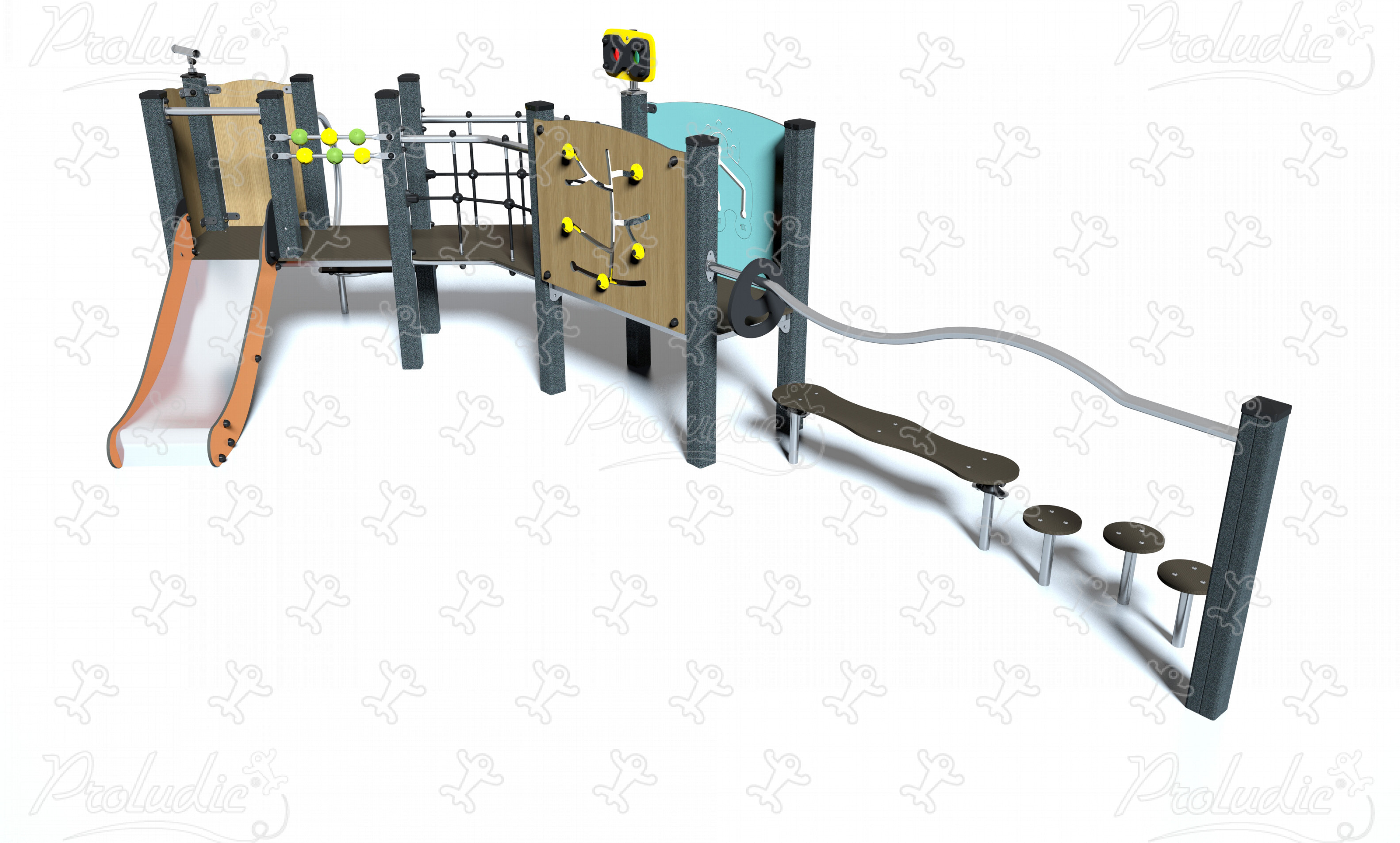

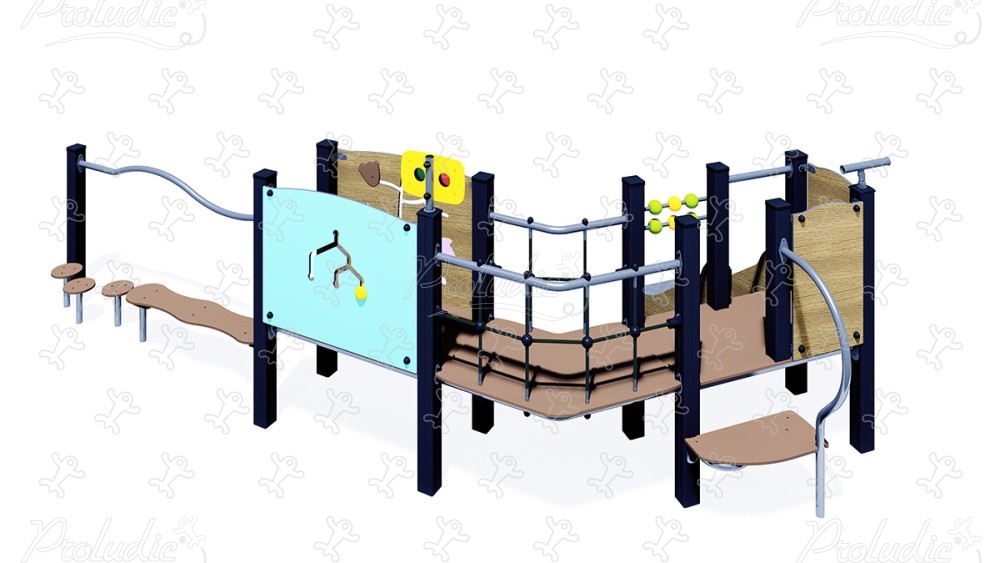

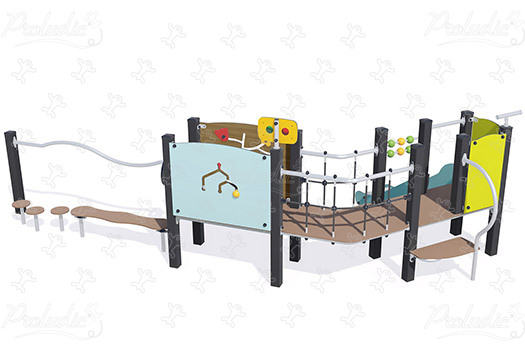

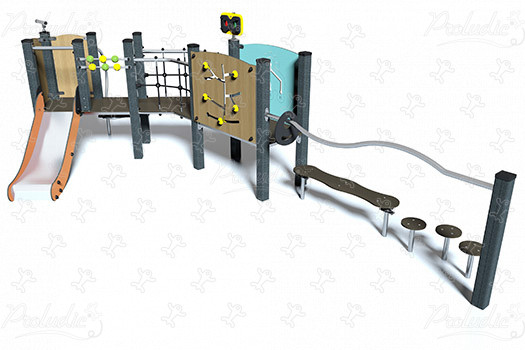

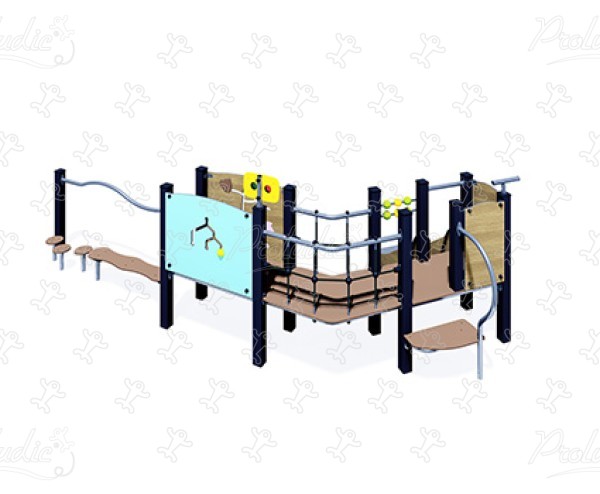

J38126-C playgrounds multiplay equipment diabolo image 3d

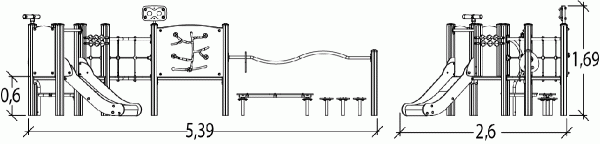

J38126-C playgrounds multiplay equipment diabolo image side view

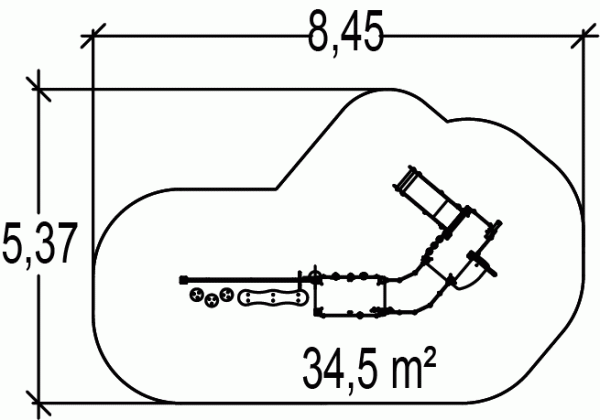

J38126-C playgrounds multiplay equipment diabolo image view from above

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
