Green multiplay equipment with climbing activities, elevated playhouse, and slide - J38551

We have created the reference J38551 in our "Adventure" range. This play equipment is accessible from 3 years. It can accommodate up to 15 users.

The size of the module is: 2.85 m length, 5.16 m width, 3.38 m. high. The free fall height (FFH) is 2.60 m.

6 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Specifications

Age range:	3+
Number of users:	15 users
FFH :	2.60 m
Size:	2.85 x 5.16 x 3.38 m

Equipment installation

Number of installers:	2
Installation time:	10:00:00
Concrete volume:	0.30 m3

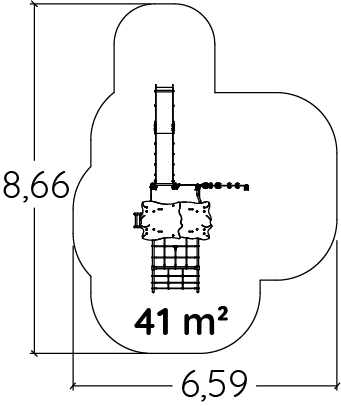

Surface:	41.00 m2
Total weight:	370.72 kg
Weight of the heaviest element:	33.87 kg

Environmental Indicators

Repairability

9.43 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

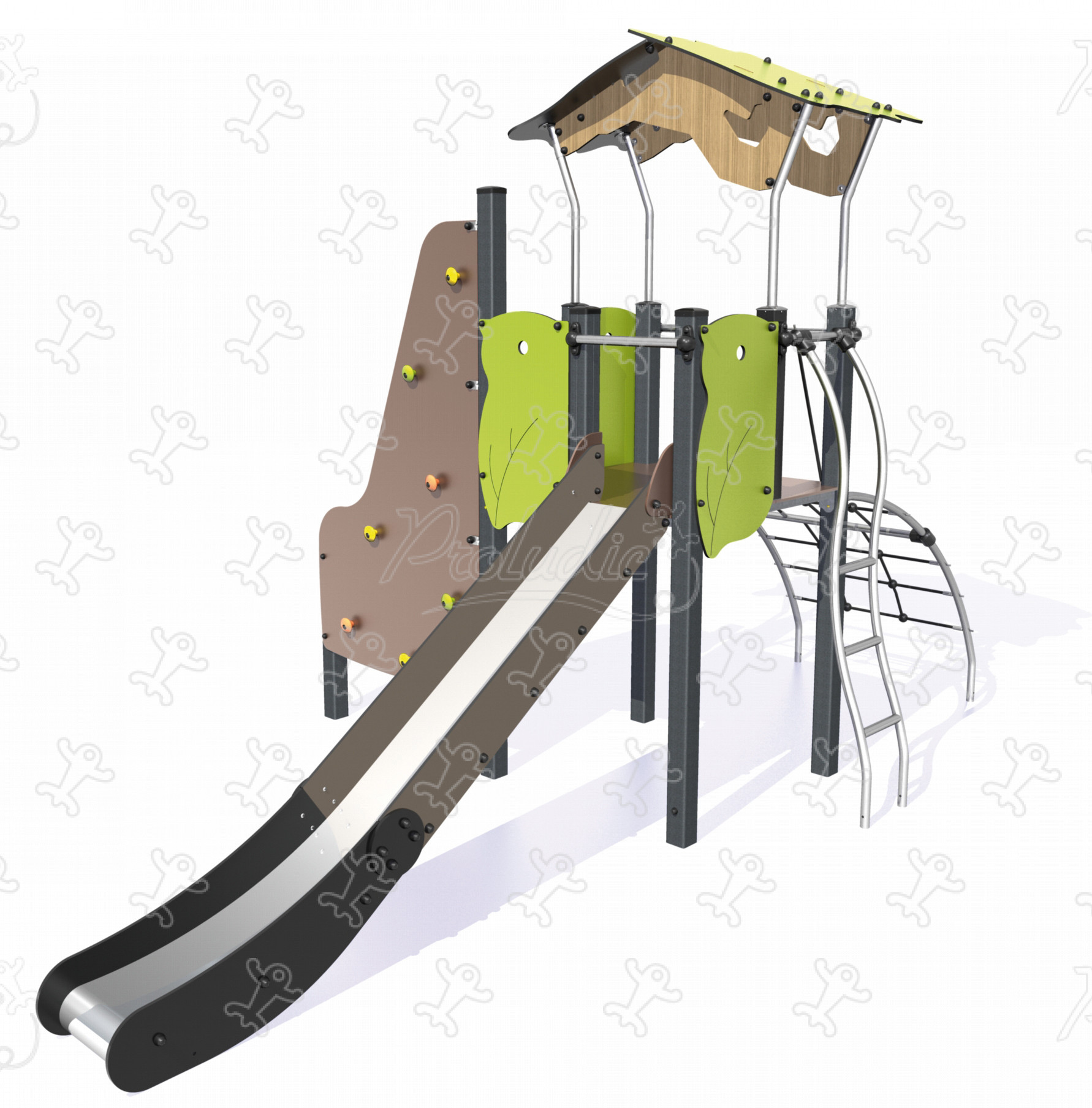

J38551 playgrounds themed playground equipment adventure image 3d

J38551 playgrounds themed playground equipment adventure image side view

J38551 playgrounds themed playground equipment adventure image view from above

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
