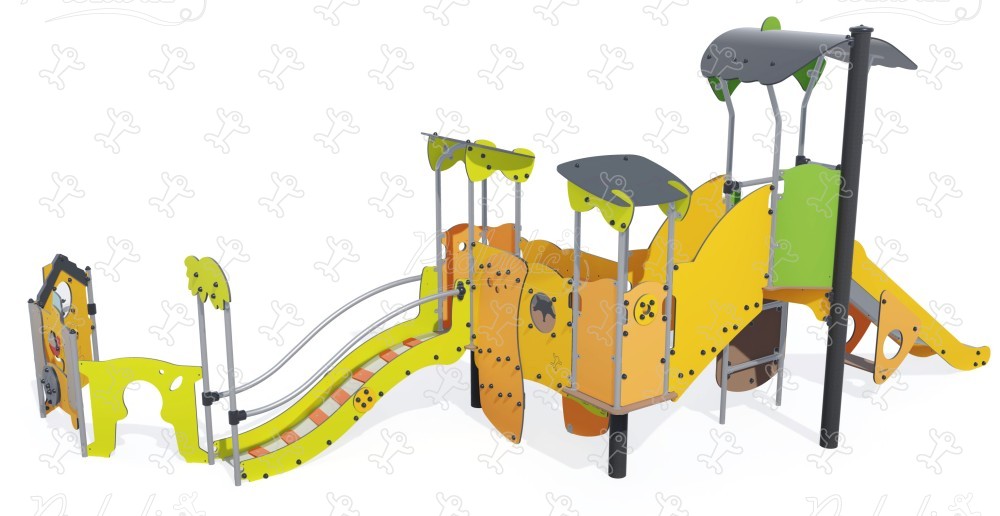

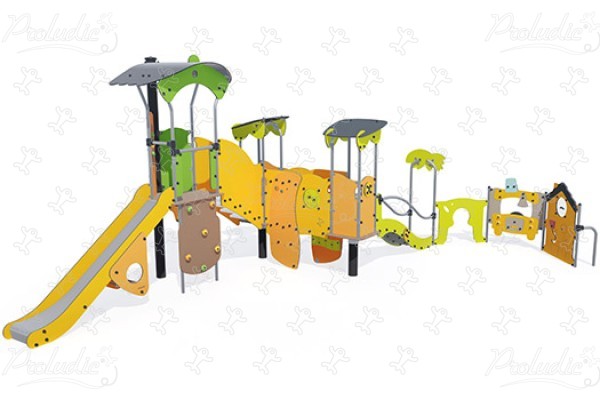

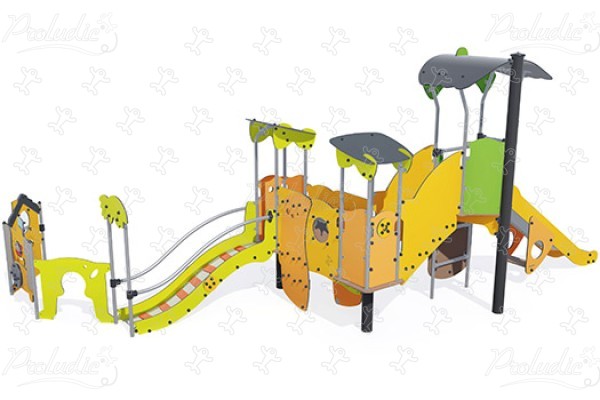

We have created the reference J38708® in our "Diabolo Baby" range. This play equipment is accessible from 2 years. It can accommodate up to 28 users.

The size of the module is: 6.86 m length, 4.81 m width, 2.93 m. high. The free fall height (FFH) is 1.17 m.

Other finishes available

49 play functions

climbing
Climbing x1
Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.
role play
Role play x5
Role plays promote the child's intellectual and social skills.
sliding
Sliding x1
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x6
By playing together, children learn how to interact with other personalities and behaviors.
resting
Resting x1
By resting, the child can recover from their exertions and improve their concentration before starting to play again.
handling
Handling x4
A great exercise for developing motor skills and abilities in young children while having fun.
crawling
Crawling x3
Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.
hiding
Hiding x2
Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.
taking shelter
Taking shelter x3
A refuge where the children can take shelter ensures that children have their own space.
thinking
Thinking x3
Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.
sound stimulation
Sound stimulation x1
Popular and often shared by numerous children, fun sound activities bring even more life to play areas!
tactile stimulation
Tactile stimulation x7
Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.
visual stimulation
Visual stimulation x6
It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.
climbing
Climbing x3
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
getting across
Getting across x3
 Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.
Show more

Specifications

Age range: 2+
Number of users: 28 users
FFH : 1.17 m
Size: 6.86 x 4.81 x 2.93 m

Equipment installation

Number of installers: 2
Installation time: 15:00:00
Concrete volume: 0.44 m3
Surface: 47.50 m2
Total weight: 474.33 kg
Weight of the heaviest element: 17.28 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

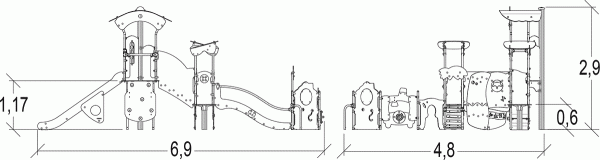

Side view
Side view

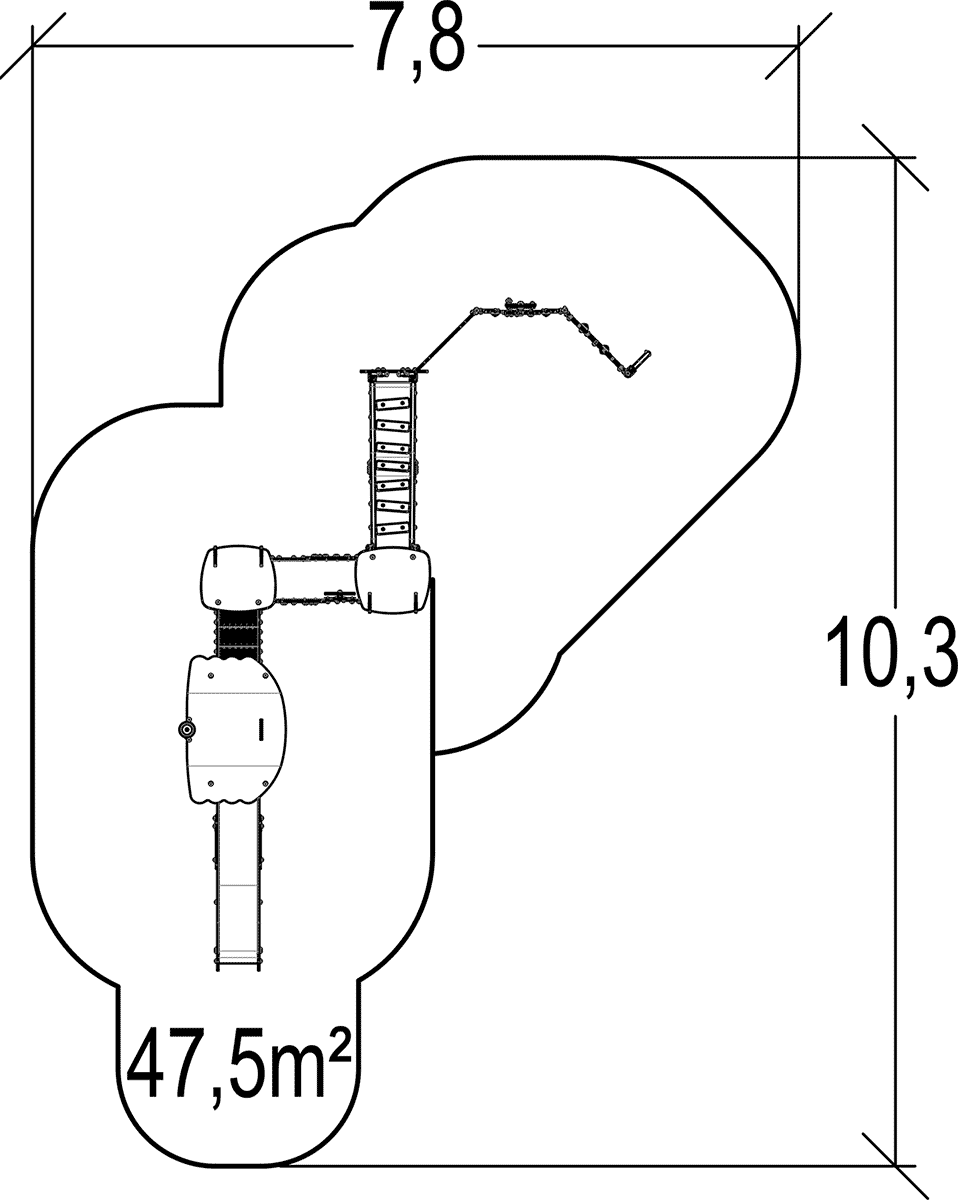

View from above
View from above

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms and the climbing wall

The platforms and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The 60cm wide walkway

The 60cm wide walkway is made of a beveled aluminum treadplate.

The baby-step Hill stairs

The baby-step Hill stairs are machined in 20mm thick polyethelyne anti-slip panels which are fitted to a polyester ramp.

The roof of the 1.17m platform

The roof of the 1.17m platform is made of 10mm thick polyethylene plates.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The sliding surface

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The climbing holds

The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant.

The abacus spheres

The abacus spheres are made of polycarbonate sheets.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
