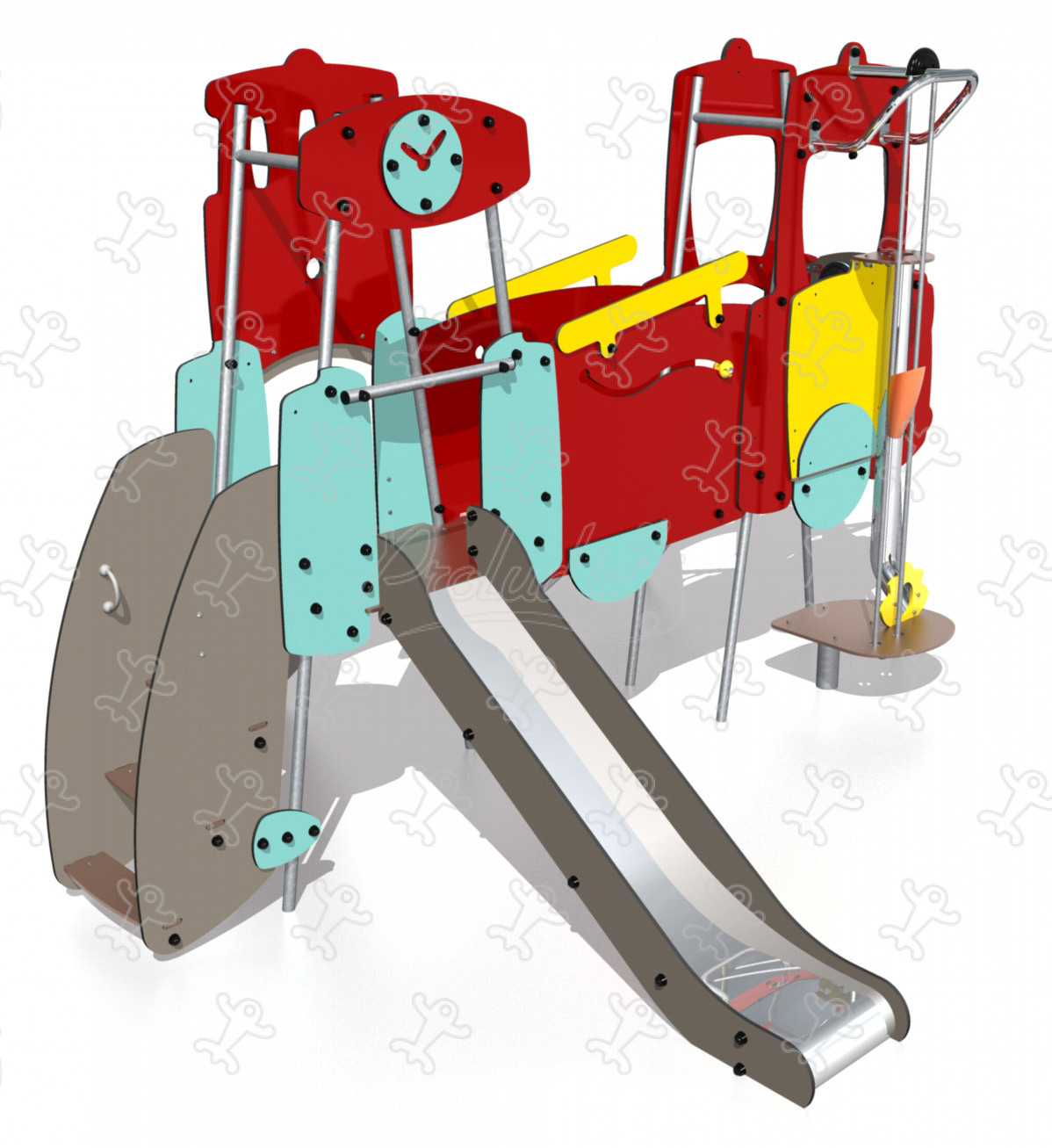

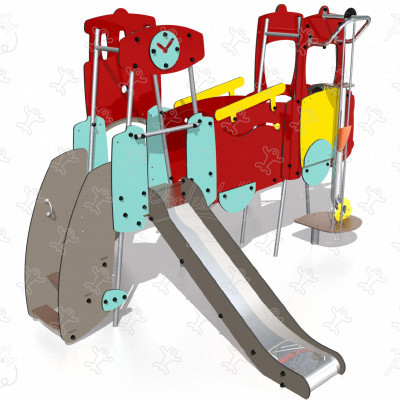

We have created the reference J4030 in our "City" range. This play equipment is accessible from 2 years. It can accommodate up to 15 users.

The size of the module is: 3.85 m length, 3.26 m width, 2.58 m. high. The free fall height (FFH) is 1.00 m.

9 play functions

climbing
Climbing x1
Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.
role play
Role play x1
Role plays promote the child's intellectual and social skills.
sliding
Sliding x1
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x2
By playing together, children learn how to interact with other personalities and behaviors.
handling
Handling x1
A great exercise for developing motor skills and abilities in young children while having fun.
visual stimulation
Visual stimulation x1
It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.
climbing
Climbing x2
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
Show more

Specifications

Age range: 2+
Number of users: 15 users
FFH : 1.00 m
Size: 3.85 x 3.26 x 2.58 m

Equipment installation

Number of installers: 2
Installation time: 16:00:00
Concrete volume: 0.50 m3
Surface: 36.00 m2
Total weight: 360.52 kg
Weight of the heaviest element: 16.53 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

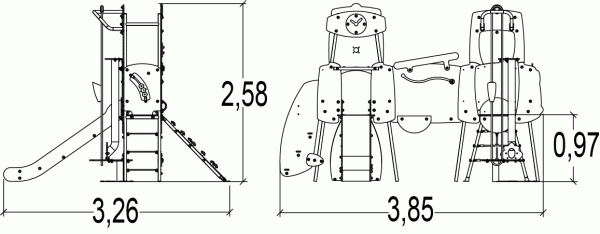

Side view
Side view

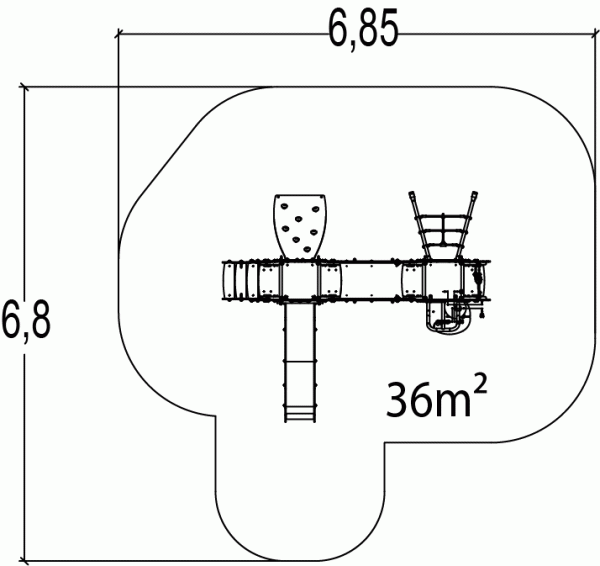

View from above
View from above

Materials

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more

The steps and the inclined element

The steps and the inclined element are made from a 12.5mm thick, textured, non-slip compact material (HPL).

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The sliding surface

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The climbing holds

The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant.

The abacus spheres

The abacus spheres are made of polycarbonate sheets.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
