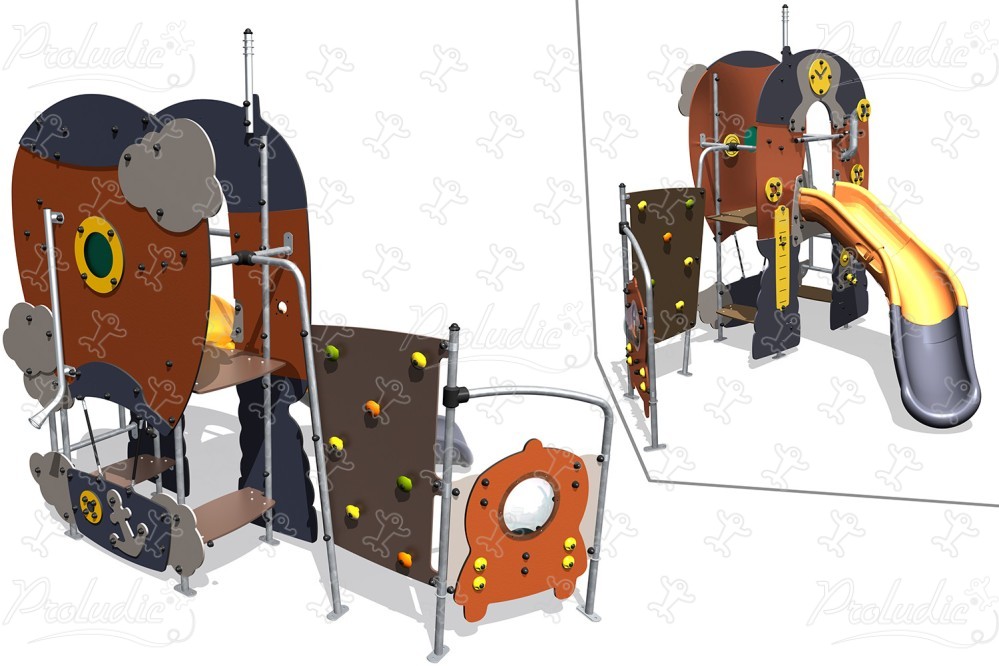

We have created the reference J4072 in our "Metropolis" range. This play equipment is accessible from 2 years. It can accommodate up to 16 users.

The size of the module is: 3.34 m length, 3.00 m width, 2.95 m. high. The free fall height (FFH) is 1.80 m.

Specifications

Age range: 2+
Number of users: 16 users
FFH : 1.80 m
Size: 3.34 x 3.00 x 2.95 m

Equipment installation

Number of installers: 2
Installation time: 08:00:00
Concrete volume: 0.30 m3
Surface: 30.00 m2
Total weight: 331.02 kg
Weight of the heaviest element: 20.20 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

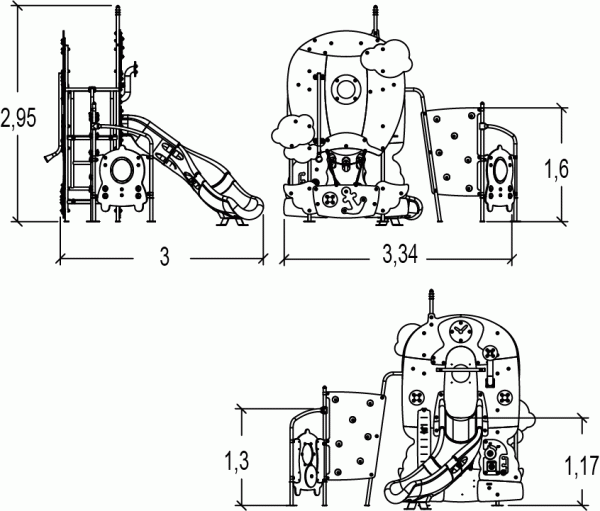

Side view
Side view

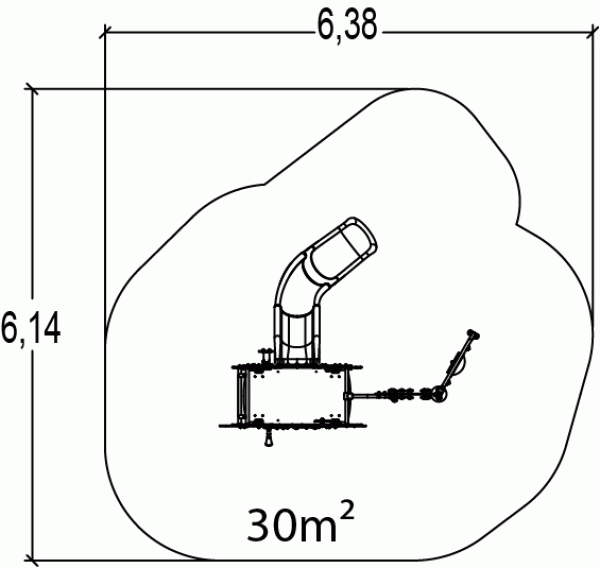

View from above
View from above

Materials

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

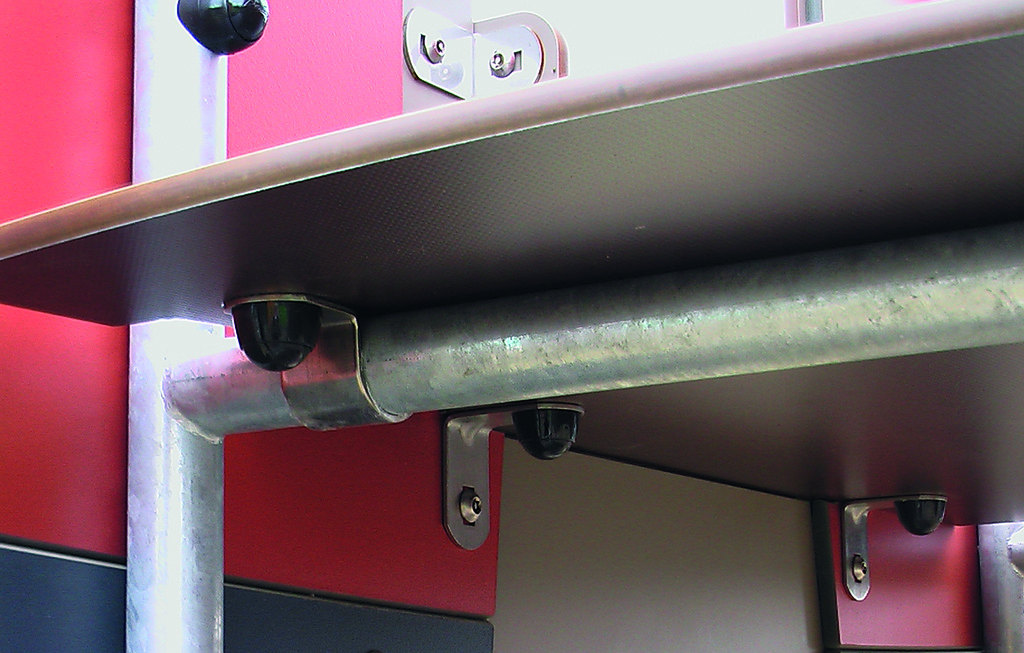

The platforms

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more

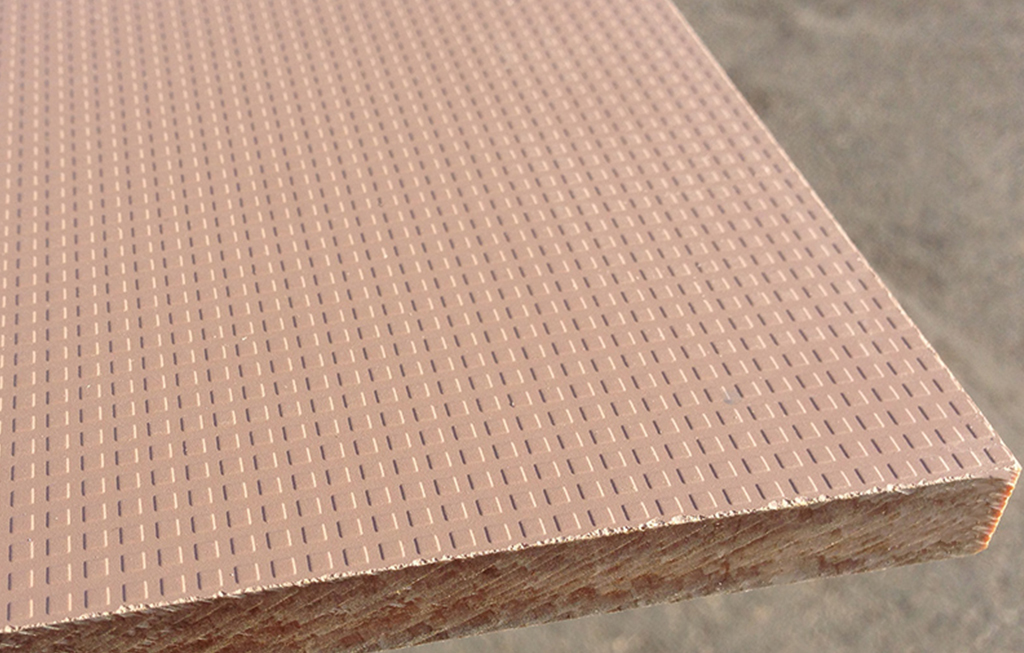

The climbing wall

The climbing wall is made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter rope

The 16mm diameter rope is made of galvanised steel cable covered with polyester.

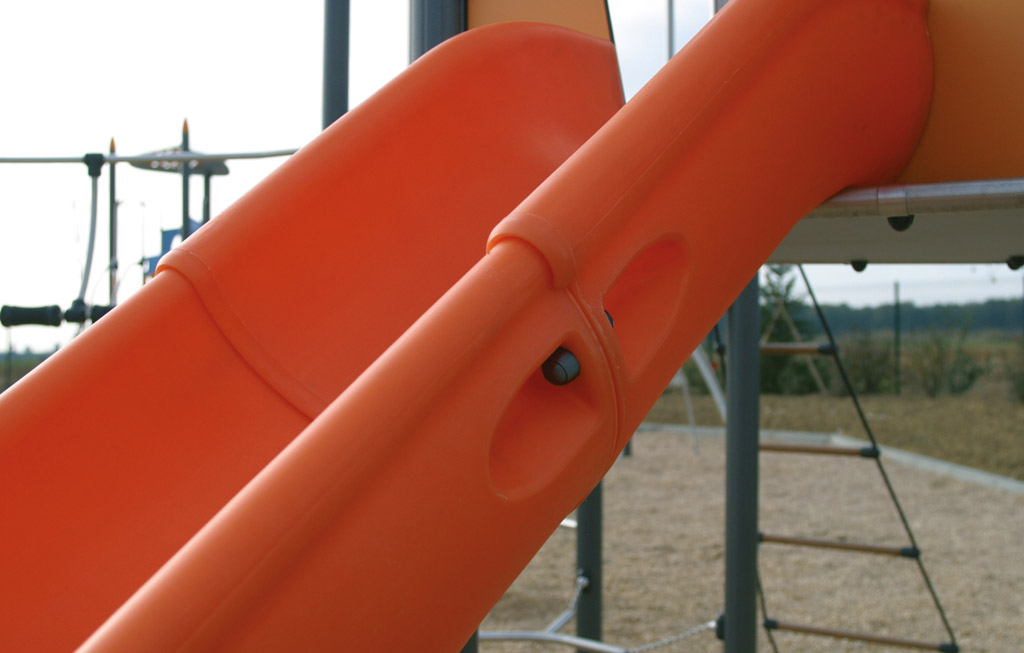

The Kayak slide

The Kayak slide is made of rotomoulded polyethylene.

Plastic parts

Plastic parts are made of injected polyamide.

The climbing holds

The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
