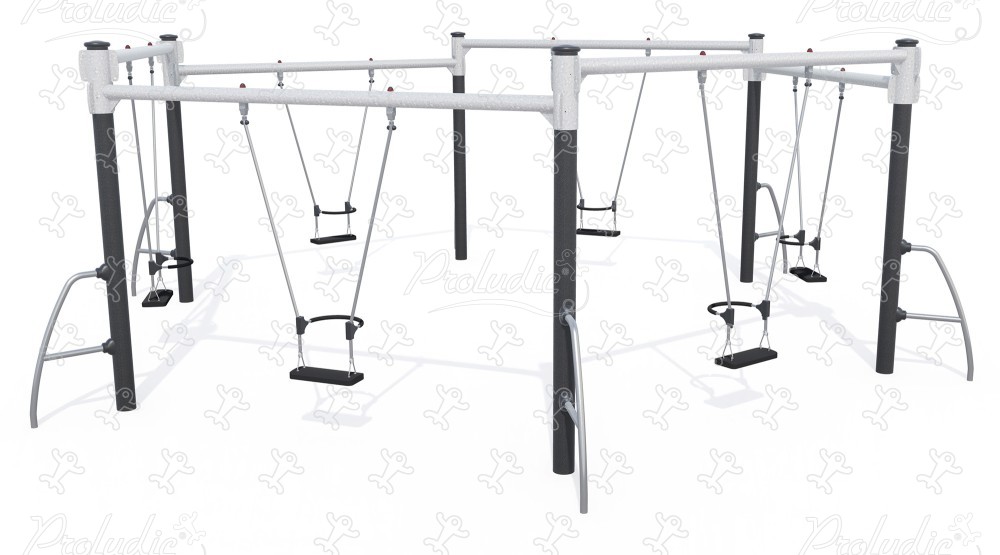

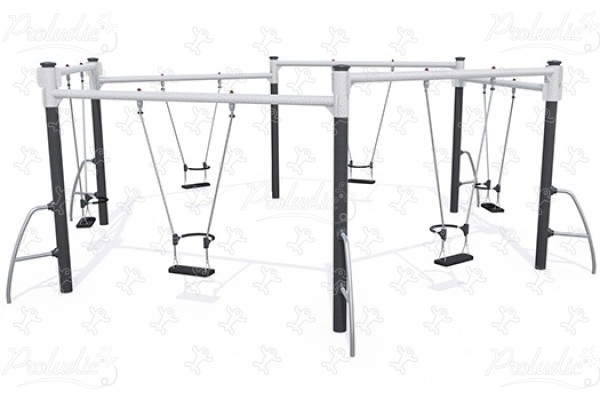

We have created the reference J483 in our "Swings" range. This play equipment is accessible from 3 years. It can accommodate up to 6 users.

The size of the module is: 6.45 m length, 7.45 m width, 2.45 m. high. The free fall height (FFH) is 1.40 m.

2 play functions

Swinging x1
To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.
Meeting x1
By playing together, children learn how to interact with other personalities and behaviors.


Age range: 3+
Number of users: 6 users
FFH : 1.40 m
Size: 6.45 x 7.45 x 2.45 m

Equipment installation

Number of installers: 2
Installation time: 03:30:00
Concrete volume: 0.54 m3
Surface: 58.50 m2
Total weight: 354.49 kg
Weight of the heaviest element: 30.91 kg

Environmental Indicators



9.29 /10


The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

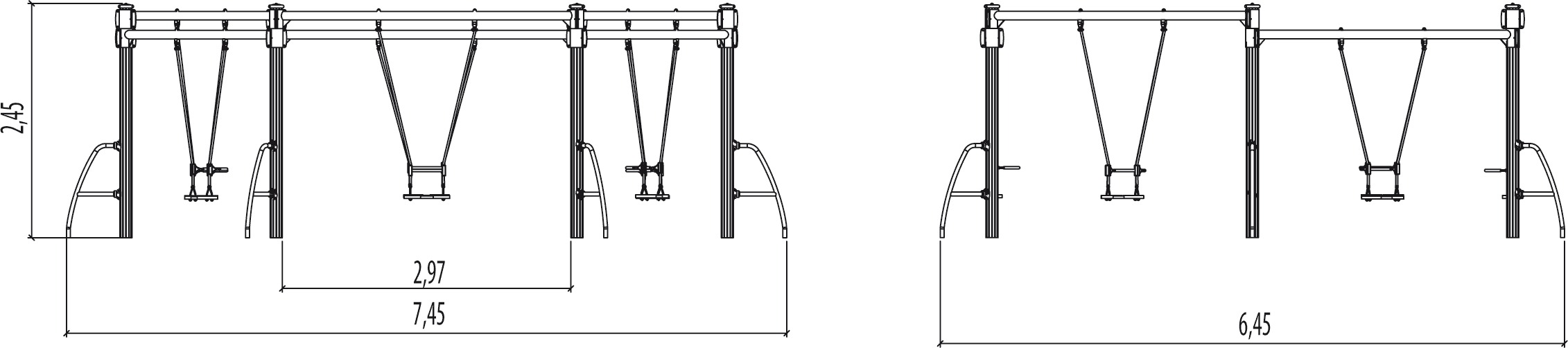

Side view
Side view

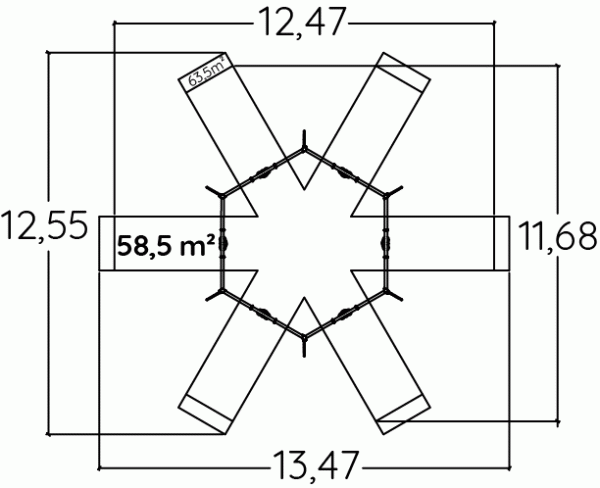

View from above
View from above


The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The horizontal beams of the swings

The horizontal beams of the swings are made of non-painted galvanised steel.

The swing bearings

The swing bearings are made of stainless steel.

The swing seats

The swing seats are made of shock absorbing moulded honeycomb rubber. The swing chains are made of stainless steel. The seat fixing brackets are made of 10mm... stainless steel wire. PVC sliding rings are fitted to limit the wear of the metal parts over time. The rings are accessed by a vandal proof, stainless steel shackle. Read more

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
