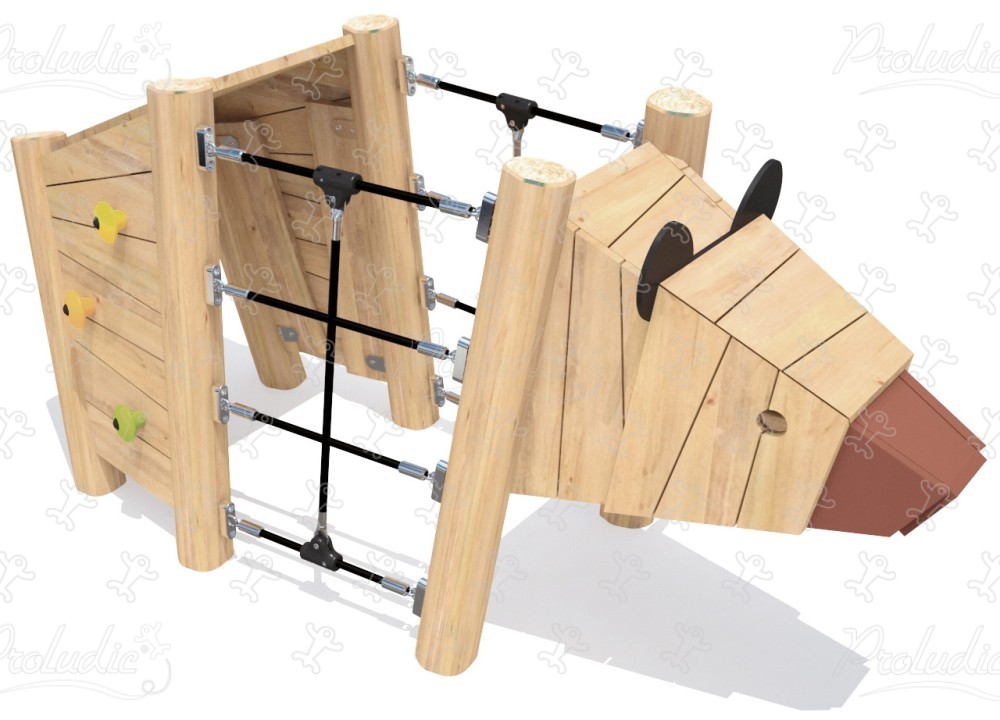

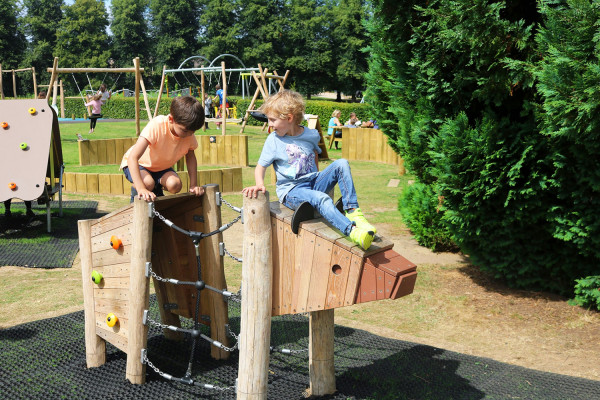

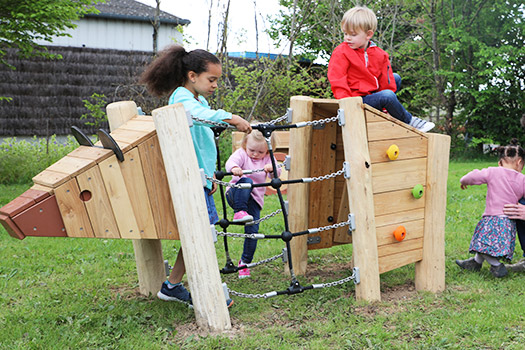

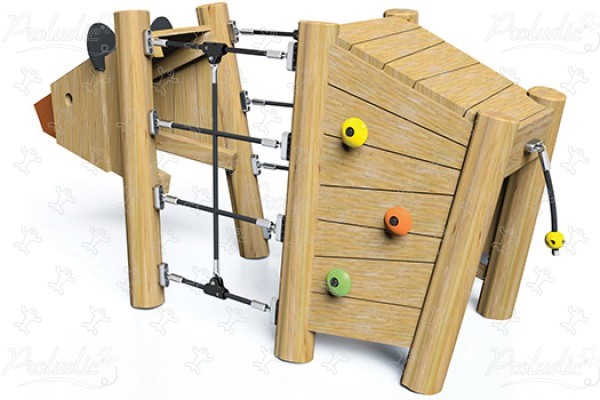

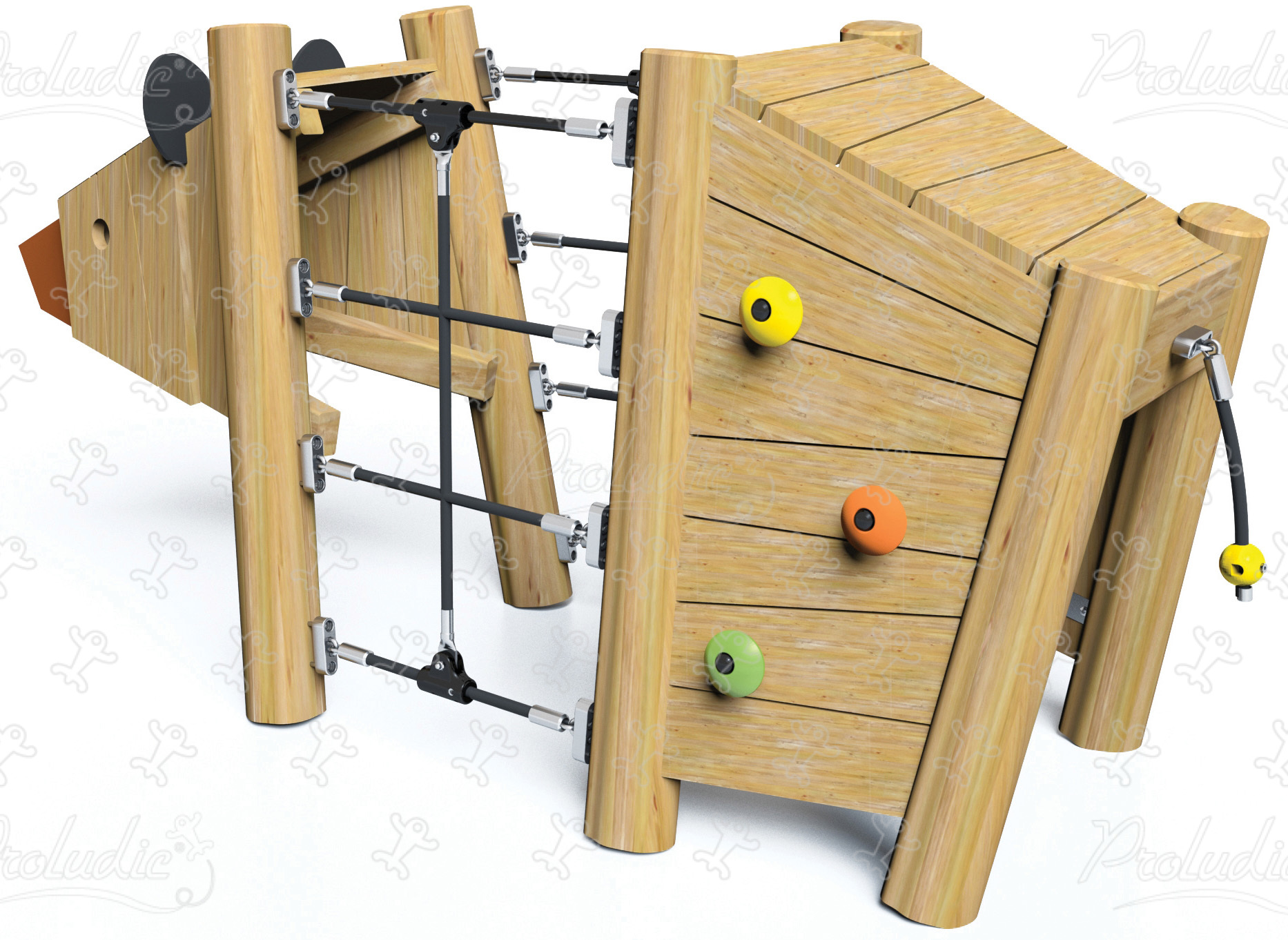

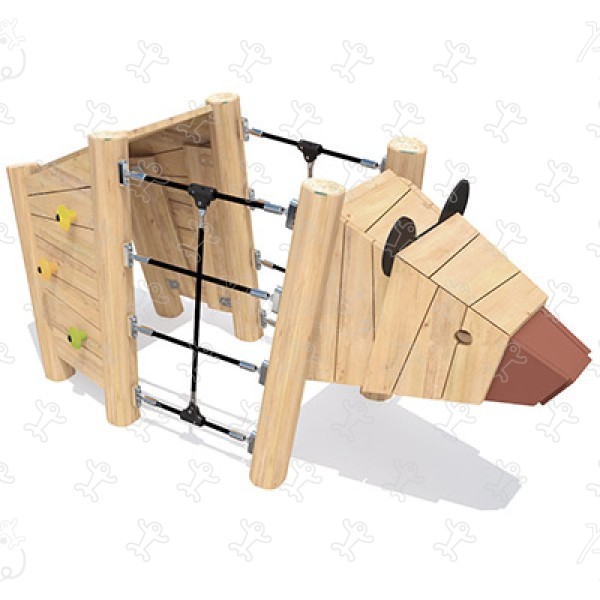

J49104 - Playgrounds - Balancing and climbing equipment, Origin' - Climbing equipment, Origin' themed equipment, Traditional equipment

We have created the reference J49104® in our "Climbing equipment" range. This play equipment is accessible from 2 years. It can accommodate up to 6 users.

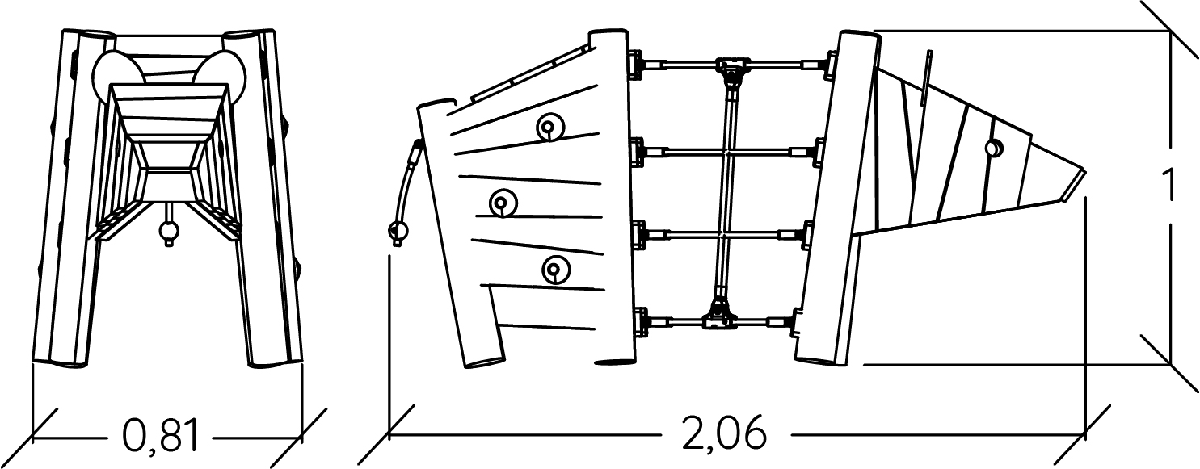

The size of the module is: 2.06 m length, 0.81 m width, 1.00 m. high. The free fall height (FFH) is 1.00 m.

6 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Role play x1

Role plays promote the child's intellectual and social skills.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Specifications

Age range:	2+
Number of users:	6 users
FFH :	1.00 m
Size:	2.06 x 0.81 x 1.00 m

Equipment installation

Number of installers:	2
Installation time:	01:00:00
Concrete volume:	0.20 m3
Surface:	17.50 m2
Total weight:	142.41 kg
Weight of the heaviest element:	135.00 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

Materials

The 120 to 140mm diameter posts are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The boards are made from sap free robinia (plank sizes: 22 / 27mm). The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does... not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. The coloured panels are using a staining process. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
