Adventures in nature - Flower - J49130®

We have created the reference J49130® in our "Adventures in nature" range. This play equipment is accessible from 2 years. It can accommodate up to 28 users.

The size of the module is: 4.00 m length, 4.00 m width, 0.60 m. high. The free fall height (FFH) is 0.60 m.

Specifications

Age range: 2+
Number of users: 28 users
FFH : 0.60 m
Size: 4.00 x 4.00 x 0.60 m

Equipment installation

Number of installers: 2
Installation time: 06:00:00
Concrete volume: 0.52 m3
Surface: 38.50 m2
Total weight: 555.15 kg
Weight of the heaviest element: 513.01 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view

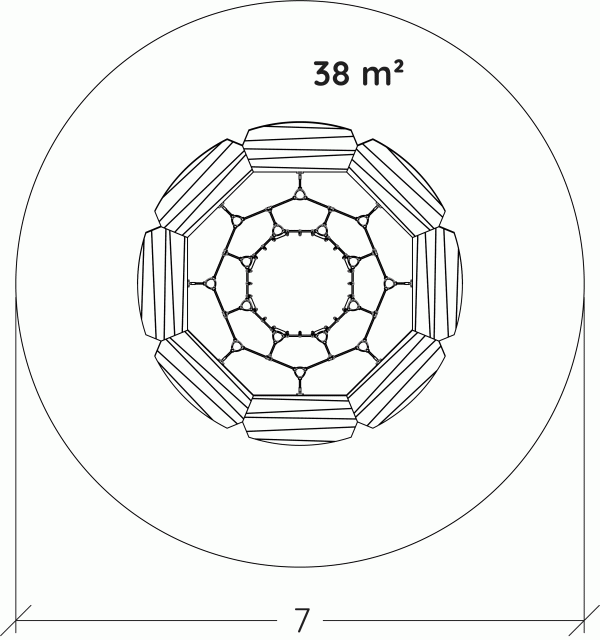

View from above
View from above

Materials

The posts with average diameter 120 to 140mm

The posts with average diameter 120 to 140mm are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

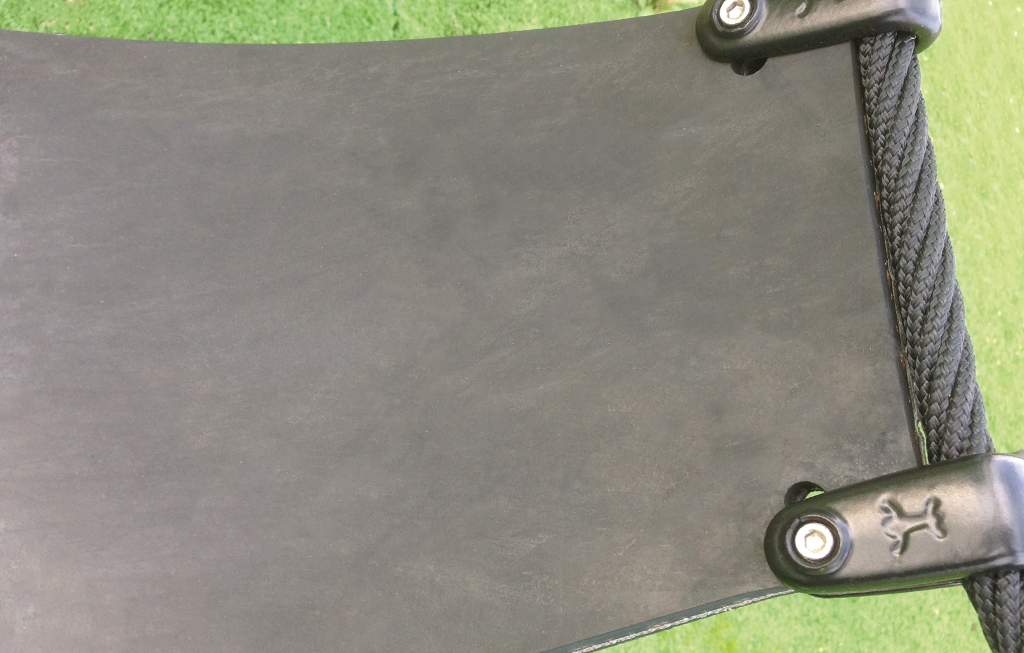

The seat

The seat is made from rubber, 13mm thick.

The 16mm diameter rope

The 16mm diameter rope is made of galvanised steel cable covered with polyester.

The fixings for the nets and chains

The fixings for the nets and chains are made from aluminium.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.

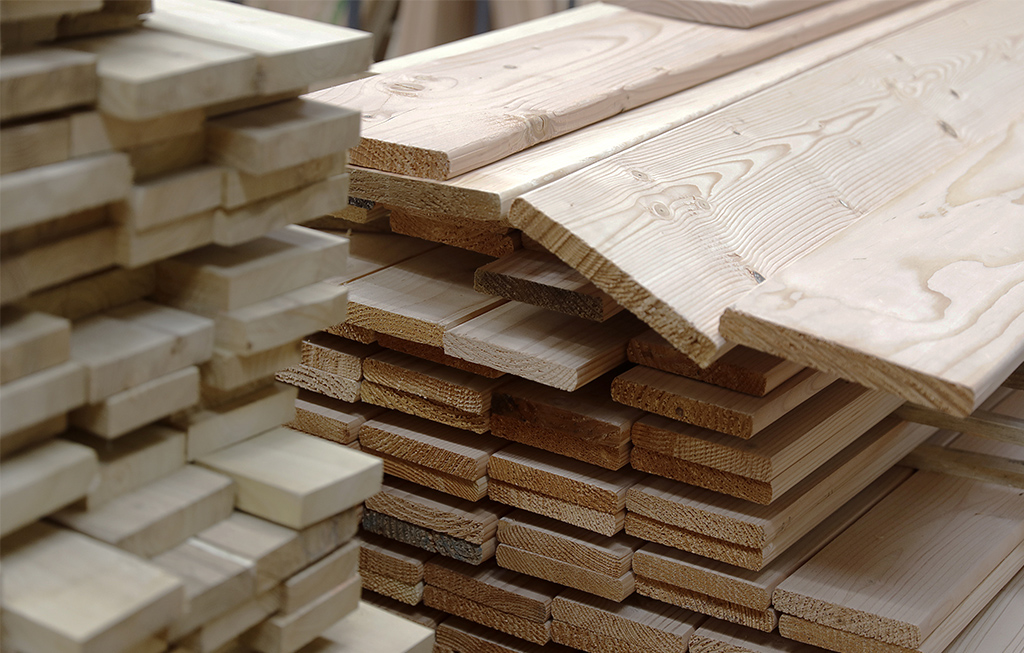

The boards

The boards are made from sap free robinia (plank sizes: 22 and 27mm). The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does... not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more
