The net J49144 - Playgrounds - Origin' - Climbing and balancing trails

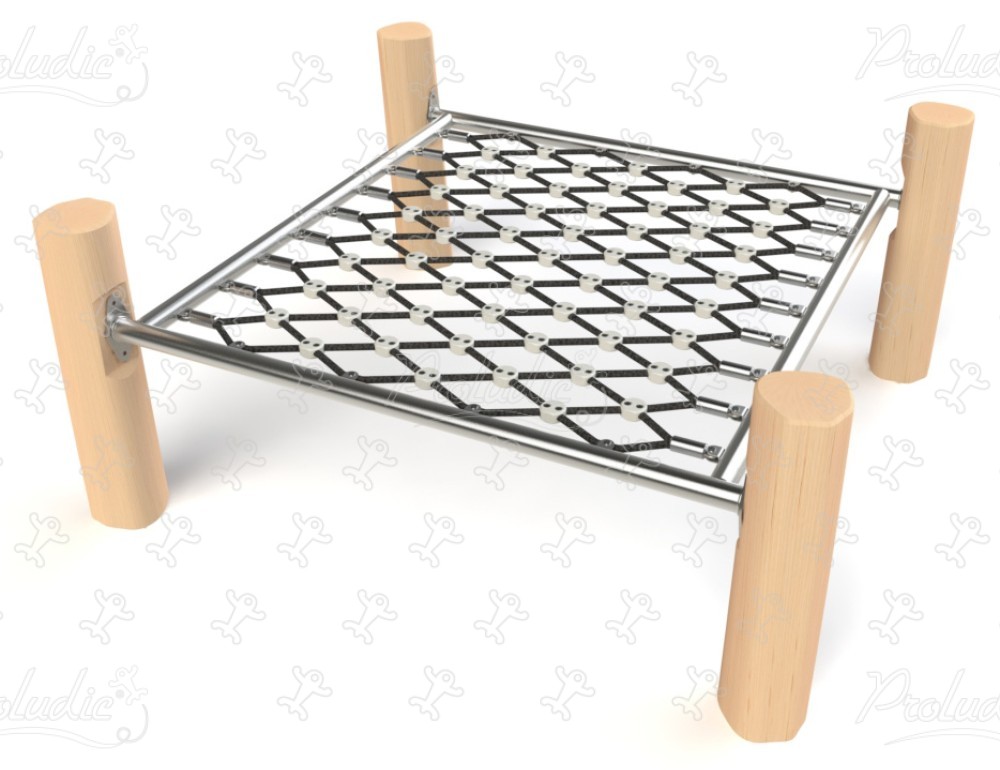

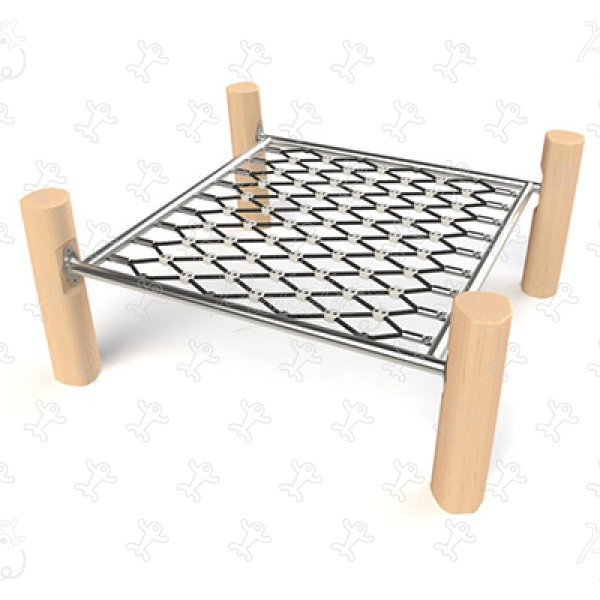

The net

We have created the reference J49144® in our "Climbing and balancing trails" range. This play equipment is accessible from 2 years. It can accommodate up to 4 users.

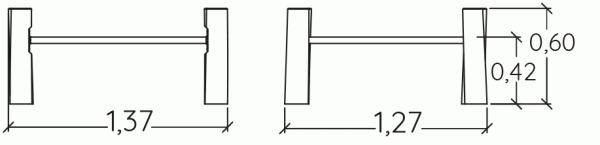

The size of the module is: 1.36 m length, 1.26 m width, 0.60 m. high. The free fall height (FFH) is 0.60 m.

4 play functions

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	2+
Number of users:	4 users
FFH :	0.60 m
Size:	1.36 x 1.26 x 0.60 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.26 m3

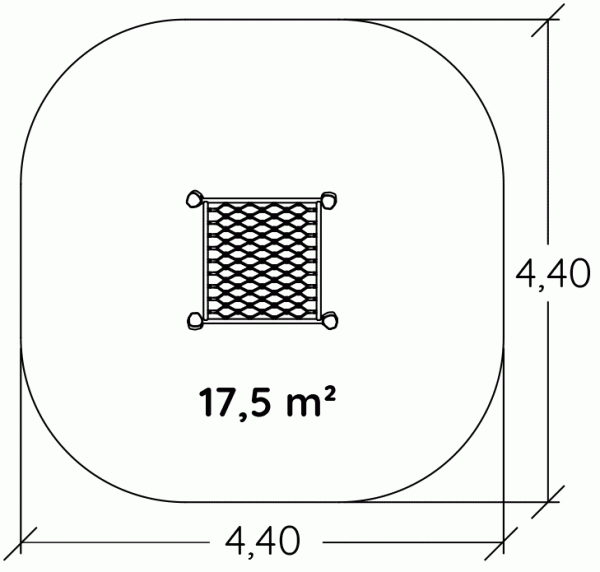

Surface:	17.50 m2
Total weight:	74.57 kg
Weight of the heaviest element:	17.21 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

Materials

The 120 to 140mm diameter posts are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more
