Multi play structures - J4930

We have created the reference J4930 in our "Multi play structures" range. This play equipment is accessible from 2 years. It can accommodate up to 8 users.

The size of the module is: 3.09 m length, 2.45 m width, 2.93 m. high. The free fall height (FFH) is 1.00 m.

Standard Product

Complete documentation, TÜV certification issued.

Other finishes available

J4930-V

4 play functions

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Specifications

Age range:	2+
Number of users:	8 users
FFH :	1.00 m
Size:	3.09 x 2.45 x 2.93 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Surface:	24.00 m2
Total weight:	303.50 kg
Weight of the heaviest element:	53.27 kg

Environmental Indicators

Repairability

8.98 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

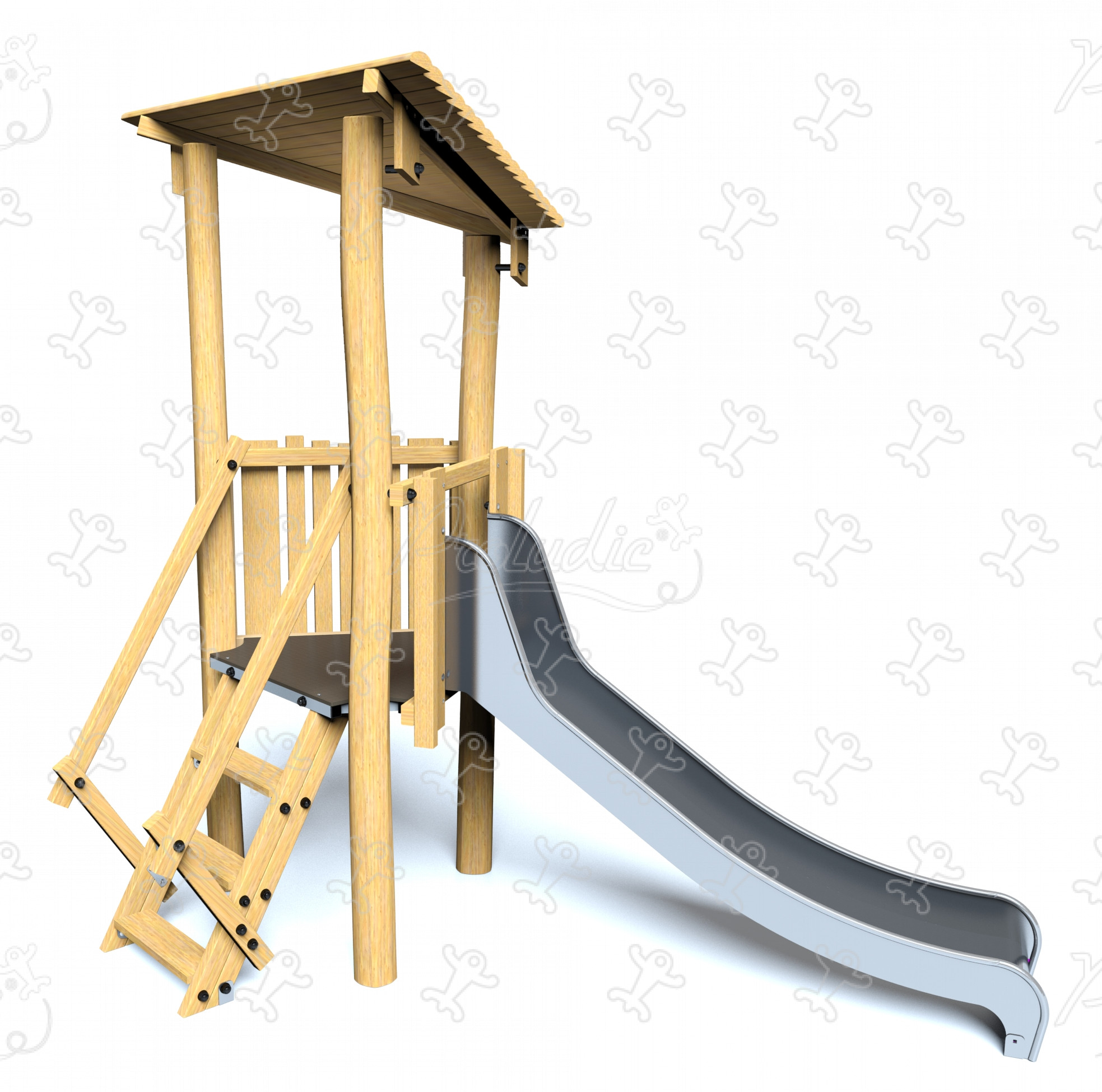

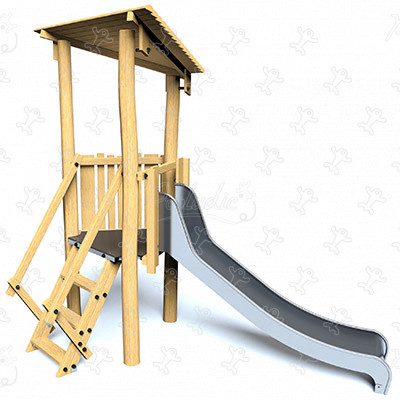

J4930 playgrounds multiplay equipment multi play structures image 3d

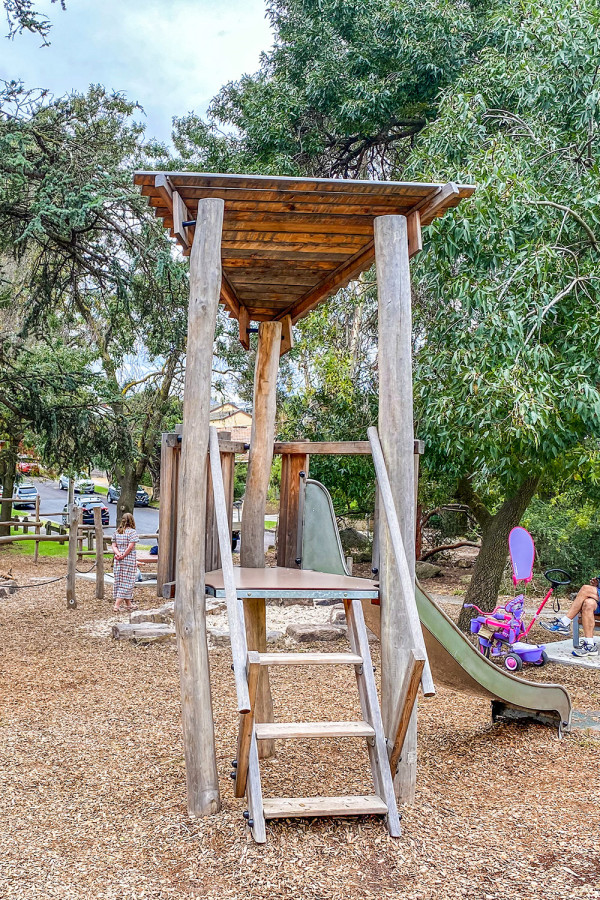

J4930 playgrounds multiplay equipment multi play structures image photo

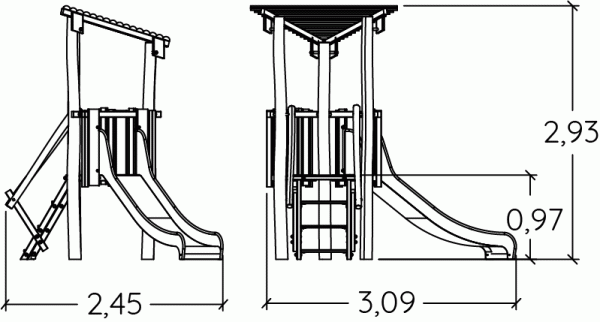

J4930 playgrounds multiplay equipment multi play structures image side view

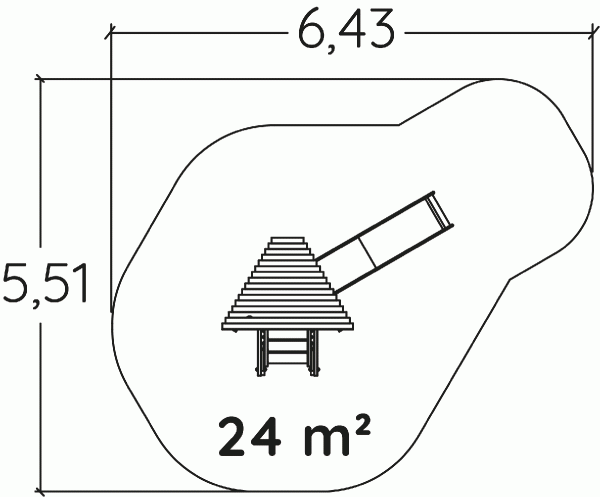

J4930 playgrounds multiplay equipment multi play structures image view from above

Materials

The different posts (average diameter: 60 to 80mm / 100 to 120mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed.... Robinia is naturally rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more

The panels and the steps are made from natural Robinia wood or Douglas fir (plank sizes 140 x 27mm / 45 x 68mm). Robinia wood or Douglas fir is naturally resistant and long... lasting. Read more
