Wooden multiplay equipment with slides, climbing walls, and tunnel - J4939

We have created the reference J4939 in our "Multi play structures" range. This play equipment is accessible from 2 years. It can accommodate up to 24 users.

The size of the module is: 10.05 m length, 6.62 m width, 3.34 m. high. The free fall height (FFH) is 2.30 m.

Standard Product

Complete documentation, TÜV certification issued.

Other finishes available

J4939-V

20 play functions

Role play x2

Role plays promote the child's intellectual and social skills.

Sliding x2

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x4

By playing together, children learn how to interact with other personalities and behaviors.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Taking shelter x2

A refuge where the children can take shelter ensures that children have their own space.

Climbing x4

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x3

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Specifications

Age range:	2+
Number of users:	24 users
FFH :	2.30 m
Size:	10.05 x 6.62 x 3.34 m

Equipment installation

Number of installers:	3
Installation time:	20:00:00
Concrete volume:	0.13 m3
Surface:	73.00 m2
Total weight:	1092.86 kg
Weight of the heaviest element:	57.68 kg

Environmental Indicators

Repairability

8.98 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

J4939 playgrounds multiplay equipment multi play structures video

J4939 playgrounds multiplay equipment multi play structures image 3d

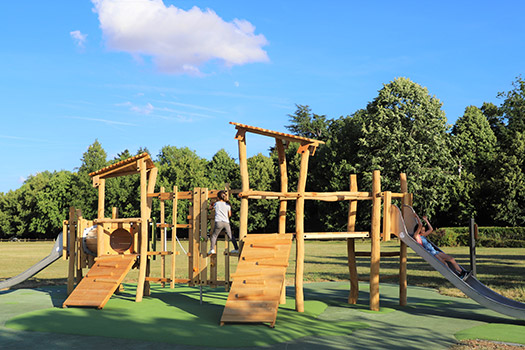

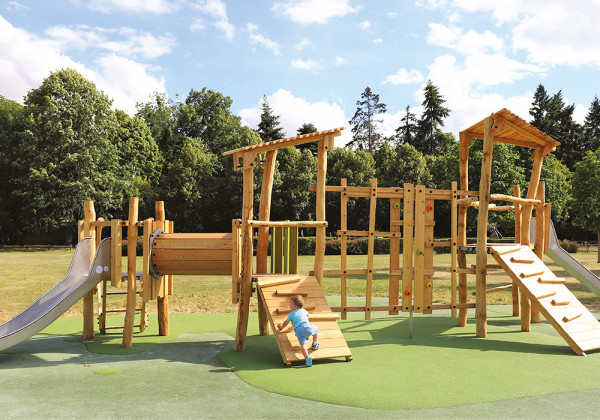

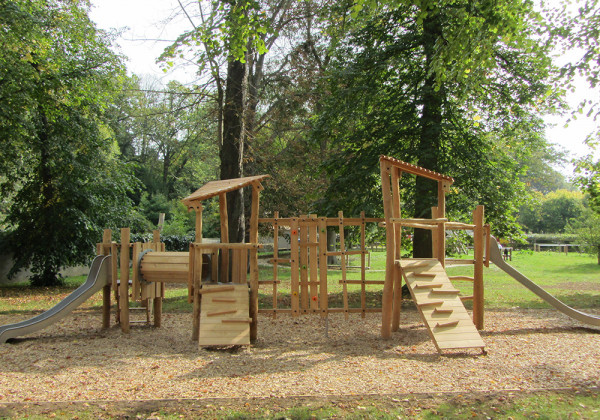

J4939 playgrounds multiplay equipment multi play structures image photo

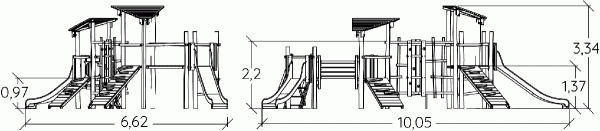

J4939 playgrounds multiplay equipment multi play structures image side view

J4939 playgrounds multiplay equipment multi play structures image view from above

Materials

The different posts (average diameter: 60 to 80mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally... rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The boards are made from natural robinia wood or Douglas fir (plank sizes: 22, 27 and 45mm). Robinia wood and Douglas fir are naturally rot proof and do not... require any additional chemical protection; they are equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The roofs are made from robinia wood or Douglas half-logs (80 x 40 mm).

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more
