J4948 - Playgrounds - Multi-play equipment, Origin'

We have created the reference J4948 in our "Multi play structures" range. This play equipment is accessible from 3 years. It can accommodate up to 15 users.

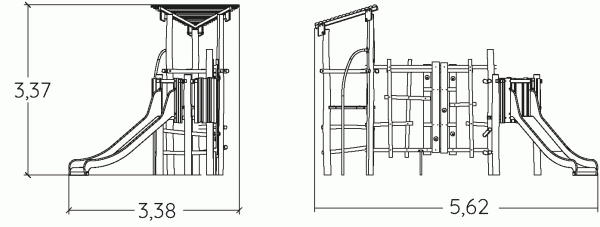

The size of the module is: 5.62 m length, 3.38 m width, 3.37 m. high. The free fall height (FFH) is 2.40 m.

10 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x2

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

By playing together, children learn how to interact with other personalities and behaviors.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Specifications

Age range:	3+
Number of users:	15 users
FFH :	2.40 m
Size:	5.62 x 3.38 x 3.37 m

Equipment installation

Number of installers:	2
Installation time:	06:00:00

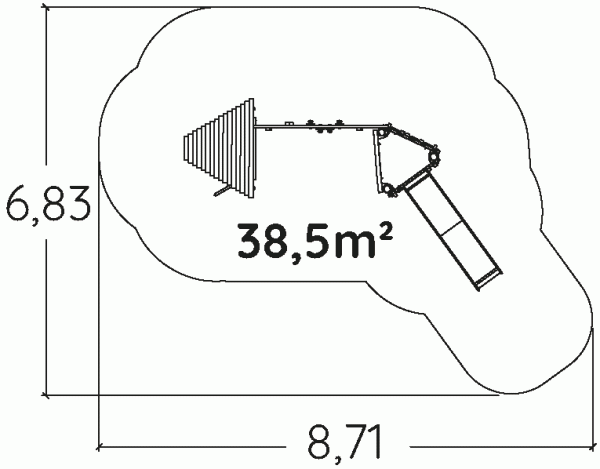

Surface:	38.50 m2
Total weight:	505.40 kg
Weight of the heaviest element:	52.93 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

Materials

The different posts (60 to 80mm / 100 to 120mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally... rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The roof is made from larch logs (80 x 40 mm).

The panels and the climbing wall are made from larch (plank sizes 140 x 27mm / 45 x 68mm). Larch is naturally resistant and long lasting.

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more
