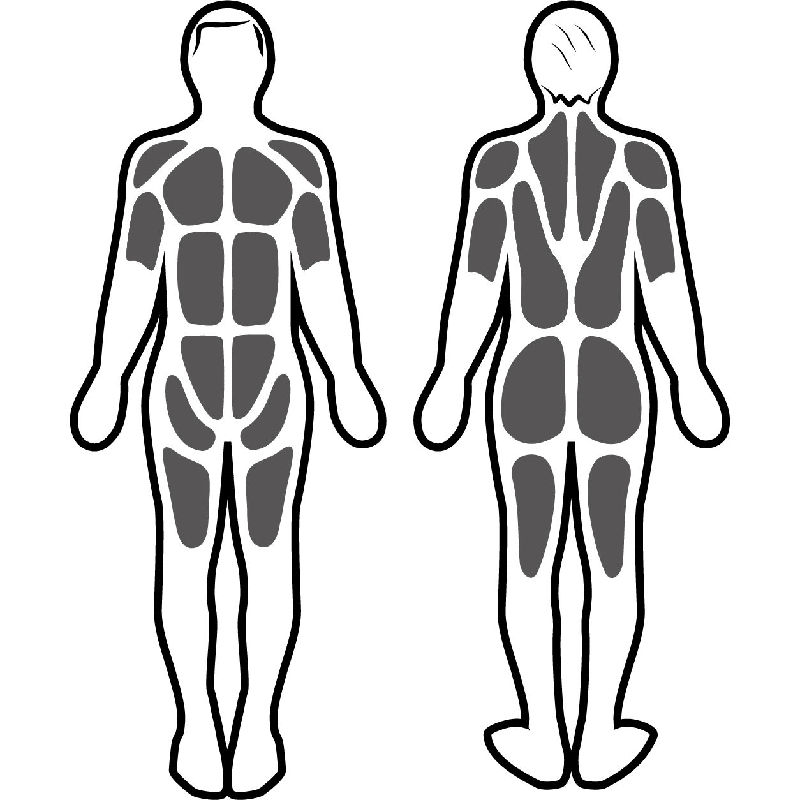

Muscle stimulation

Muscle stimulation

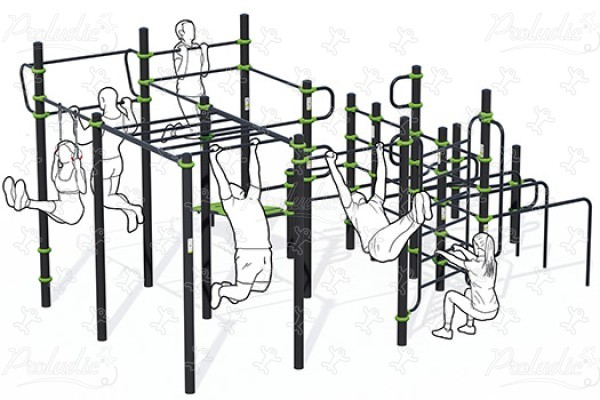

ACTI’Street - Training centre combination - J5229

We have created the reference J5229 in our "ACTI’Street" range. This activity equipment is accessible from 14 years. It can accommodate up to 18 users.

The size of the module is: 4.82 m length, 6.24 m width, 3.02 m. high. The free fall height (FFH) is 2.00 m.

46 sports activities

getting across
Getting across x1
hanging
Hanging x15
Flag
Flag x1
Pull-ups
Pull-ups x16
Dips
Dips x3
Push-ups
Push-ups x6
Squats
Squats x3
Abs
Abs x1
Show more

5 ludo-sport motivations

Application Acti'Fun
Application Acti'Fun
Sensations
Sensations
Progressive design
Progressive design
Sharing
Sharing
Challenge
Challenge
Show more

Specifications

Age range: 14+
Number of users: 18 users
FFH : 2.00 m
Size: 4.82 x 6.24 x 3.02 m

Equipment installation

Number of installers: 3
Installation time: 28:00:00
Concrete volume: 3.40 m3
Surface: 62.00 m2
Total weight: 626.30 kg
Weight of the heaviest element: 28.02 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

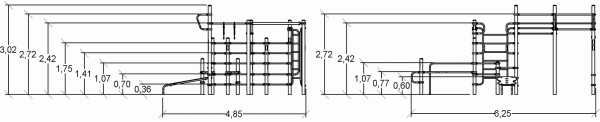

Side view
Side view

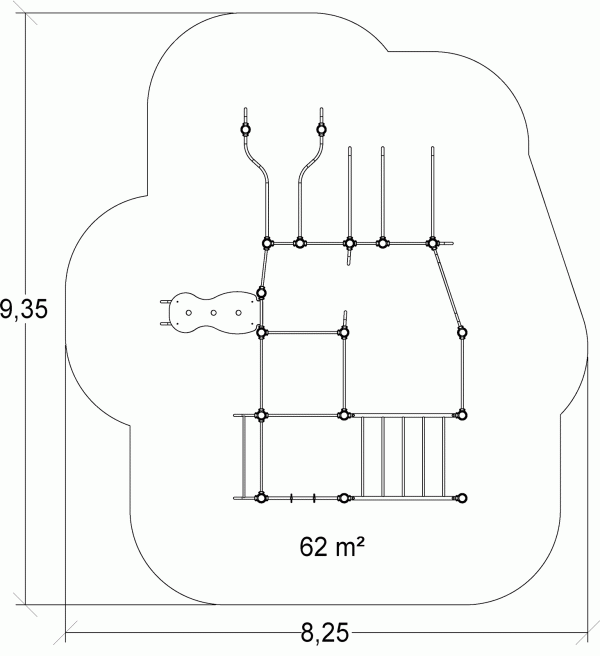

View from above
View from above

Materials

The 102mm diameter posts

The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... painted aluminium. Read more

The fixing collars

The fixing collars are made of painted aluminium.

The tubes

The tubes are made of electro-galvanized steel (diameter 34 mm) and stainless steel (diameter 40 mm), coated with epoxy paint. Electrogalvanization ensures... corrosion resistance and gives a high quality finish. Stainless steel guarantees the longevity and robustness of the equipment over time. The epoxy paint provides better grip. Read more

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The rings

The rings are made of 7mm diameter galvanised steel covered with rubber.

The chains

The chains are made of stainless steel.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
