Double Gardening Workshop - Water play equipment for outdoor playgrounds - J5301

We have created the reference J5301 in our "Water play" range. This play equipment is accessible from 3 years. It can accommodate up to 14 users.

The size of the module is: 2.83 m length, 2.24 m width, 0.82 m. high.

8 play functions

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Handling x3

A great exercise for developing motor skills and abilities in young children while having fun.

Tactile stimulation x3

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Specifications

Age range:	3+
Number of users:	14 users
Size:	2.83 x 2.24 x 0.82 m

Equipment installation

Number of installers:	2
Installation time:	05:00:00
Concrete volume:	0.30 m3
Surface:	25.00 m2
Total weight:	103.93 kg
Weight of the heaviest element:	9.39 kg

Environmental Indicators

Repairability

9.57 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

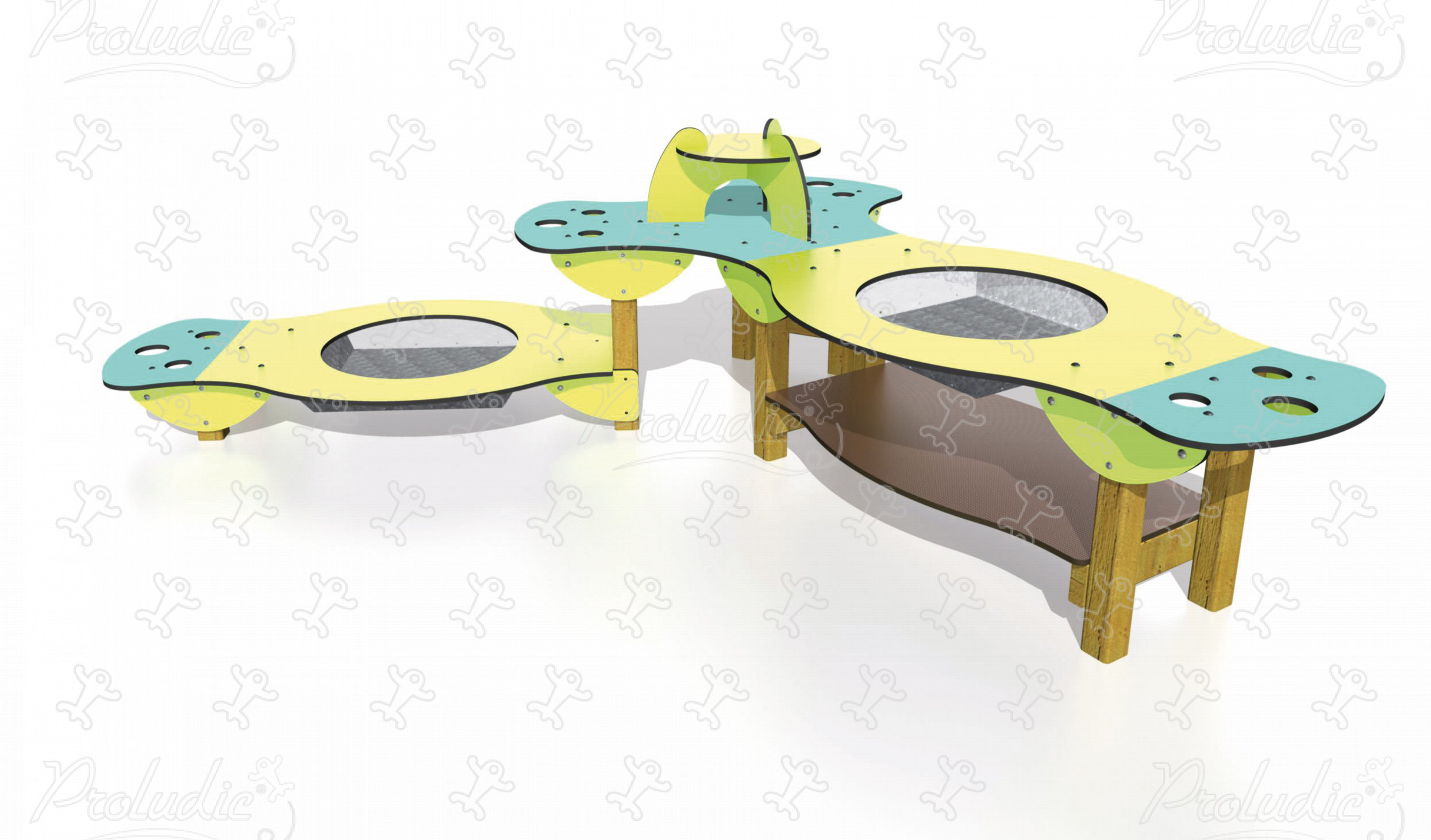

Gardening Workshop J5301 playgrounds educational & sensory play equipment water play image 3d

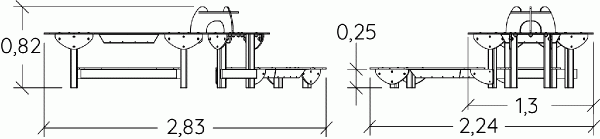

Gardening Workshop J5301 playgrounds educational & sensory play equipment water play image side view

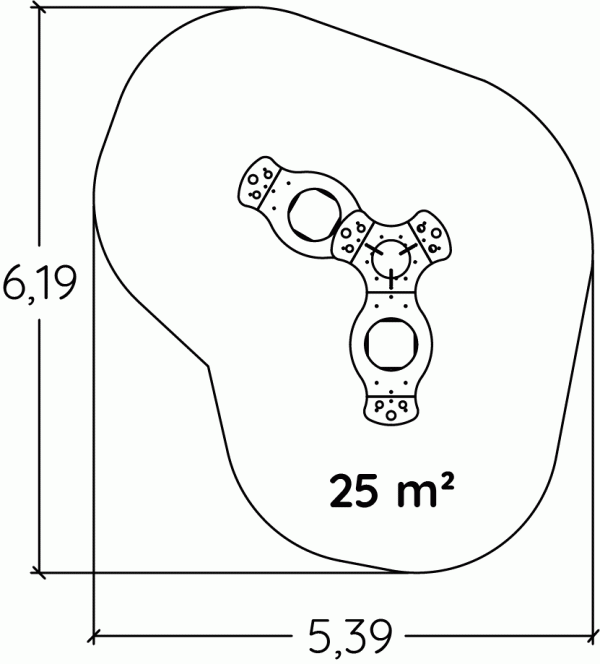

Gardening Workshop J5301 playgrounds educational & sensory play equipment water play image view from above

Materials

The 68mm square posts are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. Read more

The table is made from a 12.5mm thick textured and non-slip compact material (HPL).

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
