Balancing trails - J5402

We have created the reference J5402 in our "Balancing trails" range. This play equipment is accessible from 2 years. It can accommodate up to 25 users.

The size of the module is: 8.24 m length, 3.28 m width, 1.80 m. high. The free fall height (FFH) is 0.60 m.

Other finishes available

13 play functions

climbing
Climbing x1
Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.
resting
Resting x1
By resting, the child can recover from their exertions and improve their concentration before starting to play again.
balancing
Balancing x4
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
getting across
Getting across x4
 Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.
balancing
Balancing x1
getting across
Getting across x1
walking
Walking x1
Show more

Specifications

Age range: 2 - 8
Number of users: 25 users
FFH : 0.60 m
Size: 8.24 x 3.28 x 1.80 m

Equipment installation

Number of installers: 2
Installation time: 07:00:00
Concrete volume: 1.10 m3
Surface: 53.00 m2
Total weight: 280.24 kg
Weight of the heaviest element: 14.20 kg

Environmental Indicators

Repairability

Repairability

9.44 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

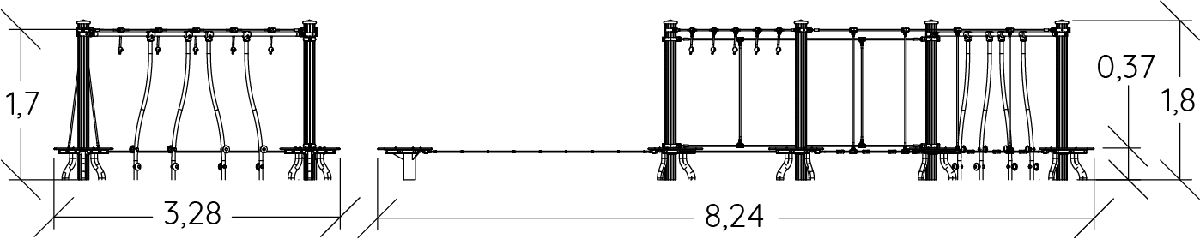

Side view
Side view

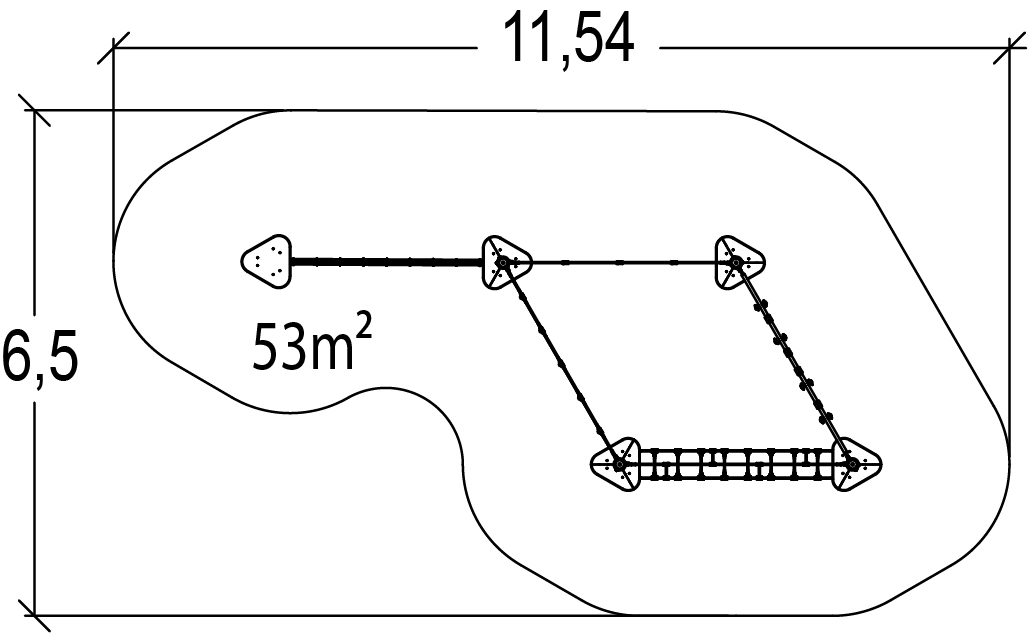

View from above
View from above

Materials

The 125mm round posts

The 125mm round posts are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The caps are made of injection moulded polyamide. Read more

The platform floors

The platform floors are made from a 18mm thick, non-slip polyethylene material.

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The net fittings

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

Injected aluminium elements

Injected aluminium elements are fixed on the posts with self-drilling screws to provide links between the ropes and the posts.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The strap

The strap is made of 3 ropes linked together with aluminium pliers. Each rope, of 16mm diameter, is made up of galvanized steel cables covered in polypropylene.

The climbing holds

The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant. They give the units their strength and help to protect them... from vandalism. Read more

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
