We have created the reference J5408-M in our "Balancing trails" range. This play equipment is accessible from 2 years. It can accommodate up to 11 users.

The size of the module is: 6.52 m length, 3.28 m width, 1.84 m. high. The free fall height (FFH) is 0.60 m.

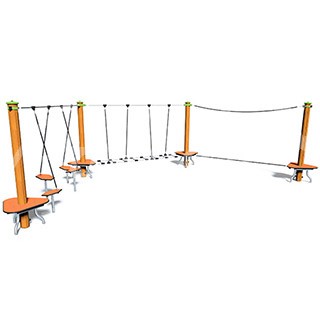

Other finishes available

6 play functions

balancing
Balancing x3
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
getting across
Getting across x3
 Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range: 2+
Number of users: 11 users
FFH : 0.60 m
Size: 6.52 x 3.28 x 1.84 m

Equipment installation

Number of installers: 2
Installation time: 07:00:00
Concrete volume: 1.10 m3
Surface: 45.00 m2
Total weight: 222.21 kg
Weight of the heaviest element: 18.43 kg

Environmental Indicators

Repairability

Repairability

9.44 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

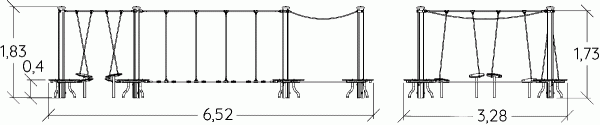

Side view
Side view

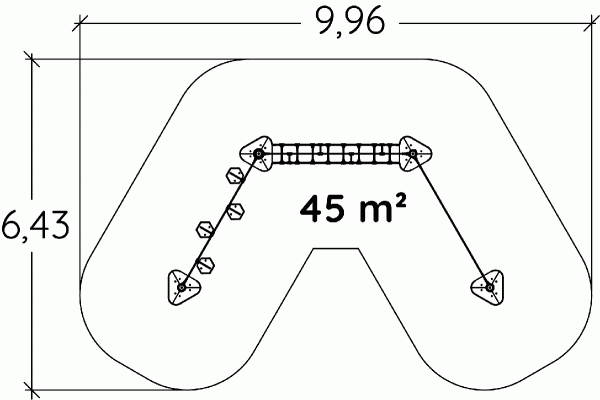

View from above
View from above

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

The platform floors

The platform floors are made from a 18mm thick, non-slip polyethylene material.

The 16mm diameter rope

The 16mm diameter rope is made of galvanised steel cable covered with polyester.

The net fittings

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

Injected aluminium elements

Injected aluminium elements are fixed on the posts with self-drilling screws to provide links between the ropes and the posts.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
