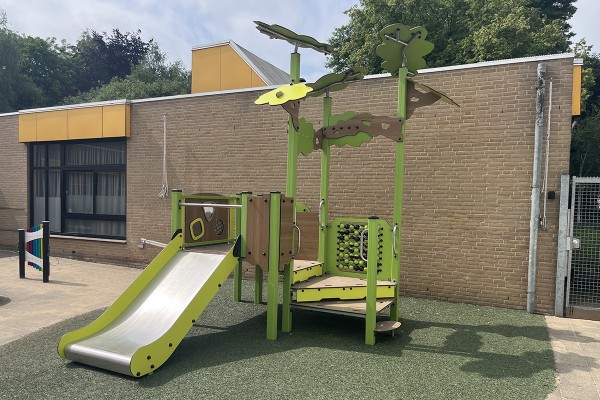

J56006 - Playgrounds - Multi-play equipment

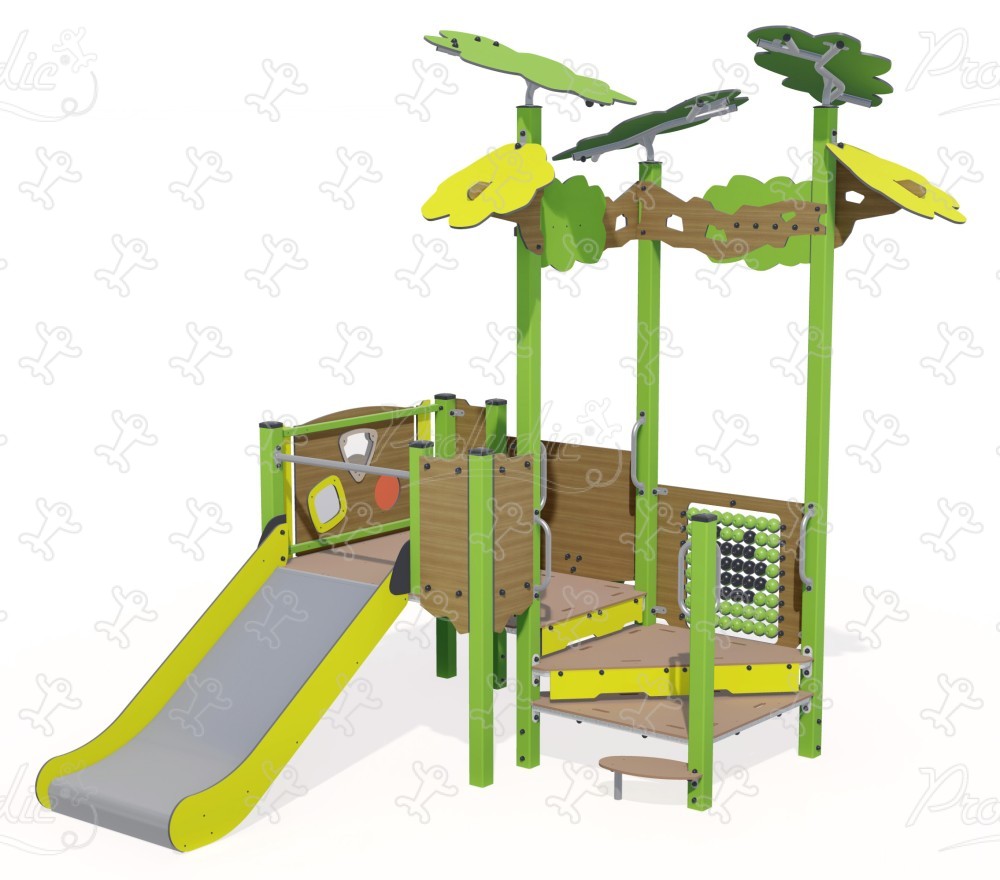

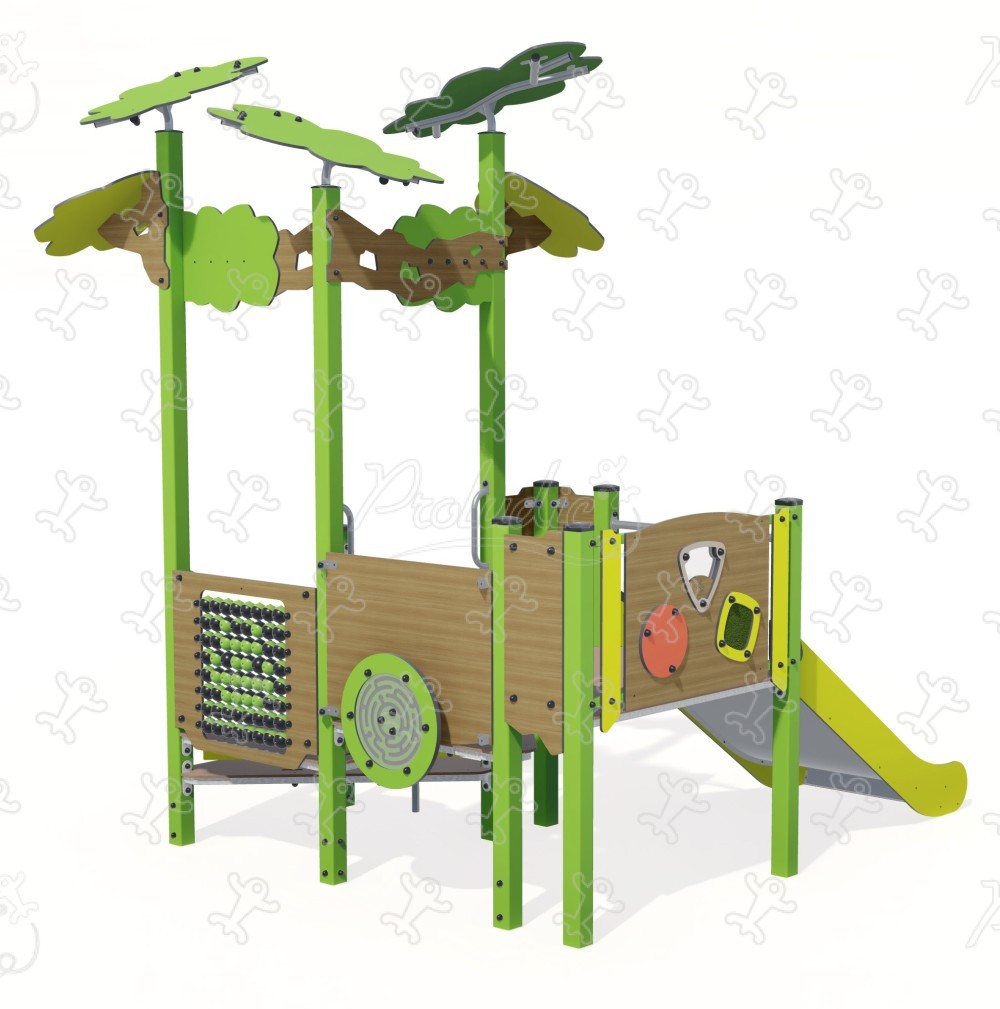

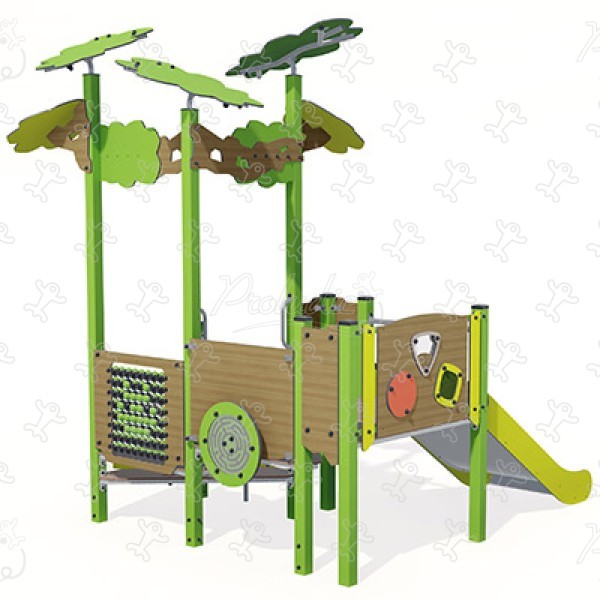

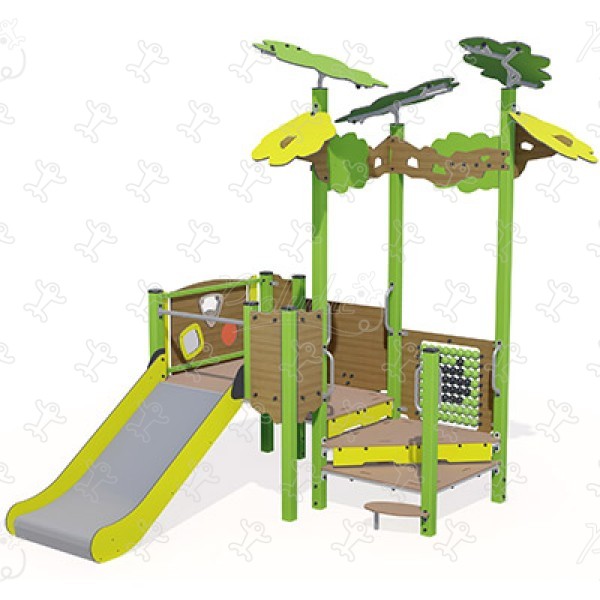

We have created the reference J56006® in our "Kanopé" range. This play equipment is accessible from 2 years. It can accommodate up to 16 users.

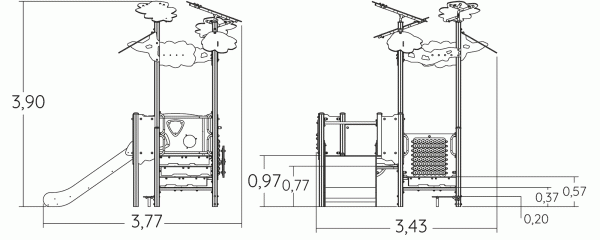

The size of the module is: 3.77 m length, 3.43 m width, 3.90 m. high. The free fall height (FFH) is 0.97 m.

21 play functions

Role play x3

Role plays promote the child's intellectual and social skills.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Handling x5

A great exercise for developing motor skills and abilities in young children while having fun.

Thinking x2

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

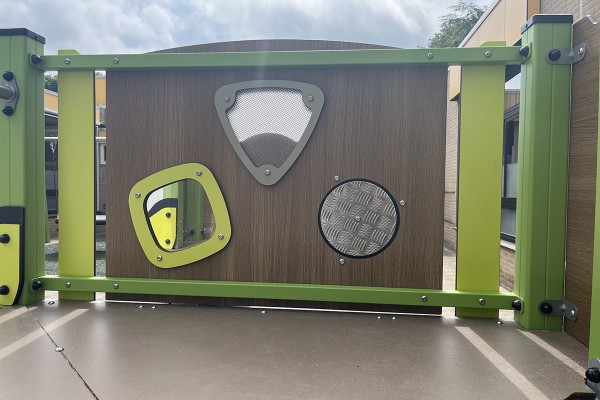

Tactile stimulation x5

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x2

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Specifications

Age range:	2+
Number of users:	16 users
FFH :	0.97 m
Size:	3.77 x 3.43 x 3.90 m

Equipment installation

Number of installers:	2
Installation time:	10:00:00
Concrete volume:	0.30 m3

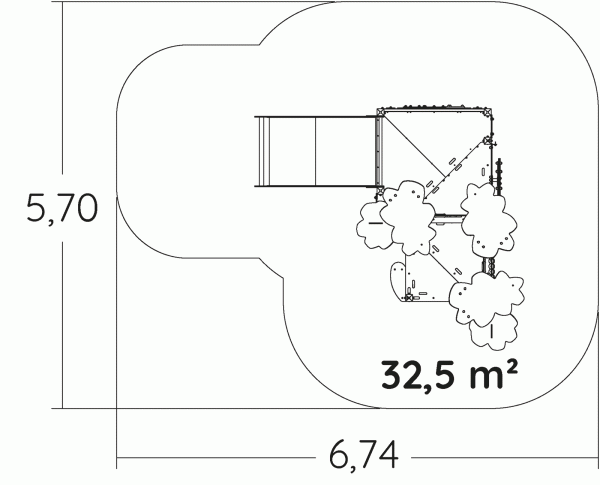

Surface:	32.50 m2
Total weight:	549.53 kg
Weight of the heaviest element:	30.51 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
