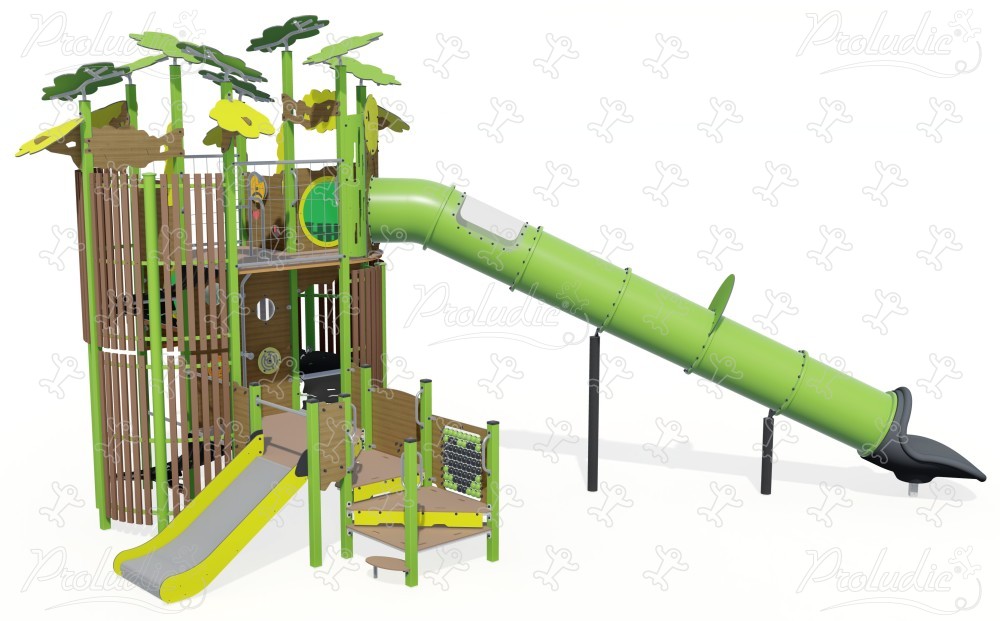

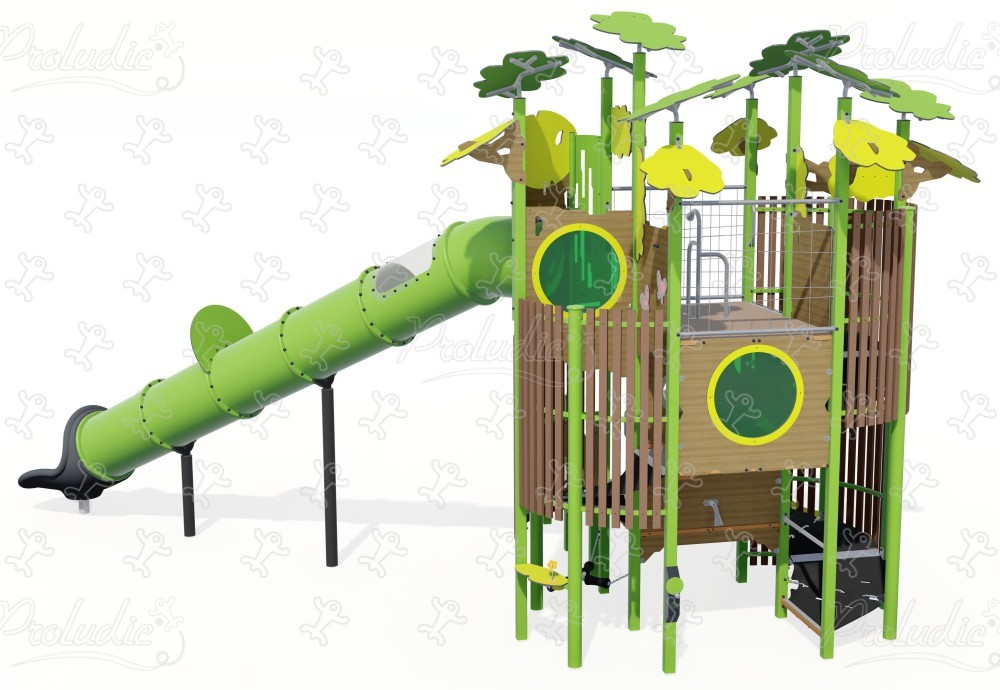

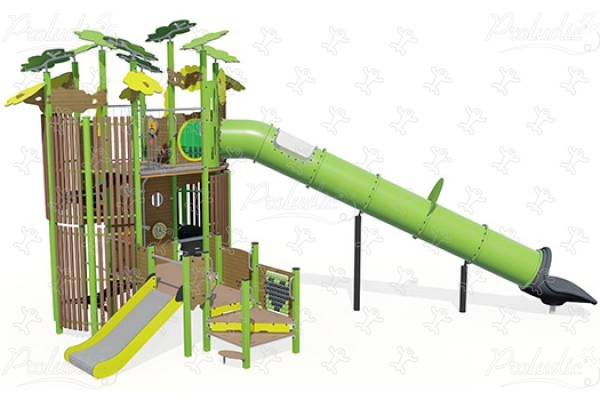

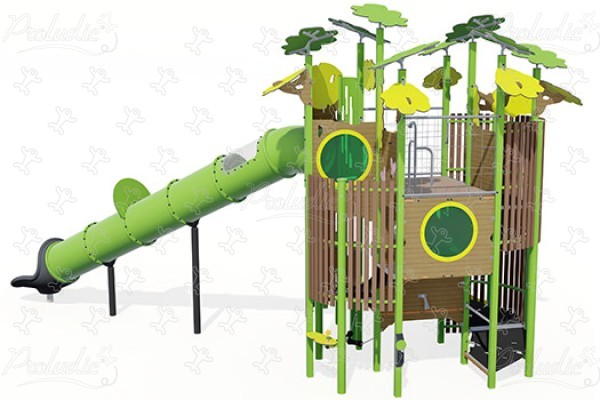

Kanopé - J56008®

We have created the reference J56008® in our "Kanopé" range. This play equipment is accessible from 2 years. It can accommodate up to 58 users.

The size of the module is: 9.47 m length, 8.04 m width, 5.80 m. high. The free fall height (FFH) is 2.97 m.

48 play functions

role play
Role play x4
Role plays promote the child's intellectual and social skills.
meeting
Meeting x4
By playing together, children learn how to interact with other personalities and behaviors.
resting
Resting x3
By resting, the child can recover from their exertions and improve their concentration before starting to play again.
handling
Handling x6
A great exercise for developing motor skills and abilities in young children while having fun.
swinging
Swinging x3
To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.
thinking
Thinking x4
Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.
tactile stimulation
Tactile stimulation x6
Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.
visual stimulation
Visual stimulation x7
It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.
climbing
Climbing x5
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
sliding
Sliding x2
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
hiding
Hiding x1
Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.
balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
sound stimulation
Sound stimulation x1
Popular and often shared by numerous children, fun sound activities bring even more life to play areas!
getting across
Getting across x1
 Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.
Show more

Specifications

Age range: 2+
Number of users: 58 users
FFH : 2.97 m
Size: 9.47 x 8.04 x 5.80 m

Equipment installation

Number of installers: 3
Installation time: 25:00:00
Concrete volume: 2.50 m3
Surface: 73.00 m2
Total weight: 2379.71 kg
Weight of the heaviest element: 41.73 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - Kanopé - J56008®
Video - Kanopé - J56008®

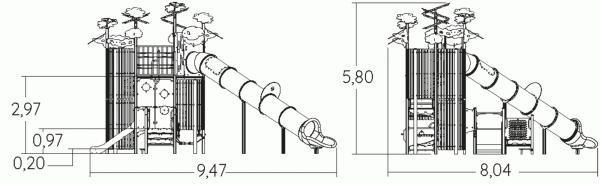

Side view
Side view

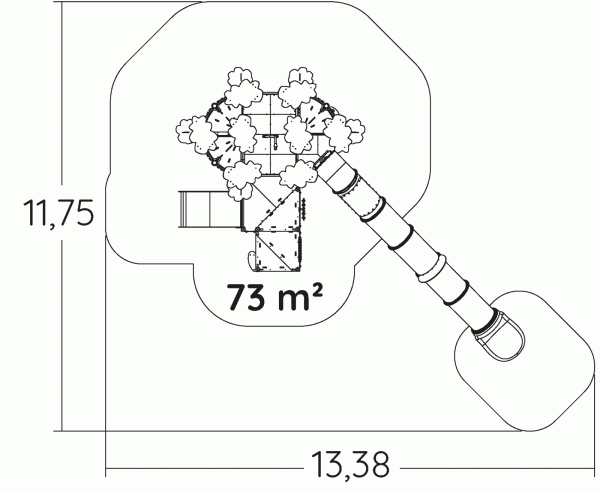

View from above
View from above

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel. The caps are made of injection moulded polyamide.

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The slatted fences

The slatted fences are made of composite wood (slats of 70 x 30 mm), which is a chip and split resistant waterproof material with UV protection.

The platforms

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The decorative fence panels

The decorative fence panels are made of 3mm thick painted aluminium sheets.

The soft ramp

The soft ramp is made of a woven strip with rubber surface.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The panels

The panels are made of stainless steel mesh netting, Ø 6mm.

The slide

The slide is made of rotomoulded polyethylene.

The sliding surface

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The seats

The seats are made with a non-slip rubber overmould.

The chains

The chains are made of stainless steel.

The abacus spheres

The abacus spheres are made of polycarbonate sheets.

The portholes

The portholes are made from 8mm thick methacrylate (PMMA).

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
