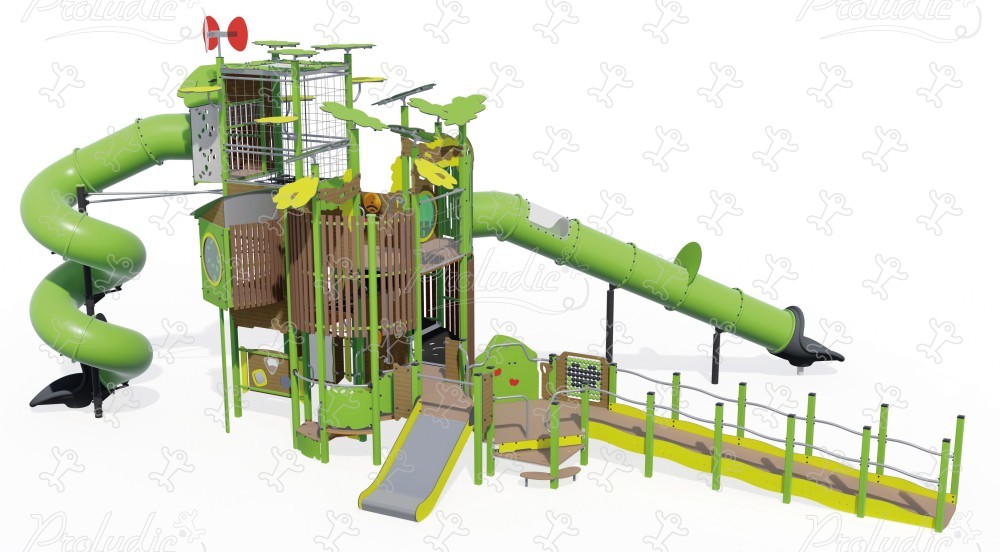

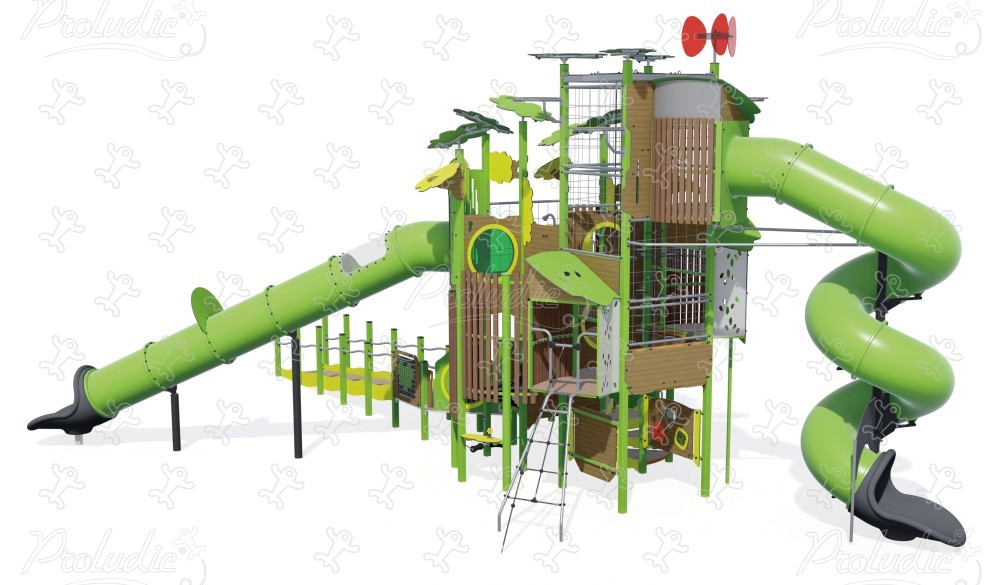

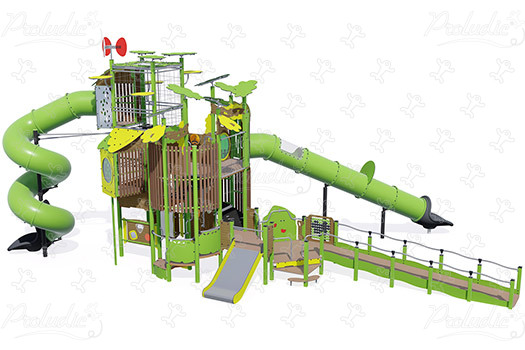

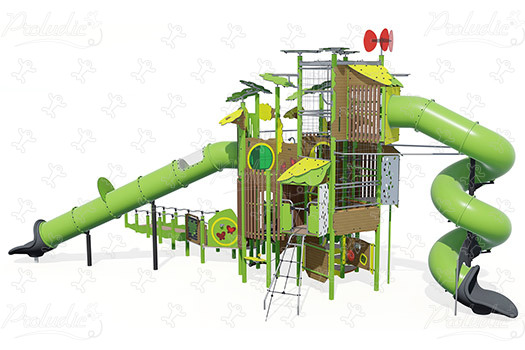

Kanopé - J56012®

We have created the reference J56012® in our "Kanopé" range. This play equipment is accessible from 2 years. It can accommodate up to 99 users.

The size of the module is: 15.57 m length, 10.22 m width, 6.86 m. high. The free fall height (FFH) is 2.97 m.

83 play functions

role play
Role play x6
Role plays promote the child's intellectual and social skills.
sliding
Sliding x3
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x8
By playing together, children learn how to interact with other personalities and behaviors.
resting
Resting x4
By resting, the child can recover from their exertions and improve their concentration before starting to play again.
handling
Handling x8
A great exercise for developing motor skills and abilities in young children while having fun.
crawling
Crawling x1
Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.
swinging
Swinging x3
To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.
balancing
Balancing x3
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
thinking
Thinking x3
Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.
sound stimulation
Sound stimulation x2
Popular and often shared by numerous children, fun sound activities bring even more life to play areas!
tactile stimulation
Tactile stimulation x9
Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.
visual stimulation
Visual stimulation x13
It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.
climbing
Climbing x9
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
getting across
Getting across x3
 Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.
hiding
Hiding x4
Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.
taking shelter
Taking shelter x4
A refuge where the children can take shelter ensures that children have their own space.
Show more

Specifications

Age range: 2+
Number of users: 99 users
FFH : 2.97 m
Size: 15.57 x 10.22 x 6.86 m

Equipment installation

Number of installers: 3
Installation time: 35:00:00
Concrete volume: 2.50 m3
Surface: 119.50 m2
Total weight: 4432.80 kg
Weight of the heaviest element: 72.00 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - Kanopé - J56012®
Video - Kanopé - J56012®

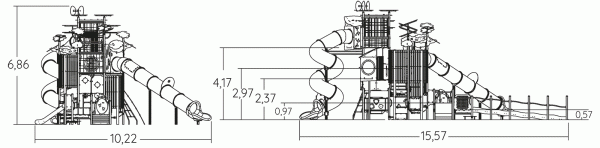

Side view
Side view

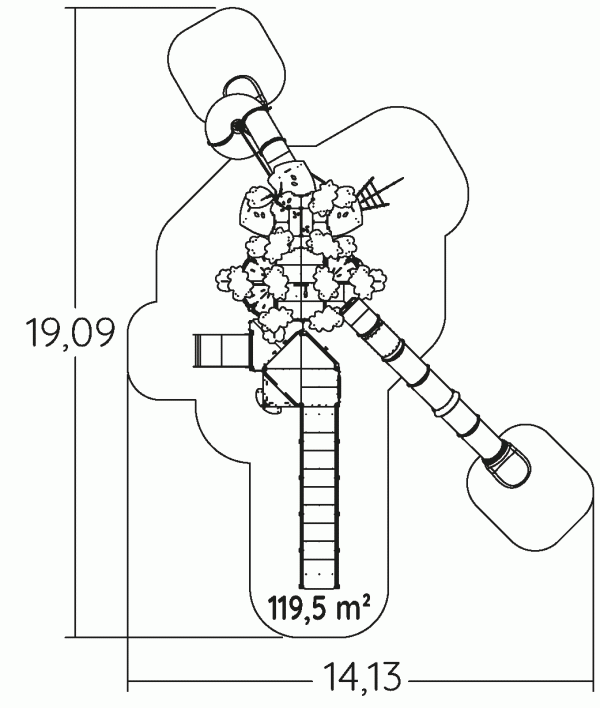

View from above
View from above

Materials

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The slatted fences

The slatted fences are made of composite wood (slats of 70 x 30 mm), which is a chip and split resistant waterproof material with UV protection.

The decorative fence panels

The decorative fence panels are made of 3mm thick painted aluminium sheets.

The wall panels

The wall panels are made of 3mm perforated aluminium sheet coated with a polyester epoxy lacquer.

The panels

The panels are made of stainless steel mesh netting, Ø 6mm.

The platforms

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The soft ramp

The soft ramp is made of a woven strip with rubber surface.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The fittings

The fittings are made of polyamide and are used to link three cords together.

The net fittings

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

The footrests

The footrests are made from rubber, 14mm thick.

The slides

The slides are made of rotomoulded polyethylene.

The sliding surface

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The abacus spheres

The abacus spheres are made of polycarbonate sheets.

The seats

The seats are made with a non-slip rubber overmould.

The chains

The chains are made of stainless steel.

The distorting mirror

The distorting mirror is made of 2mm thick polished stainless steel sheet.

The portholes

The portholes are made from 8mm thick methacrylate (PMMA).

The porthole

The porthole is made of shatter resistant thermoplastic (PMMA).

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
