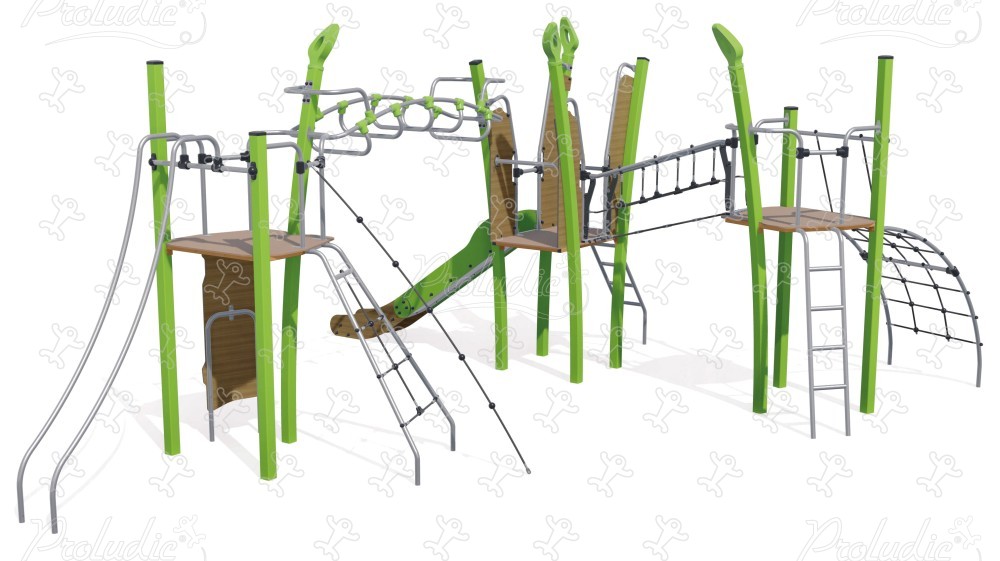

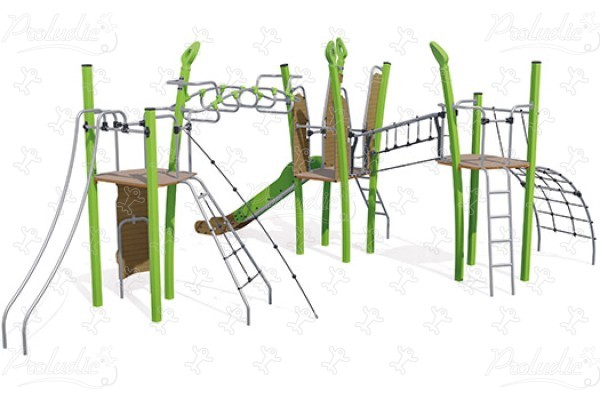

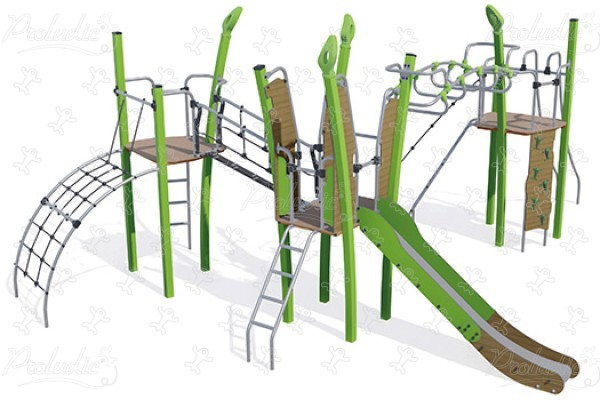

Kanopé - J5619®

We have created the reference J5619® in our "Kanopé" range. This play equipment is accessible from 5 years. It can accommodate up to 33 users.

The size of the module is: 8.23 m length, 6.71 m width, 3.49 m. high. The free fall height (FFH) is 2.85 m.

Other finishes available

16 play functions

climbing
Climbing x1
Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.
sliding
Sliding x2
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x3
By playing together, children learn how to interact with other personalities and behaviors.
hanging
Hanging x1
This fun activity allows you to explore a new way of playing, of managing space and the void below.
balancing
Balancing x2
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
climbing
Climbing x5
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
getting across
Getting across x2
 Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.
Show more

Specifications

Age range: 5+
Number of users: 33 users
FFH : 2.85 m
Size: 8.23 x 6.71 x 3.49 m

Equipment installation

Number of installers: 2
Installation time: 24:00:00
Concrete volume: 0.70 m3
Surface: 76.00 m2
Total weight: 684.31 kg
Weight of the heaviest element: 26.78 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

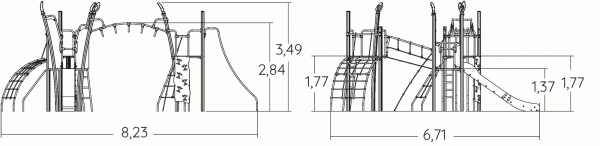

Side view
Side view

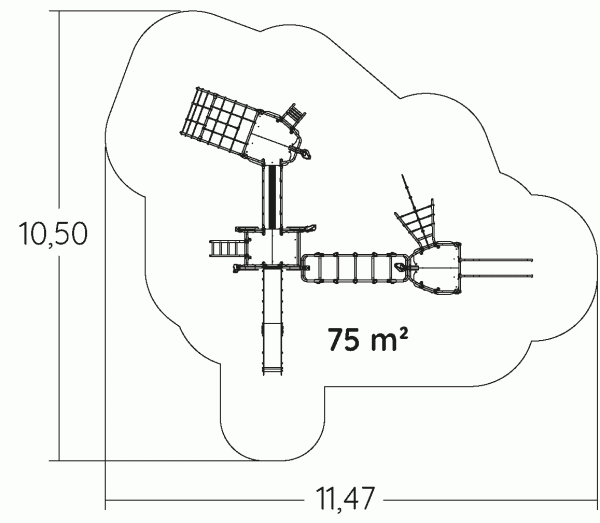

View from above
View from above

Materials

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The caps

The caps are made of rotary moulded polyethylene.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The net fittings

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

The strap

The strap is made of 5 ropes linked together with aluminium pliers. Each rope, of 16mm diameter, is made up of galvanized steel cables covered in polypropylene.

The sliding surfaces

The sliding surfaces are made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The climbing holds

The climbing holds are made of polyamide for its strength and rigidity.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
