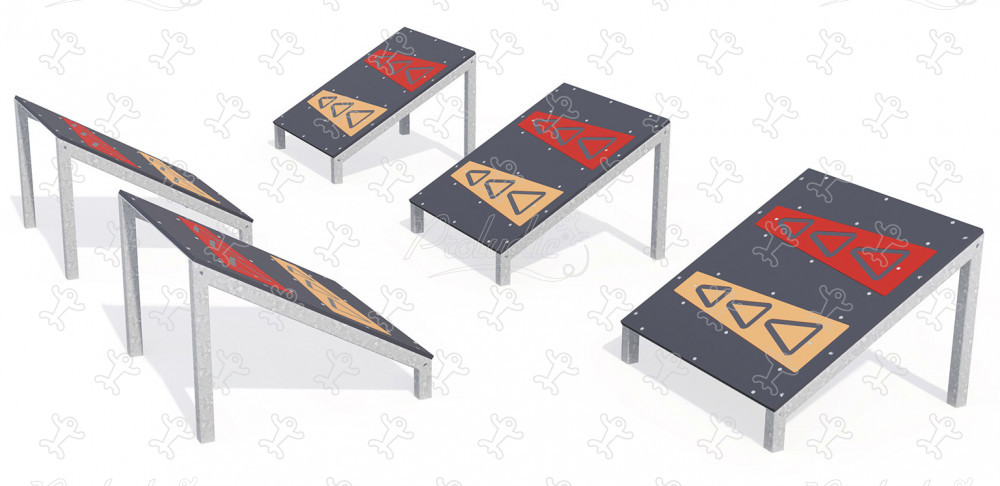

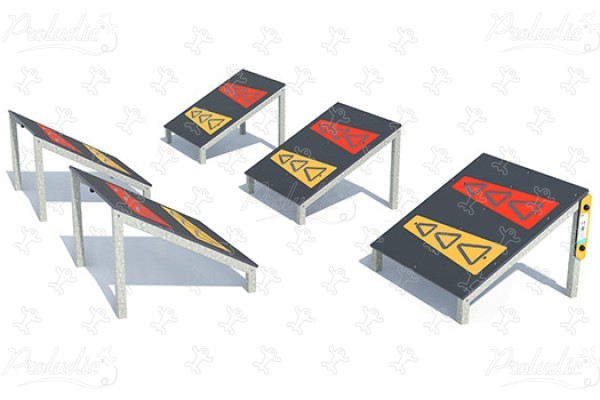

Slanted steps

We have created the reference J5901® in our "Ninja trails" range. This module is accessible from 8 years. It can accommodate up to 2 users.

The size of the module is: 3.71 m wide, 2.03 m. deep, 0.54 m. high. The free fall height (FFH) is 0.60 m.


Age range: 8+
Number of users: 2 users
FFH : 0.60 m
Size: 3.71 x 2.03 x 0.54 m

Equipment installation

Number of installers: 2
Installation time: 01:00:00
Concrete volume: 0.55 m3
Surface: 32.00 m2
Total weight: 203.13 kg
Weight of the heaviest element: 23.49 kg


The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification
Side view
Side view

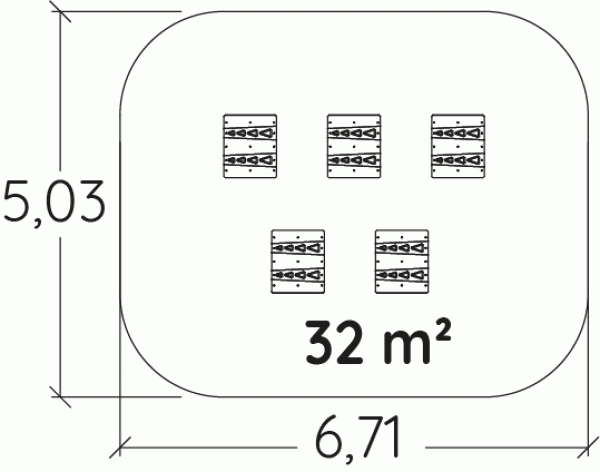

View from above
View from above


The structure

The structure is in galvanised steel.

The plates

The plates are machined from non-slip polyethylene panels with a thickness of 12mm in which are embedded compact panels (HPL). The non-slip polyethylene offers... an excellent level of grip and performance over obstacles. Robust in construction, the compact material (HPL) has excellent weather and vandal resistance properties. Read more

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
