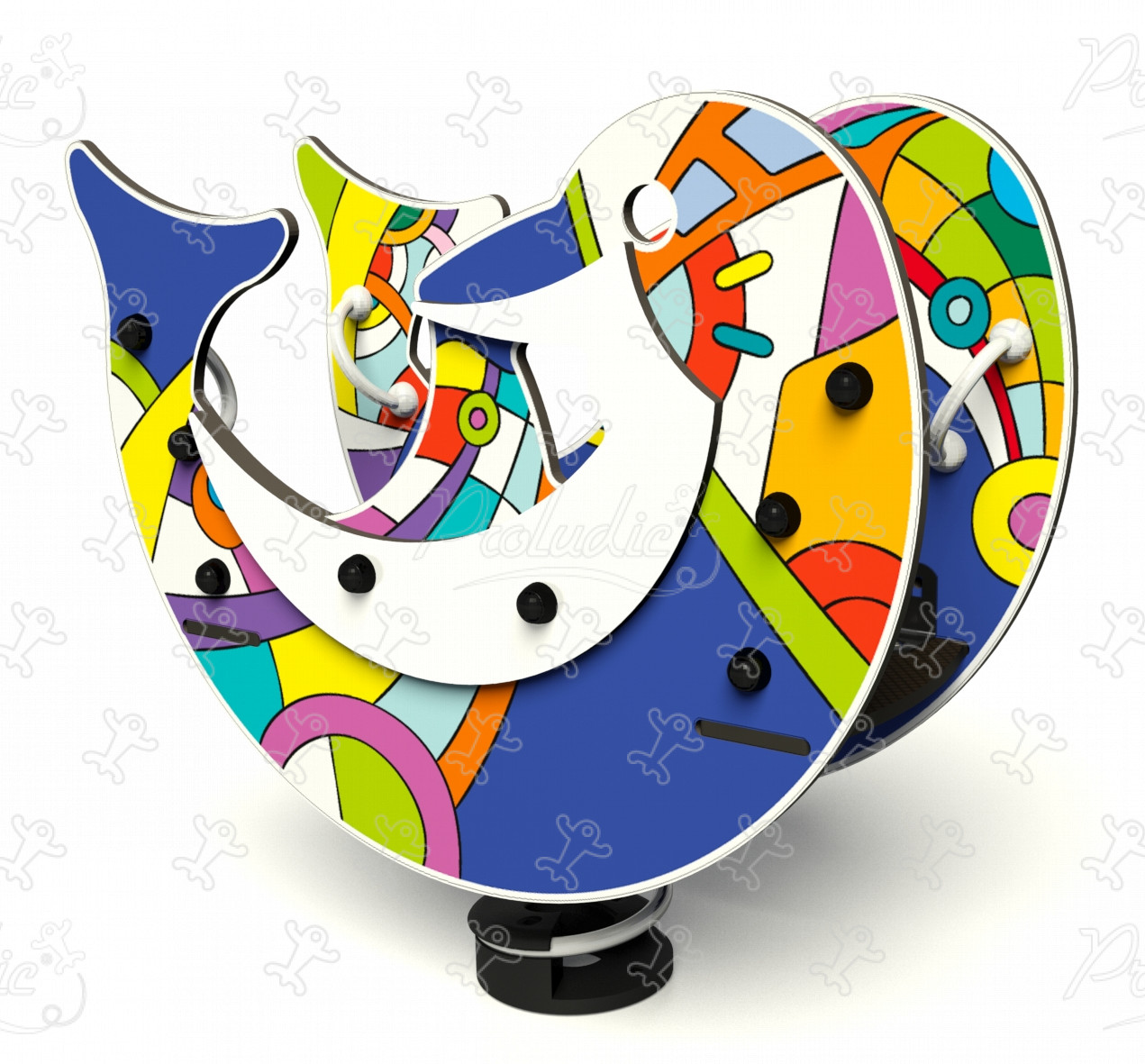

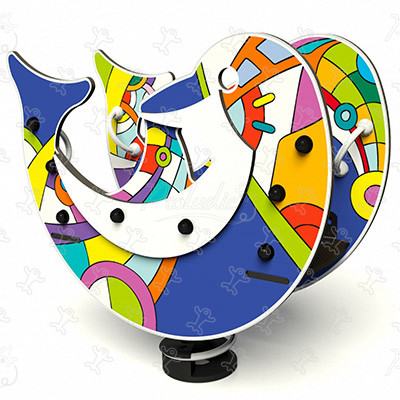

We have created the reference J822-GG in our "Grafic finish" range. This module is accessible from 2 years. It can accommodate up to 2 users.
The size of the module is: 0.90 m wide, 0.40 m. deep, 0.76 m. high. The free fall height (FFH) is 0.47 m.
4 play functions
Swinging
x1
To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.
Balancing
x1
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
Meeting
x1
By playing together, children learn how to interact with other personalities and behaviors.
Specifications
| Age range: | 2 - 10 |
| Number of users: | 2 users |
| FFH : | 0.47 m |
| Size: | 0.90 x 0.40 x 0.76 m |
Equipment installation
| Number of installers: | 1 |
| Installation time: | 01:15:00 |
| Surface: | 7.00 m2 |
| Total weight: | 43.23 kg |
| Weight of the heaviest element: | 11.39 kg |
Downloads
Certification
The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification
- JXXXX TÜV certification
- JXXXX* Proludic Certification
Materials
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The seats are made from a 12.5mm thick textured and non-slip compact material (HPL).
The springs are made from Grade 35SCD6 steel, shot blasted, stress relieved, zinc coated and finished with two coats of epoxy polyester powder. Proludic have... patented an exceptionally strong and secure polyamide fixing for the spring, ensuring a long product life. Read more
The handles are made of very strong polyamide plastic.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
