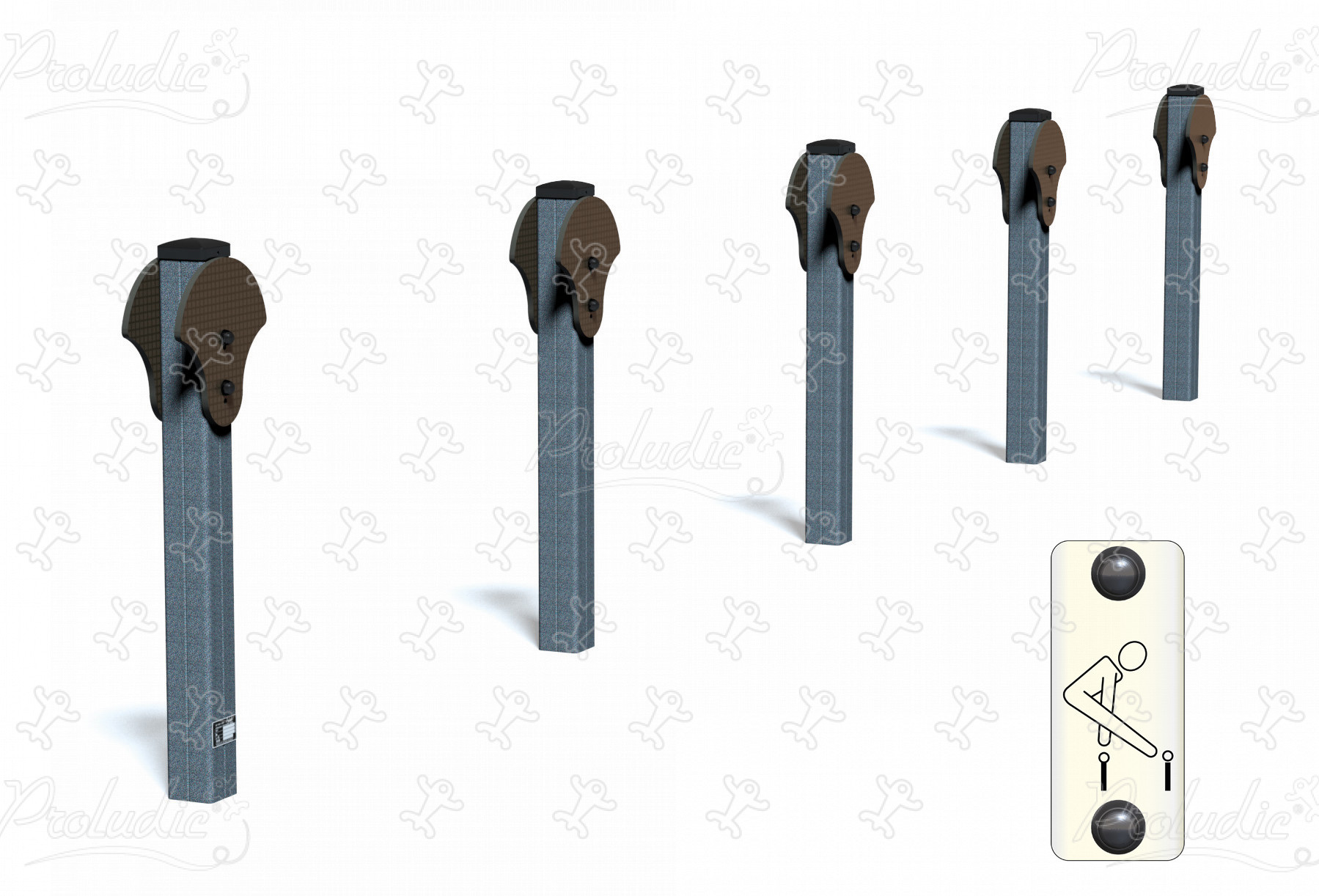

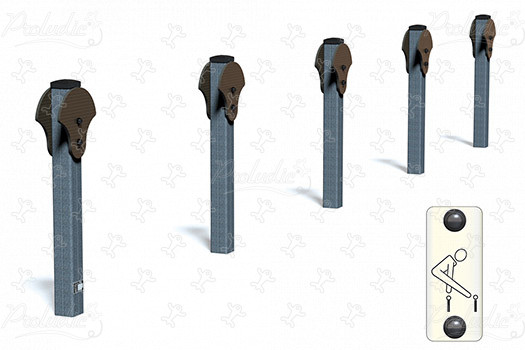

We have created the reference JPS16-S-M in our "Metal Trim Trail" range. This module is accessible from 14 years.

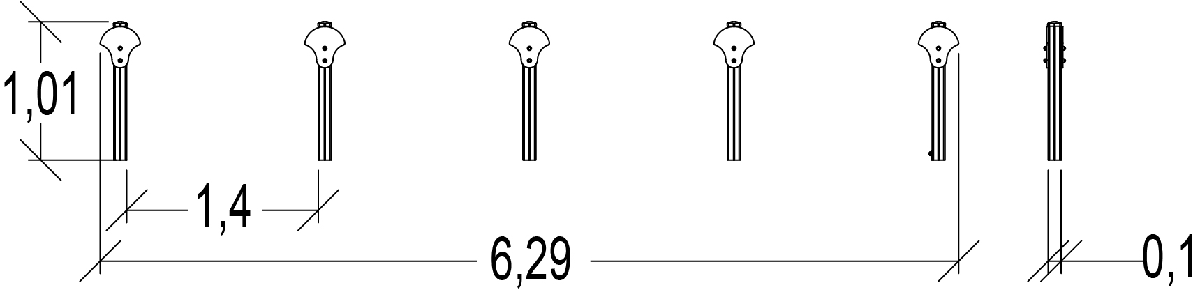

The size of the module is: 6.30 m wide, 0.10 m. deep, 1.00 m. high. The free fall height (FFH) is 1.00 m.
Specifications
| Age range: | 14+ |
| FFH : | 1.00 m |
| Size: | 6.30 x 0.10 x 1.00 m |
Equipment installation
| Number of installers: | 1 |
| Installation time: | 01:00:00 |
| Concrete volume: | 0.15 m3 |

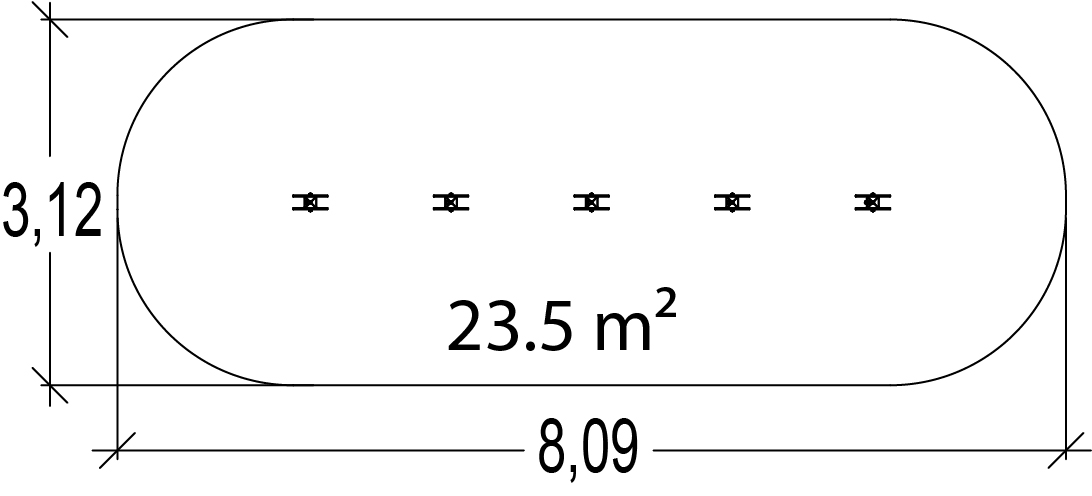

| Surface: | 27.50 m2 |
| Total weight: | 63.18 kg |
| Weight of the heaviest element: | 10.79 kg |
Certification
The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification
- JXXXX TÜV certification
- JXXXX* Proludic Certification
Materials
The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.
The panels are made from a 12.5mm thick textured and non-slip compact material (HPL).
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
