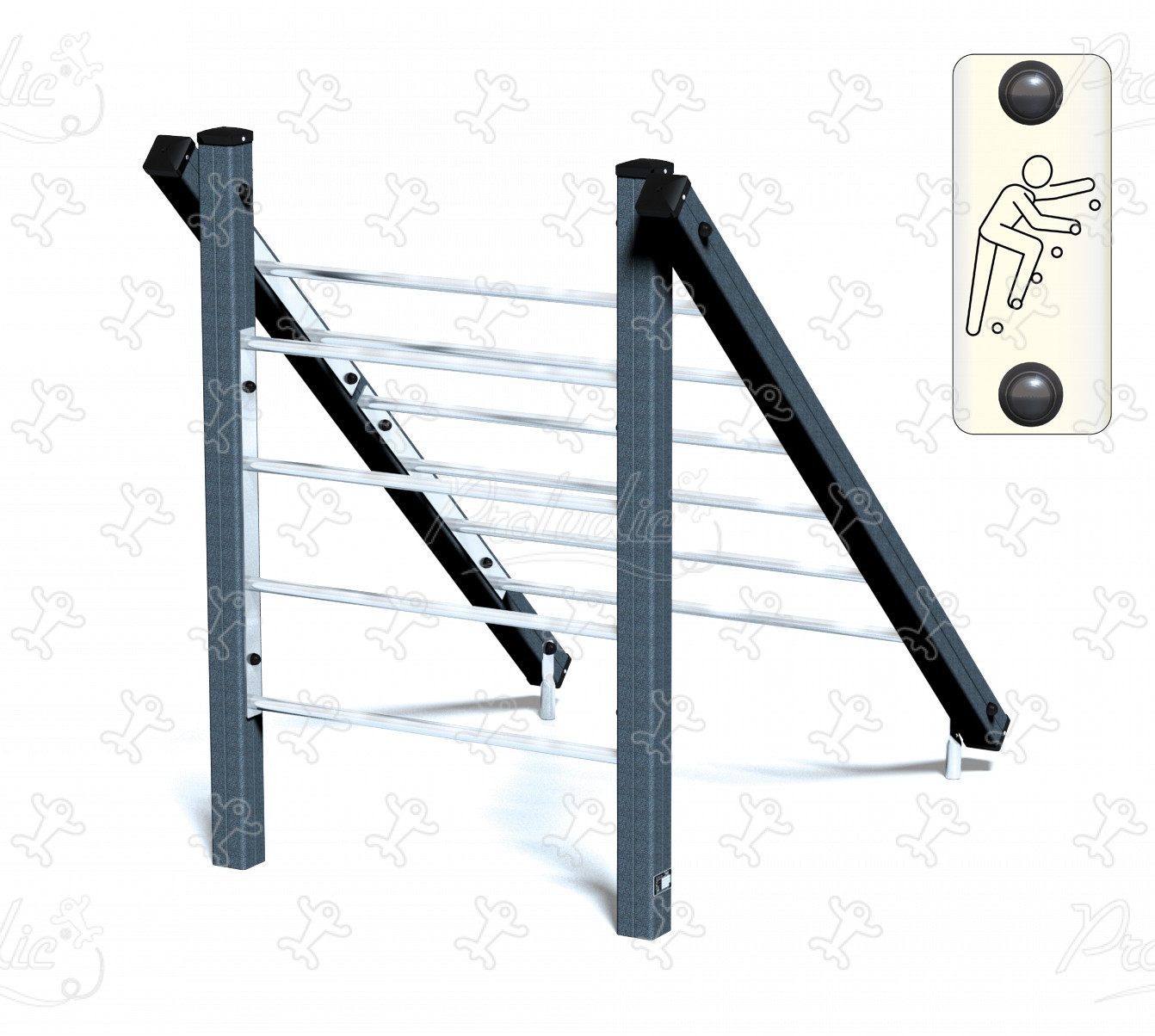

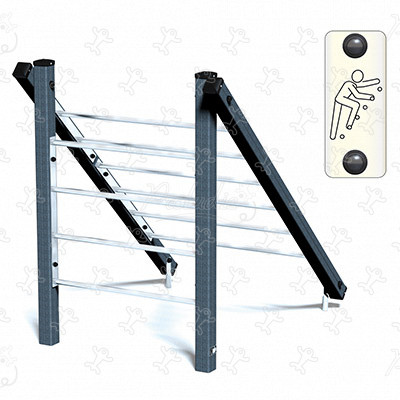

Metal Climbing Ladders

We have created the reference JPS22-M in our "ACTI’Ninja" range. This activity equipment is accessible from 8 years. It can accommodate up to 1 user.

The size of the module is: 1.78 m length, 1.40 m width, 1.80 m. high. The free fall height (FFH) is 1.76 m.

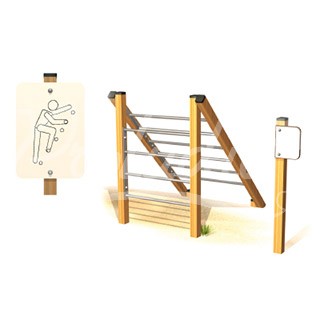

Other finishes available

2 sports activities

getting across
Getting across x1
climbing
Climbing x1

3 ludo-sport motivations

Sensations
Sensations
Sharing
Sharing
Challenge
Challenge

Specifications

Age range: 8+
Number of users: 1 user
FFH : 1.76 m
Size: 1.78 x 1.40 x 1.80 m

Equipment installation

Number of installers: 2
Installation time: 01:30:00
Concrete volume: 0.10 m3
Surface: 22.50 m2
Total weight: 98.41 kg
Weight of the heaviest element: 15.78 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

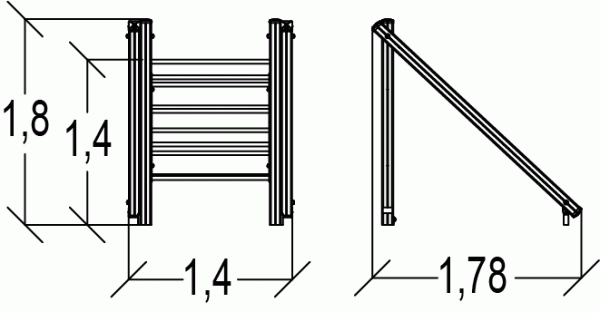

Side view
Side view

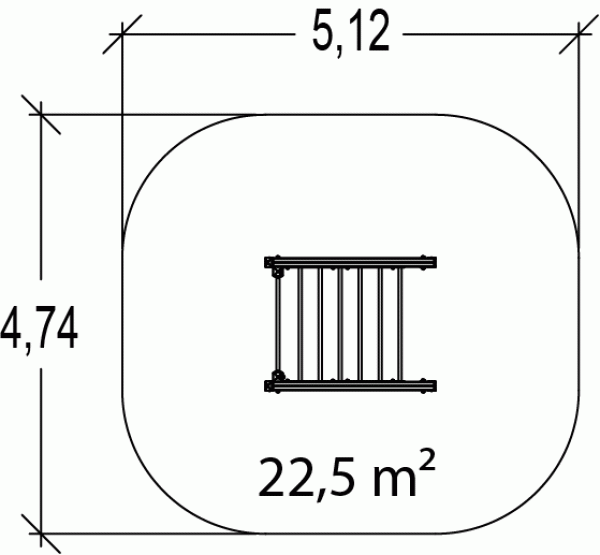

View from above
View from above

Materials

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The tubes

The tubes are made of 34mm diameter galvanised steel.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
