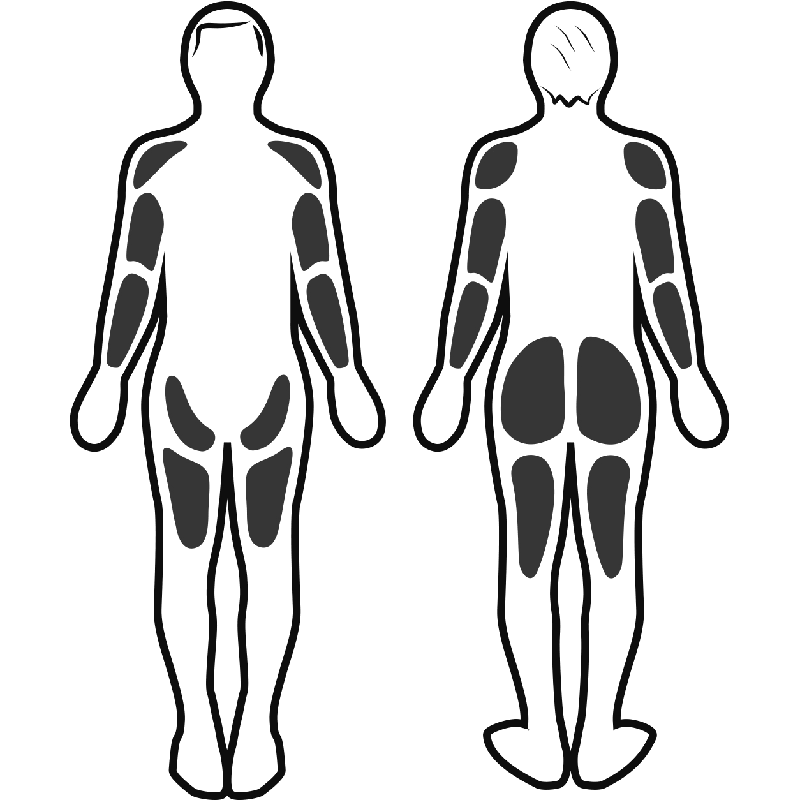

Muscle stimulation

Muscle stimulation

Movement

Movement

Rodeoboard

The Rodeoboard requires technique and dexterity to generate,
maintain and control the movement.

Users stand on an oscillating platform mounted on 3 powerful
springs and hold onto a solid support bar. They need to defy the
laws of physics and gravity to keep steady and deal with the
inevitable lack of balance.

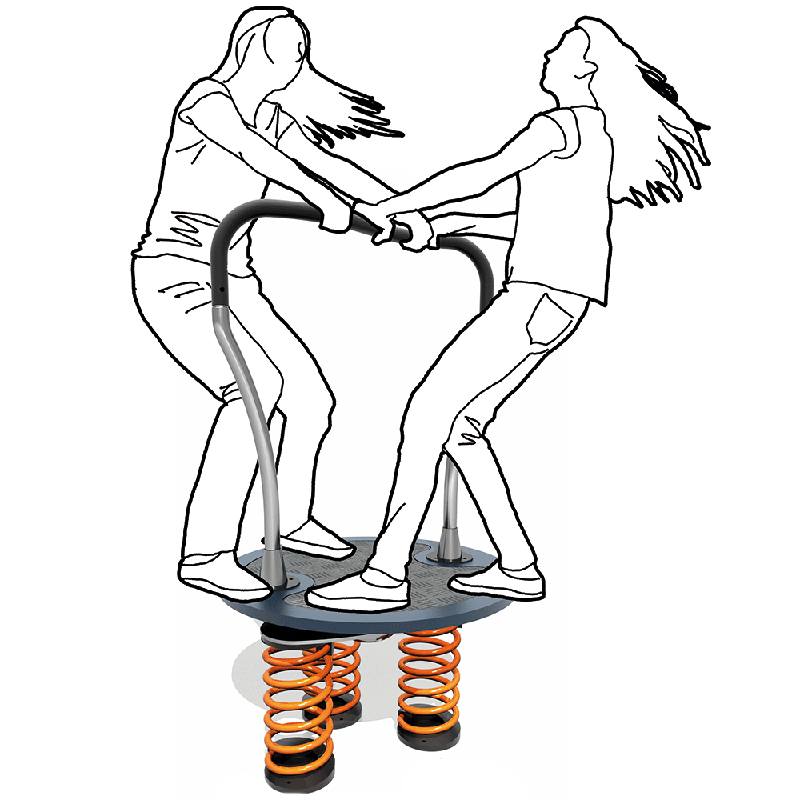

The platform is designed for use by up to 4 people. With
additional people, there is the challenge of synchronising
movements before performing their very own rodeo show.

This play equipment is accessible from 8 years from our Dynamic range. It can accommodate up to 4 users.

The size of the module is: 0.84 m length, 0.84 m width, 1.50 m. high. The free fall height (FFH) is 0.55 m.

4 sports activities

balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
meeting
Meeting x1
By playing together, children learn how to interact with other personalities and behaviors.
swinging
Swinging x1
To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.
rotating
Rotating x1
Turning allows the child to experience thrills, to experience speed and to feel the exhilaration of their head and body turning uncontrollably.

4 ludo-sport motivations

Sensations
Sensations
Sharing
Sharing
Diversity
Diversity
Challenge
Challenge

Specifications

Age range: 8+
Number of users: 4 users
FFH : 0.55 m
Size: 0.84 x 0.84 x 1.50 m

Equipment installation

Number of installers: 2
Installation time: 01:00:00
Surface: 23.00 m2
Total weight: 114.43 kg
Weight of the heaviest element: 105.95 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - Dynamic Structures - Rodeoboard - J3501
Video - Dynamic Structures - Rodeoboard - J3501
Side view
Side view
View from above
View from above

Materials

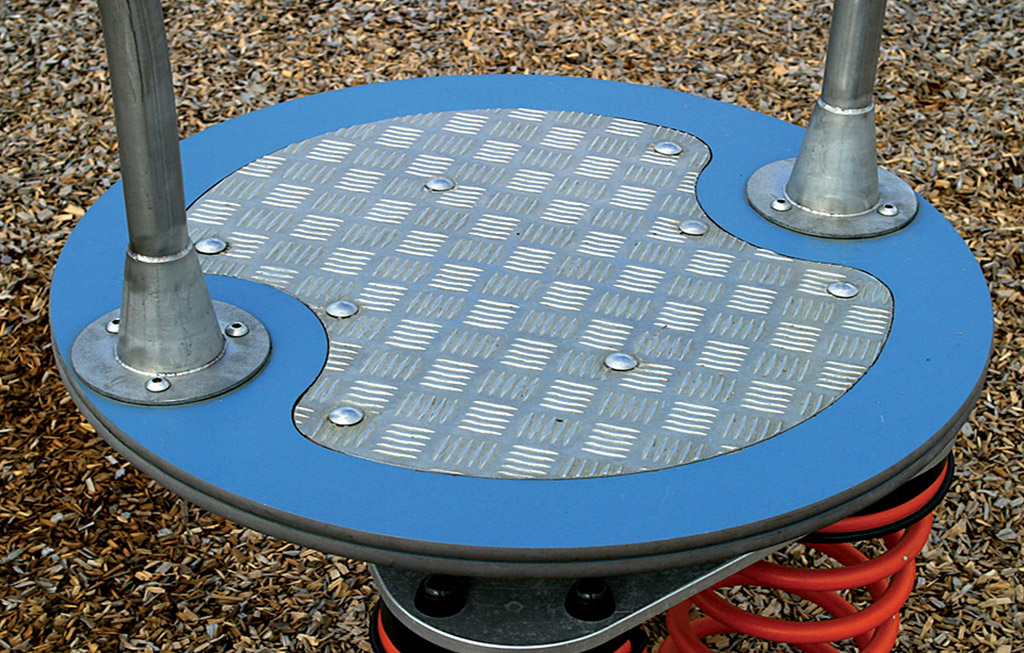

The rotating platform

The rotating platform is made up of 2 HPL discs that give the equipment an extremely solid base. A non-slip channelled aluminium surface provides a good hold during... rotation. Read more

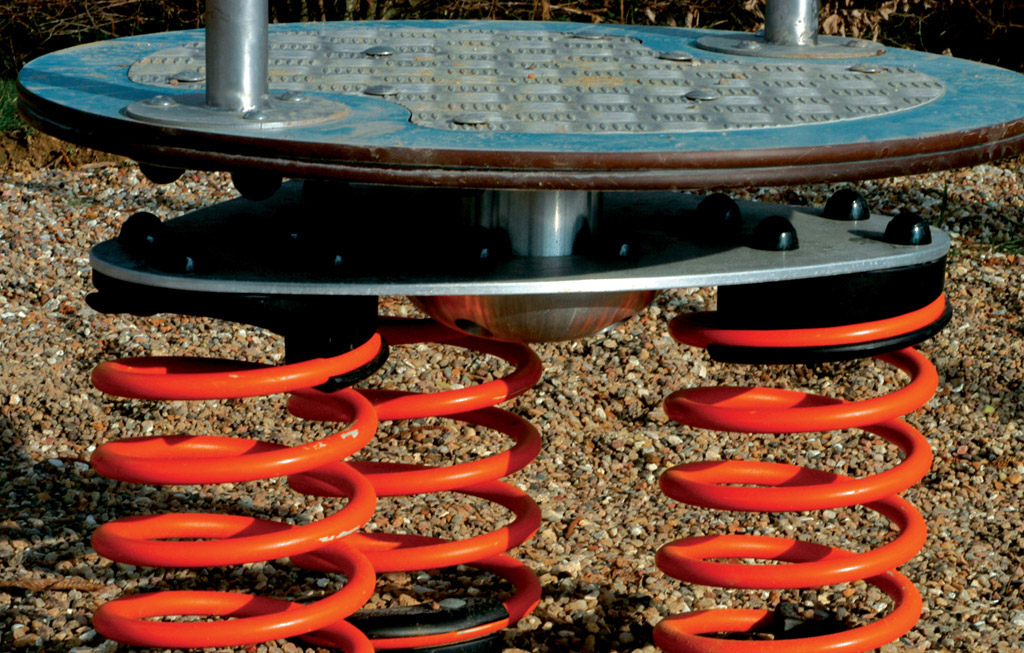

The oscillation system

The oscillation system is based on the interaction of three highly resistant steel springs (35SCD6 grade steel) fitted with anti-trap retention components.

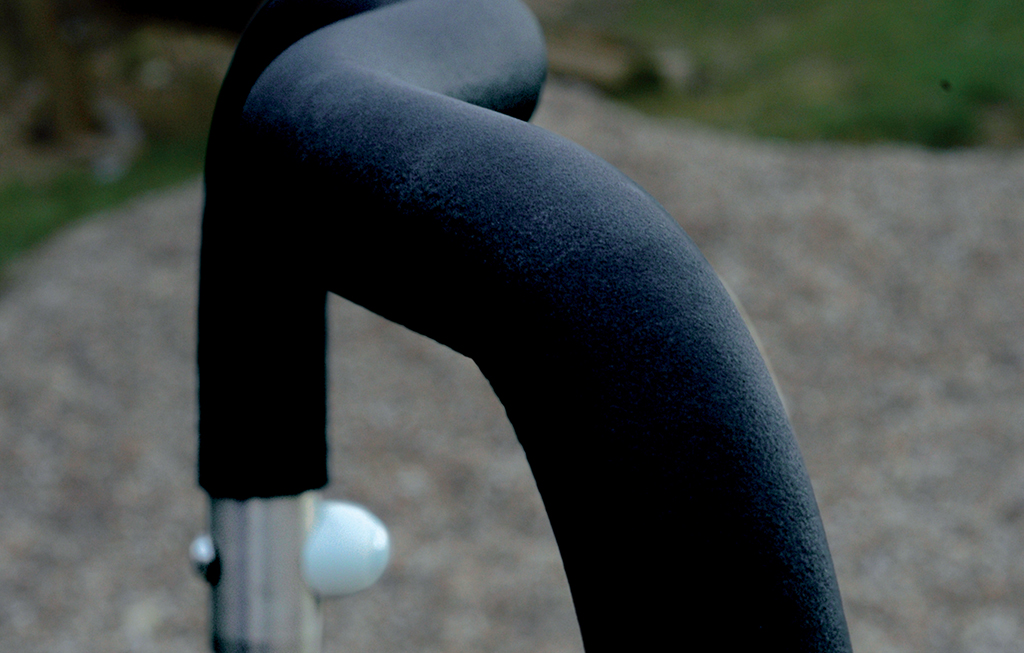

The grip section

The grip section of the stainless steel handle is overmoulded with rubber to give a good grip.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
