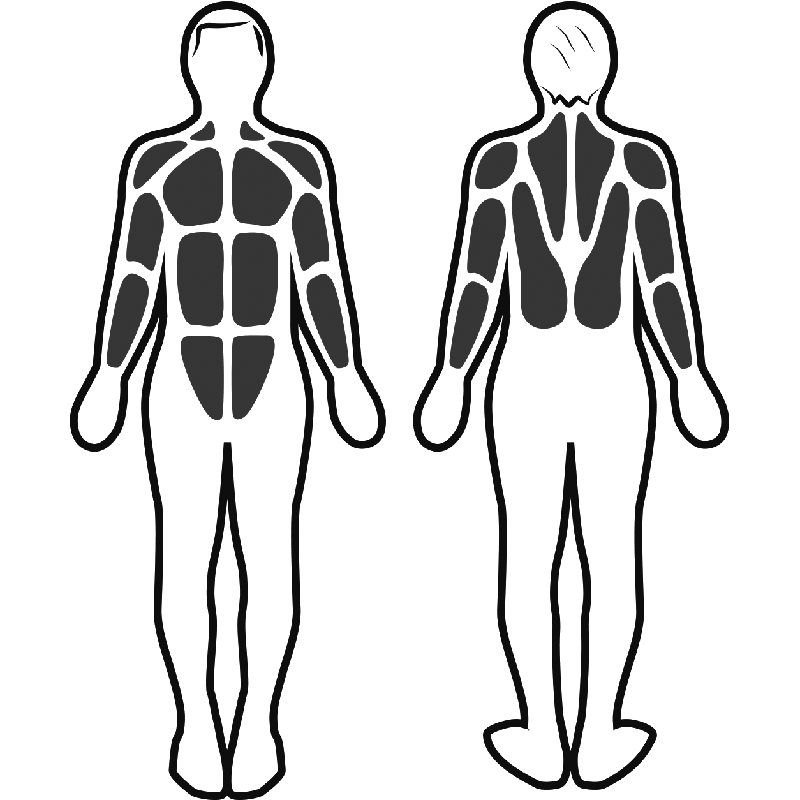

Muscle stimulation

Muscle stimulation

Movement

Movement

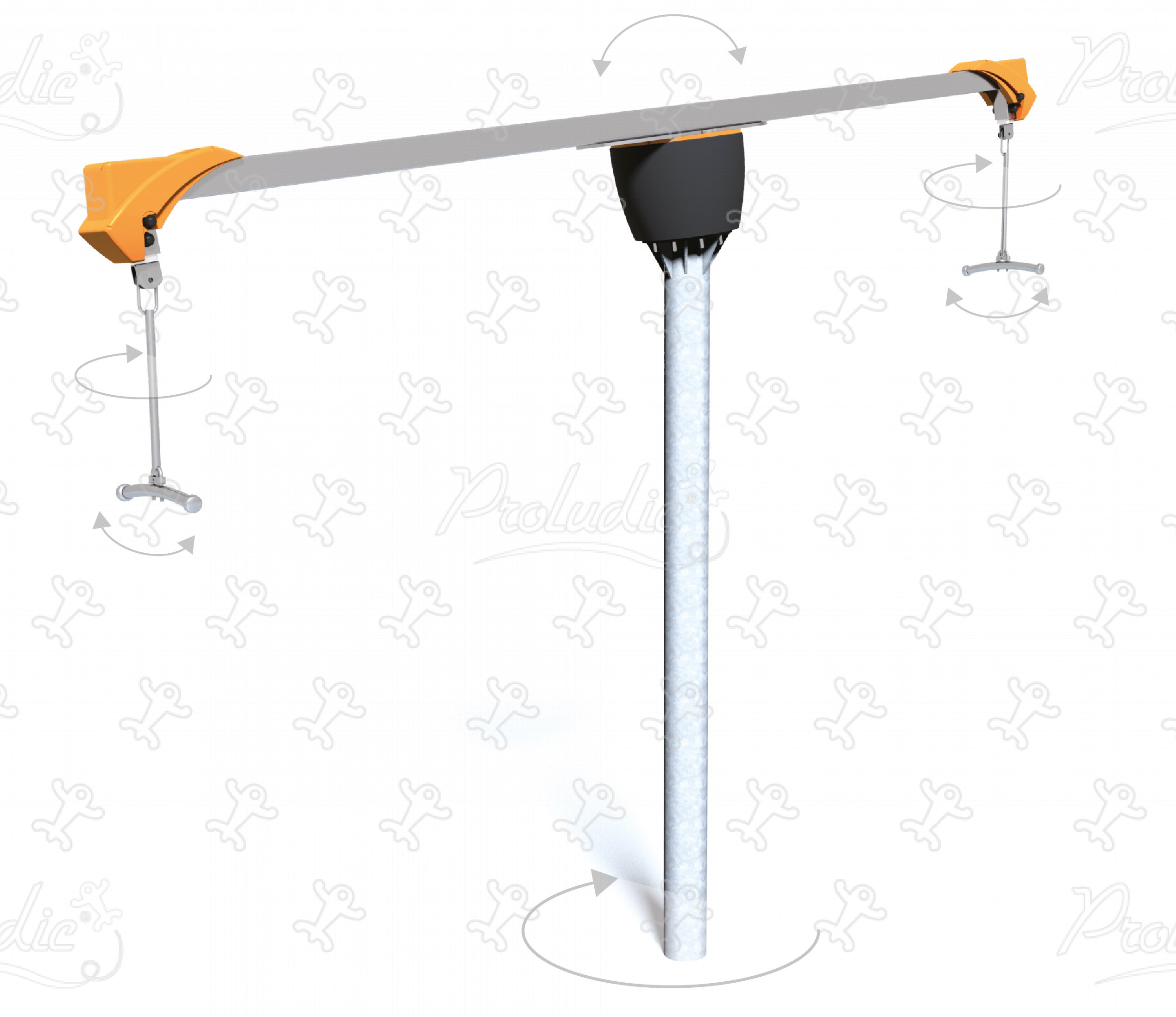

Dynamic Structures - Turnfly - J3504-N

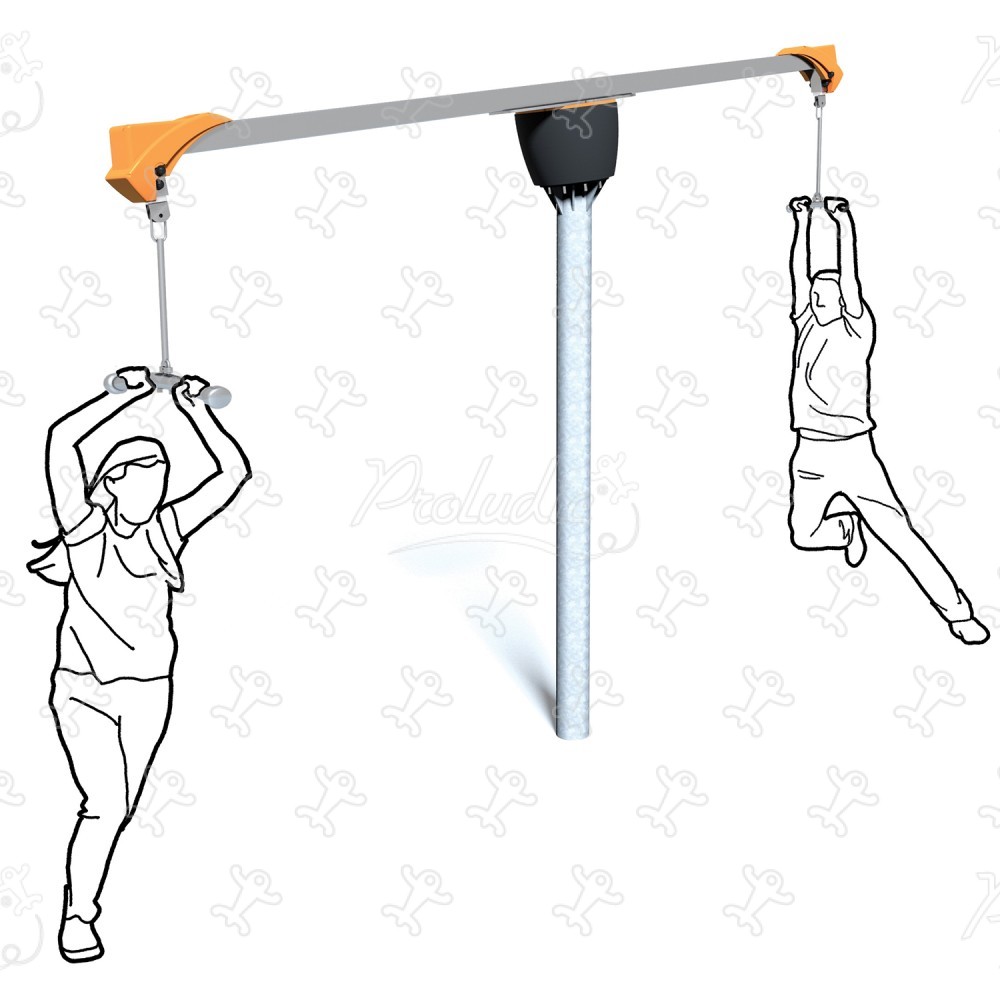

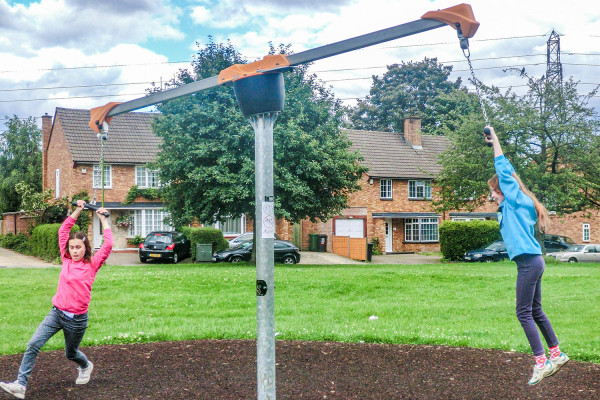

The Turnfly gives you the impression of floating up to the clouds…

Inspired by acrobatic sports such as skydiving, kite-surfing, or
wing foiling, the movement of this structure is initiated by the
two users running at speed until they take off from the ground.

The centrifugal force then requires a firm grip on the handles,
which have a 360° rotation system that increases the sensation
of being carried along by the wind.

This play equipment is accessible from 12 years from our Dynamic range. It can accommodate up to 2 users.

The size of the module is: 3.66 m length, 0.35 m width, 3.01 m. high. The free fall height (FFH) is 0.90 m.

5 sports activities

balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
meeting
Meeting x1
By playing together, children learn how to interact with other personalities and behaviors.
hanging
Hanging x1
This fun activity allows you to explore a new way of playing, of managing space and the void below.
swinging
Swinging x1
To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.
rotating
Rotating x1
Turning allows the child to experience thrills, to experience speed and to feel the exhilaration of their head and body turning uncontrollably.
Show more

4 ludo-sport motivations

Sensations
Sensations
Sharing
Sharing
Diversity
Diversity
Challenge
Challenge

Specifications

Age range: 12+
Number of users: 2 users
FFH : 0.90 m

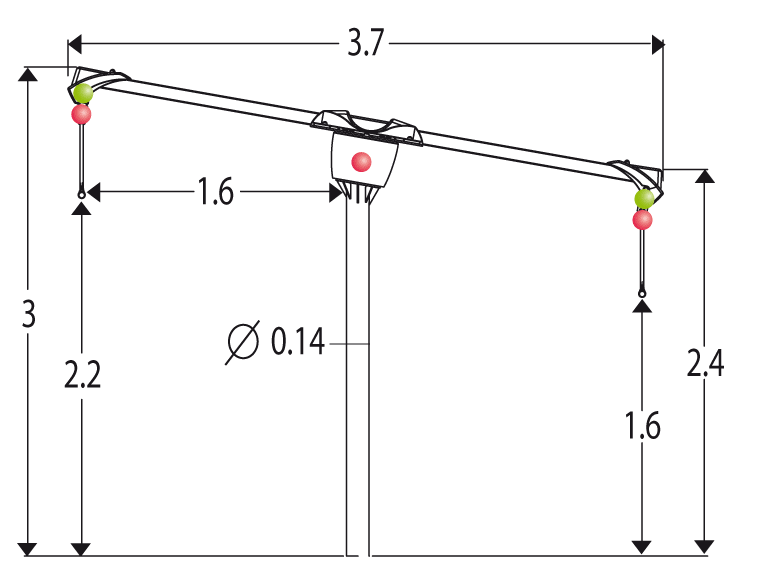

Size: 3.66 x 0.35 x 3.01 m

Equipment installation

Number of installers: 2
Installation time: 03:00:00
Concrete volume: 0.60 m3
Surface: 59.00 m2
Total weight: 190.26 kg
Weight of the heaviest element: 115.01 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - Dynamic Structures - Turnfly - J3504-N
Video - Dynamic Structures - Turnfly - J3504-N

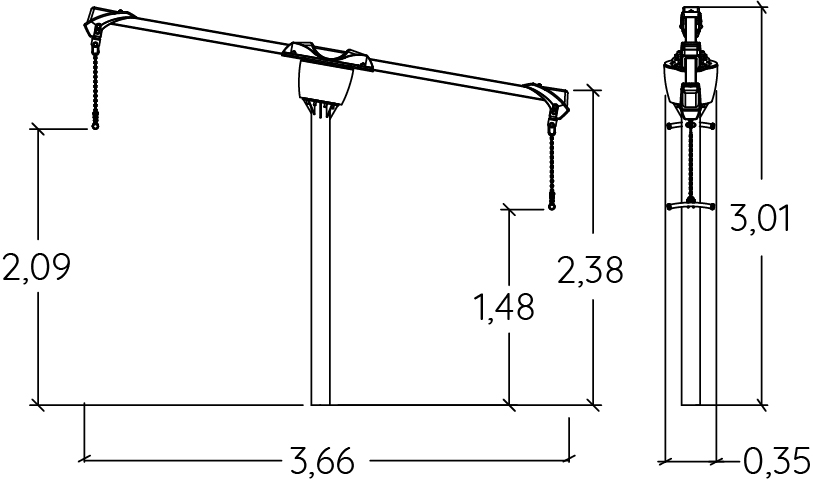

Side view
Side view

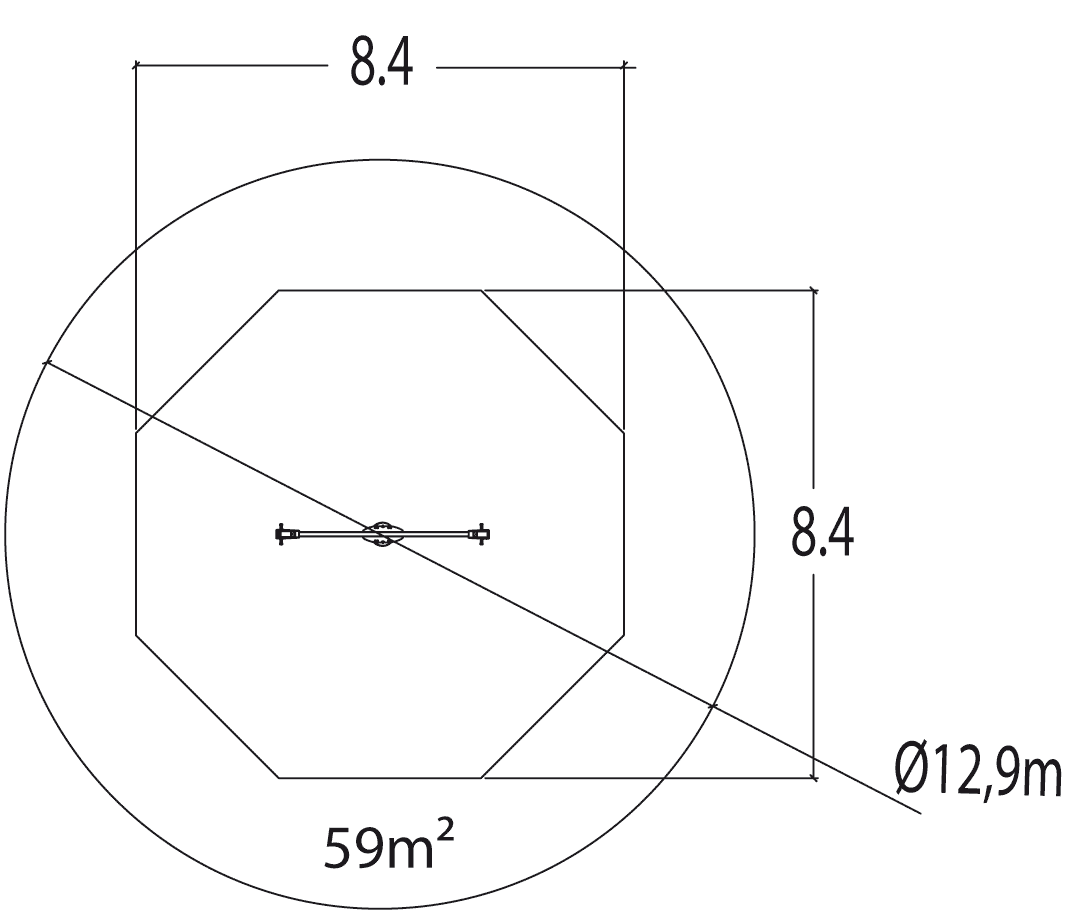

View from above
View from above

Materials

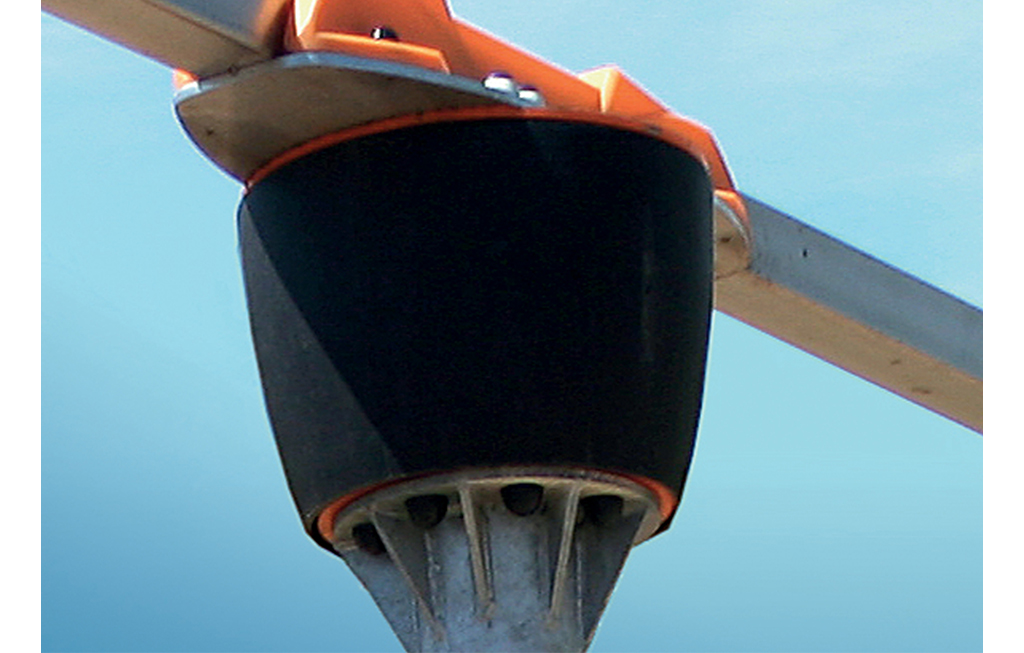

The 75x75mm stainless steel arm

The 75x75mm stainless steel arm is held on the rotary system by a double fixing element. The unit as a whole is bolted to the plate on the galvanised steel post (ø 140mm).

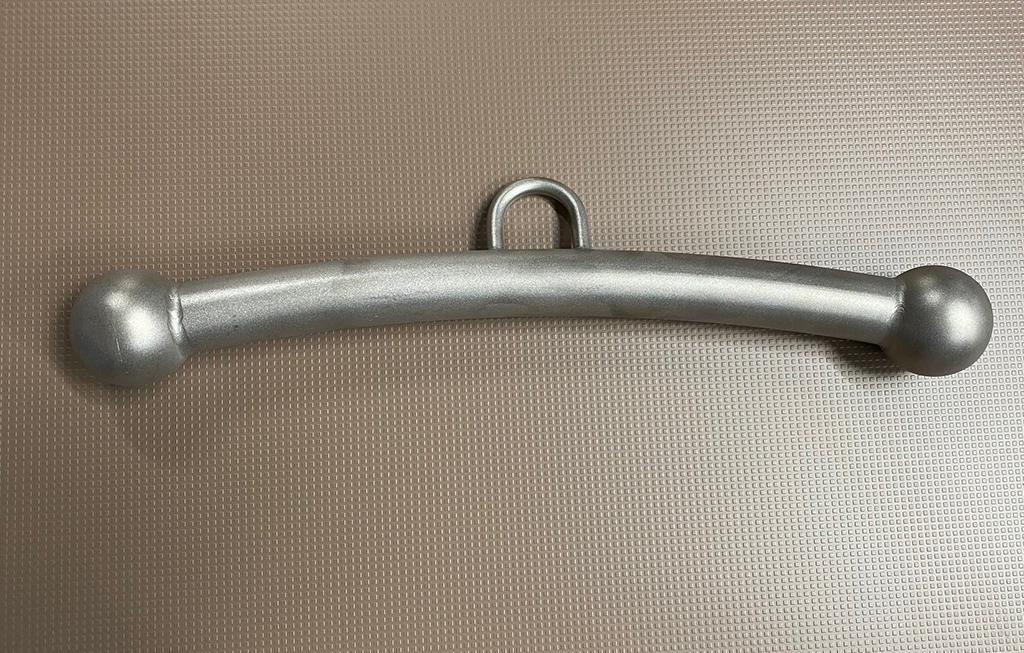

The handle

The handle is made of of stainless steel.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
