J3505 - Playgrounds, Sport and fitness - Dynamic Structures, Moving equipment

We have created the reference J3505 in our "Dynamic Structures" range. This module is accessible from 12 years. It can accommodate up to 2 users.

The size of the module is: 5.40 m wide, 0.72 m. deep, 3.40 m. high. The free fall height (FFH) is 2.35 m.

5 play functions

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Rotating x1

Turning allows the child to experience thrills, to experience speed and to feel the exhilaration of their head and body turning uncontrollably.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Hanging x1

This fun activity allows you to explore a new way of playing, of managing space and the void below.

Swinging x1

To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.

Specifications

Age range:	12+
Number of users:	2 users
FFH :	2.35 m
Size:	5.40 x 0.72 x 3.40 m

Equipment installation

Number of installers:	2
Installation time:	03:00:00
Concrete volume:	0.60 m3
Surface:	88.00 m2
Total weight:	292.44 kg
Weight of the heaviest element:	116.30 kg

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification

Materials

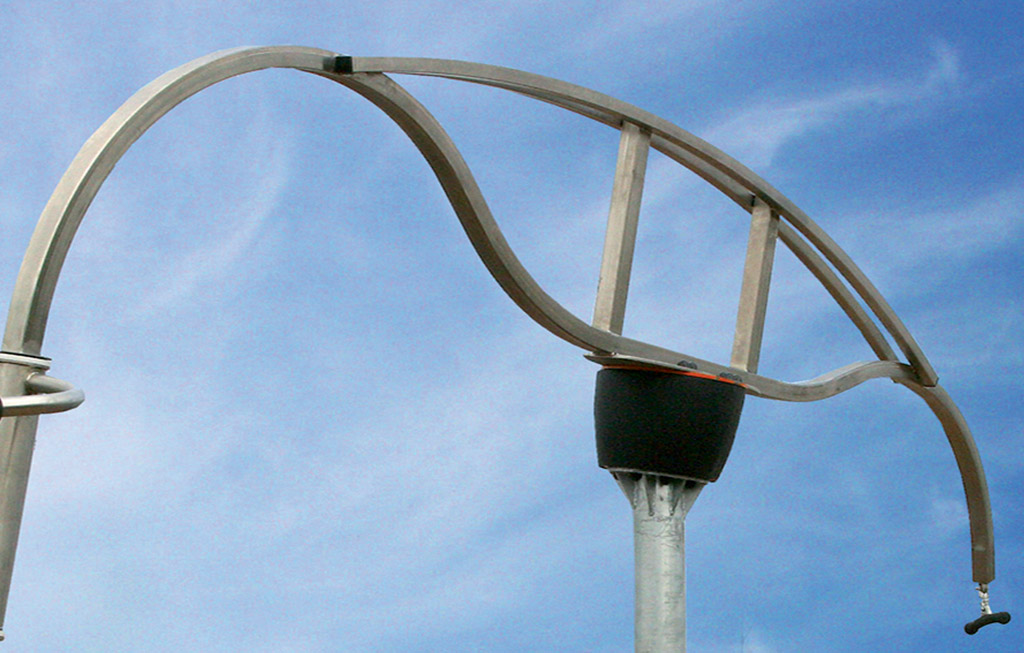

The supporting arm is made of a 60x60mm stainless steel tube with twin curves. The twin reinforcing struts give the supporting structure its rigidity. The unit as a... whole is bolted to the plate on the galvanised steel post (ø 140mm). Read more

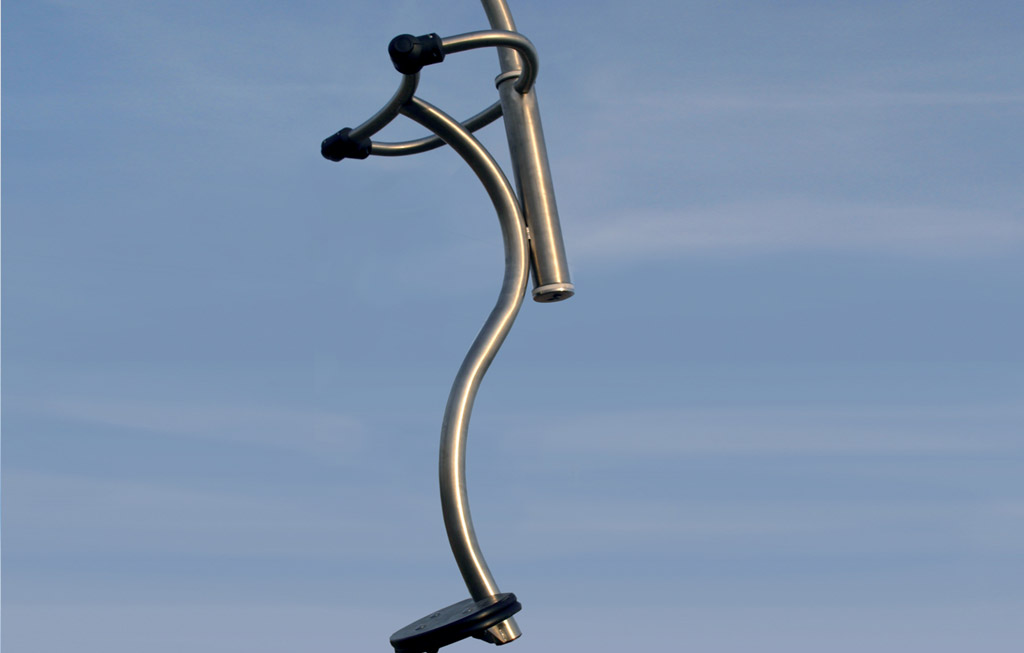

The platform is made with a non-slip rubber overmould. Its rotation system is inserted in a structure made entirely of stainless steel (ø 110mm).

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
