Diabolo - J38104

We have created the reference J38104 in our "Diabolo" range. This play equipment is accessible from 3 years. It can accommodate up to 20 users.

The size of the module is: 5.92 m length, 4.71 m width, 2.70 m. high. The free fall height (FFH) is 2.40 m.

15 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x3

By playing together, children learn how to interact with other personalities and behaviors.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Tactile stimulation x1

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x3

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Thinking x1

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

Role play x1

Role plays promote the child's intellectual and social skills.

Specifications

Age range:	3+
Number of users:	20 users
FFH :	2.40 m
Size:	5.92 x 4.71 x 2.70 m

Equipment installation

Number of installers:	2
Installation time:	19:00:00
Concrete volume:	0.45 m3
Surface:	51.50 m2
Total weight:	433.39 kg
Weight of the heaviest element:	32.11 kg

Environmental Indicators

Repairability

9.43 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

J38104 playgrounds multiplay equipment diabolo image 3d

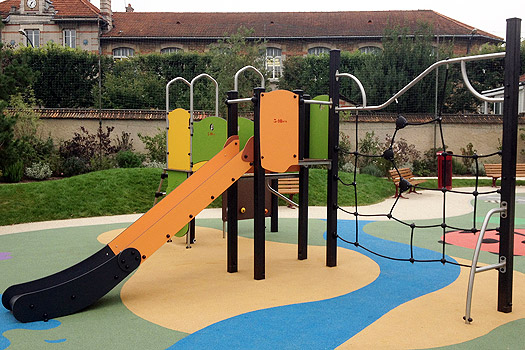

J38104 playgrounds multiplay equipment diabolo image photo

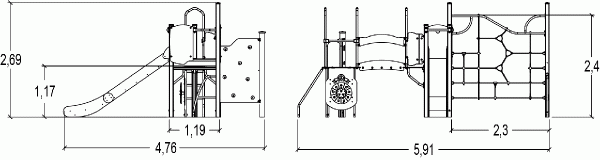

J38104 playgrounds multiplay equipment diabolo image side view

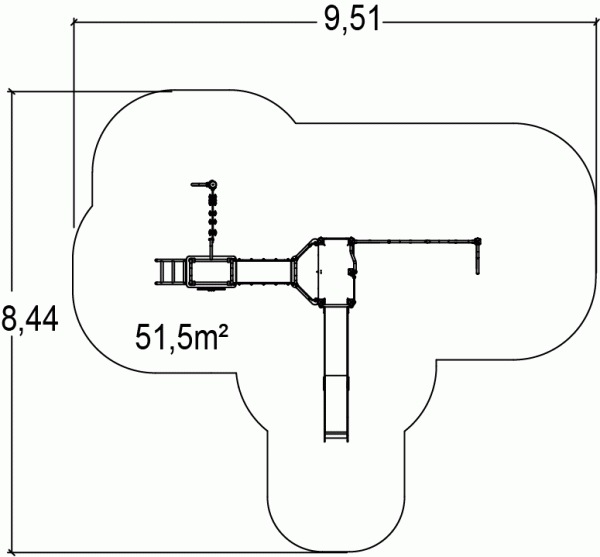

J38104 playgrounds multiplay equipment diabolo image view from above

Materials

The 95x95mm and 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
