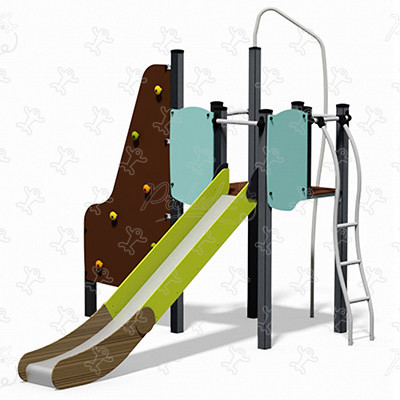

We have created the reference J38113-C in our "Diabolo" range. This play equipment is accessible from 3 years. It can accommodate up to 14 users.

The size of the module is: 4.16 m length, 2.83 m width, 3.10 m. high. The free fall height (FFH) is 2.60 m.

Other finishes available

5 play functions

climbing
Climbing x1
Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.
sliding
Sliding x2
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x1
By playing together, children learn how to interact with other personalities and behaviors.
climbing
Climbing x1
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Specifications

Age range: 3+
Number of users: 14 users
FFH : 2.60 m
Size: 4.16 x 2.83 x 3.10 m

Equipment installation

Number of installers: 2
Installation time: 18:00:00
Concrete volume: 0.30 m3
Surface: 40.00 m2
Total weight: 309.79 kg
Weight of the heaviest element: 33.87 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

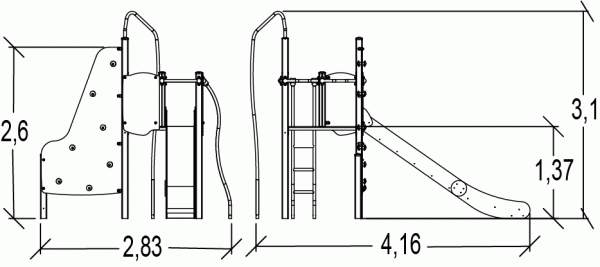

Side view
Side view

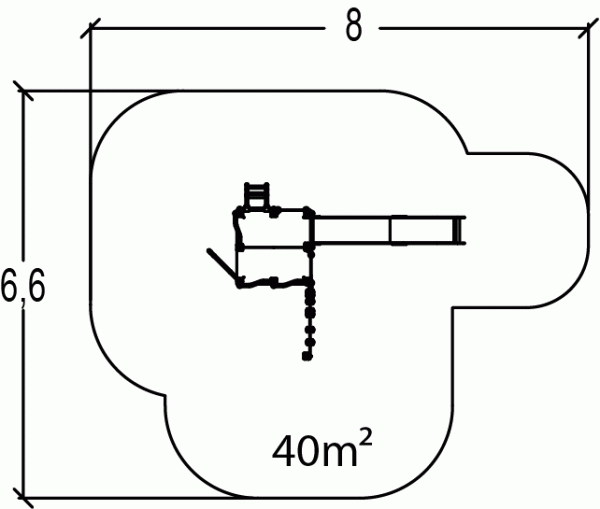

View from above
View from above

Materials

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform and the climbing wall

The platform and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The climbing holds

The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The sliding surface

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
