Diabolo - J38118-C

We have created the reference J38118-C in our "Diabolo" range. This play equipment is accessible from 2 years. It can accommodate up to 25 users.

The size of the module is: 9.22 m length, 4.70 m width, 2.94 m. high. The free fall height (FFH) is 1.80 m.

Other finishes available

J38118

30 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Role play x2

Role plays promote the child's intellectual and social skills.

Sliding x2

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x4

By playing together, children learn how to interact with other personalities and behaviors.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x4

A great exercise for developing motor skills and abilities in young children while having fun.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Thinking x2

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

Tactile stimulation x4

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Climbing x4

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x4

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	2+
Number of users:	25 users
FFH :	1.80 m
Size:	9.22 x 4.70 x 2.94 m

Equipment installation

Number of installers:	2
Installation time:	30:00:00
Concrete volume:	0.60 m3
Surface:	62.50 m2
Total weight:	759.97 kg
Weight of the heaviest element:	46.43 kg

Environmental Indicators

Repairability

9.43 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

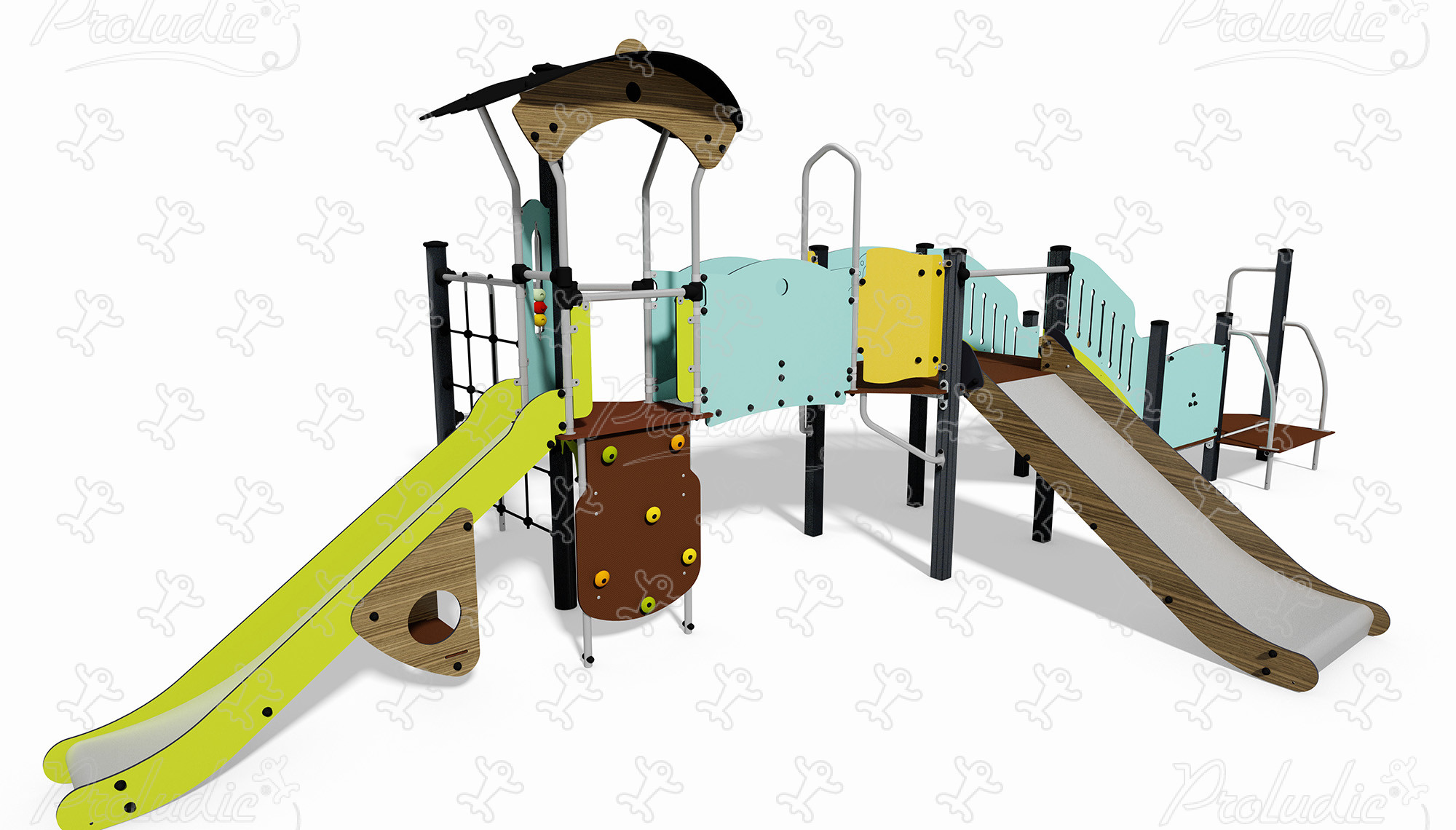

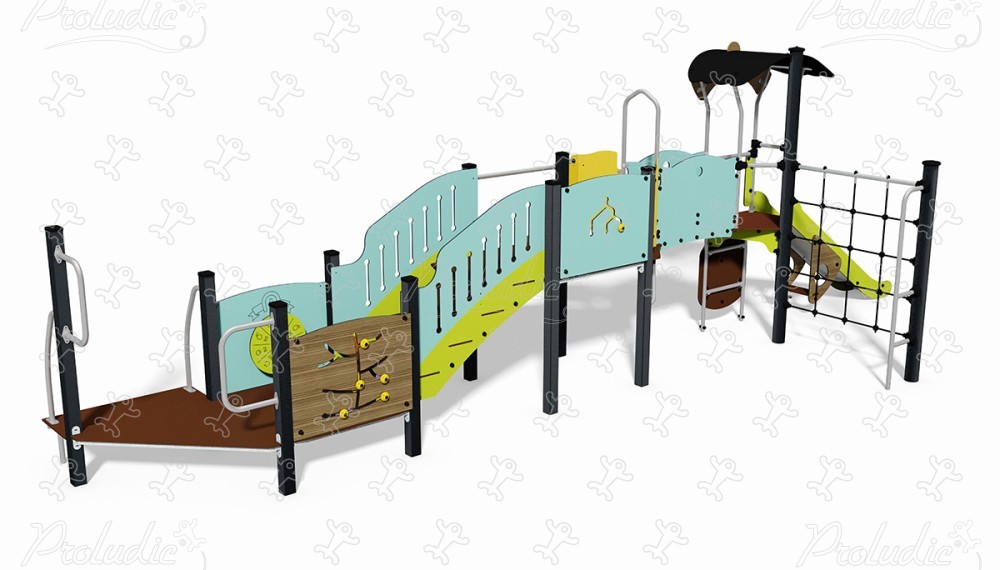

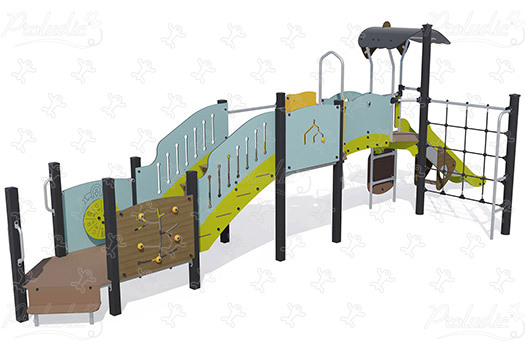

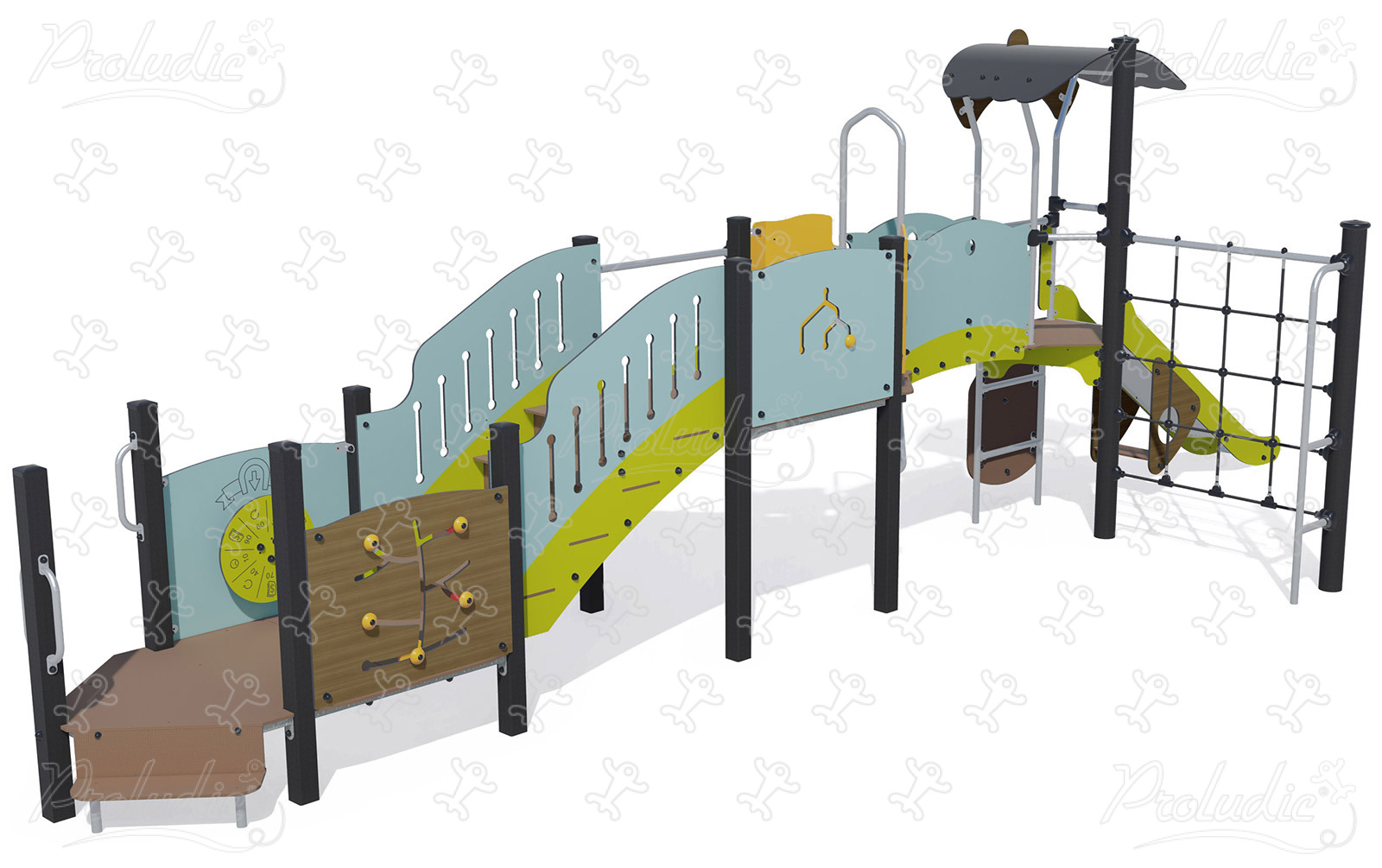

J38118-C playgrounds multiplay equipment diabolo image 3d

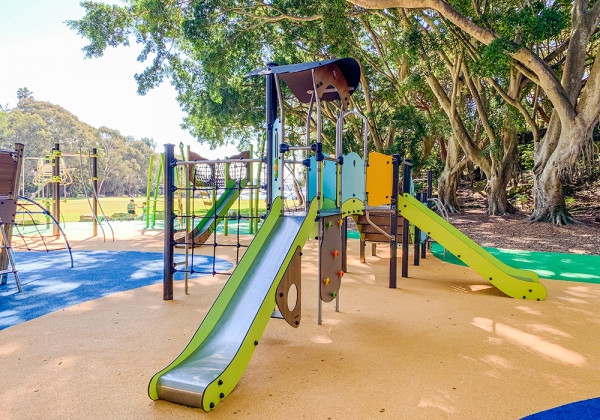

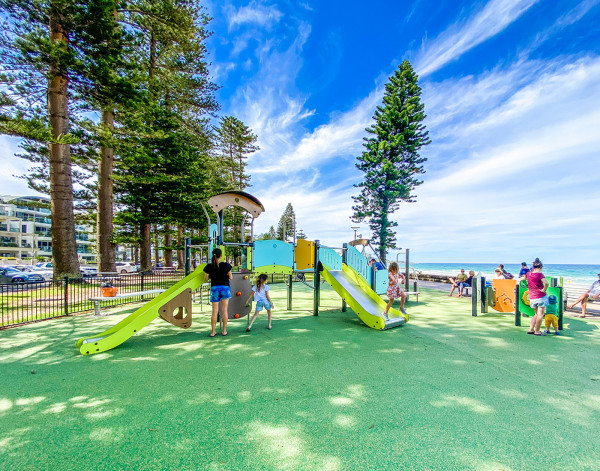

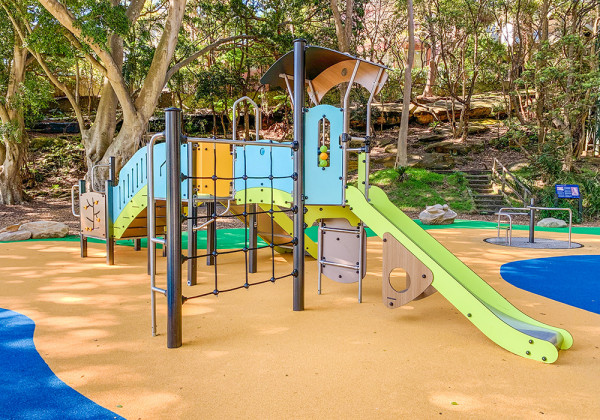

J38118-C playgrounds multiplay equipment diabolo image photo

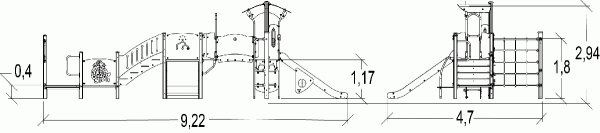

J38118-C playgrounds multiplay equipment diabolo image side view

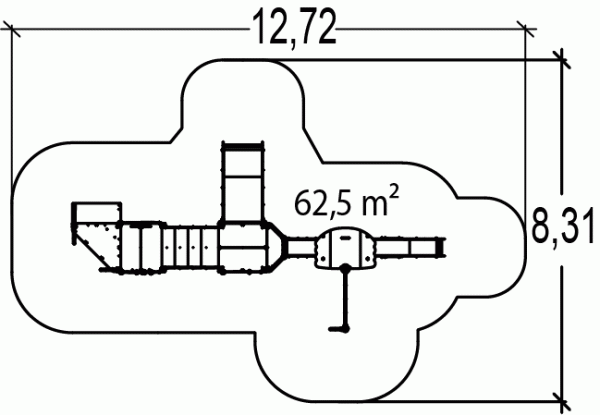

J38118-C playgrounds multiplay equipment diabolo image view from above

Materials

The 95x95mm and 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The roof is made of 10mm thick polyethylene plates.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
